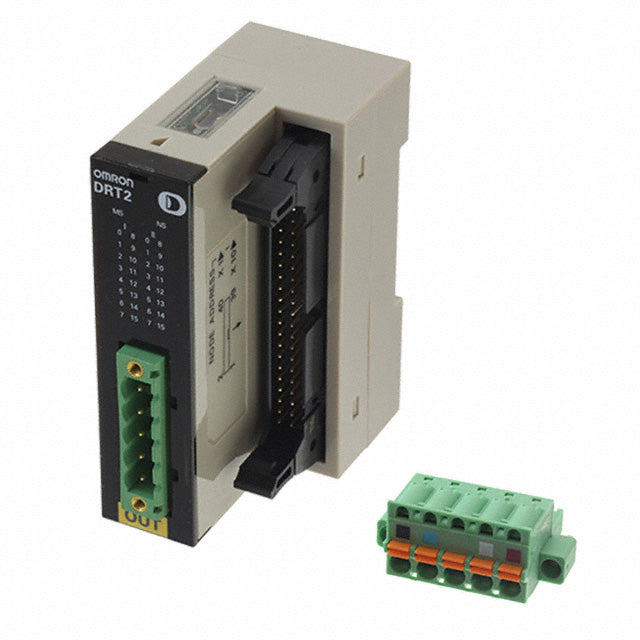

DRT2-OD32ML | Omron 32-Point NPN Transistor Output Terminal with MIL Connector for DeviceNet
- Regular price
- $935.00
- Sale price
- $935.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DRT2-OD32ML
Description
The Omron DRT2-OD32ML is a 32-point transistor output slave connector terminal designed for MIL cable connections in DeviceNet systems. With NPN output configuration and fast switching times, it offers reliable signal transmission for industrial automation tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | DRT2-OD32ML |
| Subcategory | Digital Output Modules |
| Product Type | Slave connector terminal |
| Unit Features | MIL Connector Terminals with Transistors |
| I/O Connection Method | MIL connector |
| Internal I/O Common | NPN |
| Output Points | 32 points |
| Rated Output Current | 0.3 A/point, 4 A/common |
| Residual Voltage | 1.2 V max. |
| Leakage Current | 0.1 mA max. |
| ON Delay Time | 0.5 ms max. |
| OFF Delay Time | 1.5 ms max. |
| Communications Current Consumption | 120 mA max. |
| Mounting Mode | DIN rail (35 mm track) |
| Weight | 0.1 kg |
Information About DRT2-OD32ML
The DRT2-OD32ML is part of Omron’s DRT2 series, developed for high-density output handling in DeviceNet-based control networks. It features a MIL connector interface, allowing quick and secure attachment of I/O cables while supporting 32 NPN transistor outputs. Each output can deliver up to 0.3 A, with a maximum of 4 A per common, ensuring robust performance across multiple devices. Designed for 35 mm DIN track mounting, the unit delivers fast response with minimal delay, offers low residual voltage and leakage current, and consumes only 120 mA from the communications line. Its compact 0.1 kg housing makes it suitable for panel integration where space efficiency and reliable connectivity are priorities.
Key Features:
-
32 NPN Transistor Outputs: Handles multiple load control points for efficient signal distribution in automation systems.
-
MIL Connector Interface: Enables quick, secure cable attachment and streamlined installation.
-
Per-Point Output Capacity: Delivers up to 0.3 A per output with a 4 A common limit for consistent performance.
-
Fast Switching Response: ON delay of 0.5 ms and OFF delay of 1.5 ms supports high-speed control applications.
-
Low Residual Voltage: Maintains a maximum of 1.2 V for improved signal integrity.
-
Minimal Leakage Current: Rated at only 0.1 mA to prevent unintended device activation.
-
Compact and Lightweight: Weighs only 0.1 kg for easy integration into tight control panel spaces.
-
Low Communication Power Demand: Consumes up to 120 mA from the network, reducing system load.
-
DIN Rail Mounting: Ensures quick and secure installation on standard 35 mm tracks.
The DRT2-OD32ML delivers the reliability and precision required for high-density output control in DeviceNet-based automation systems.
