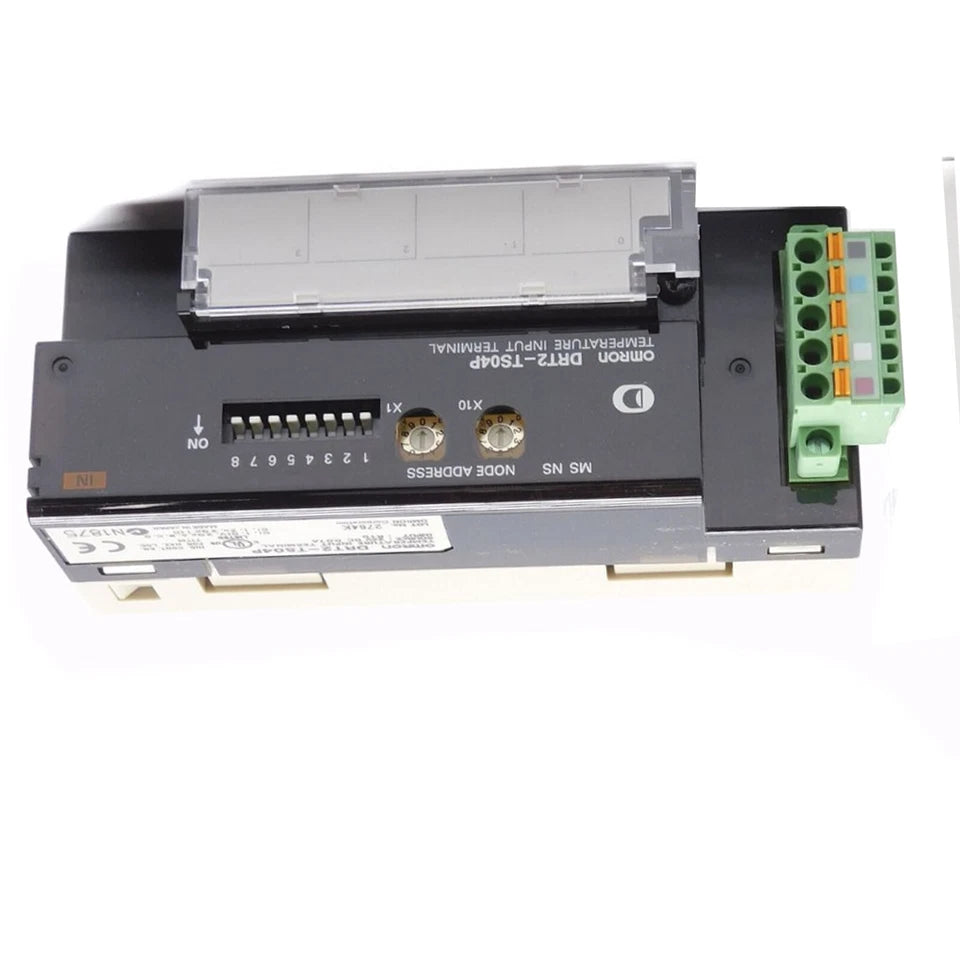

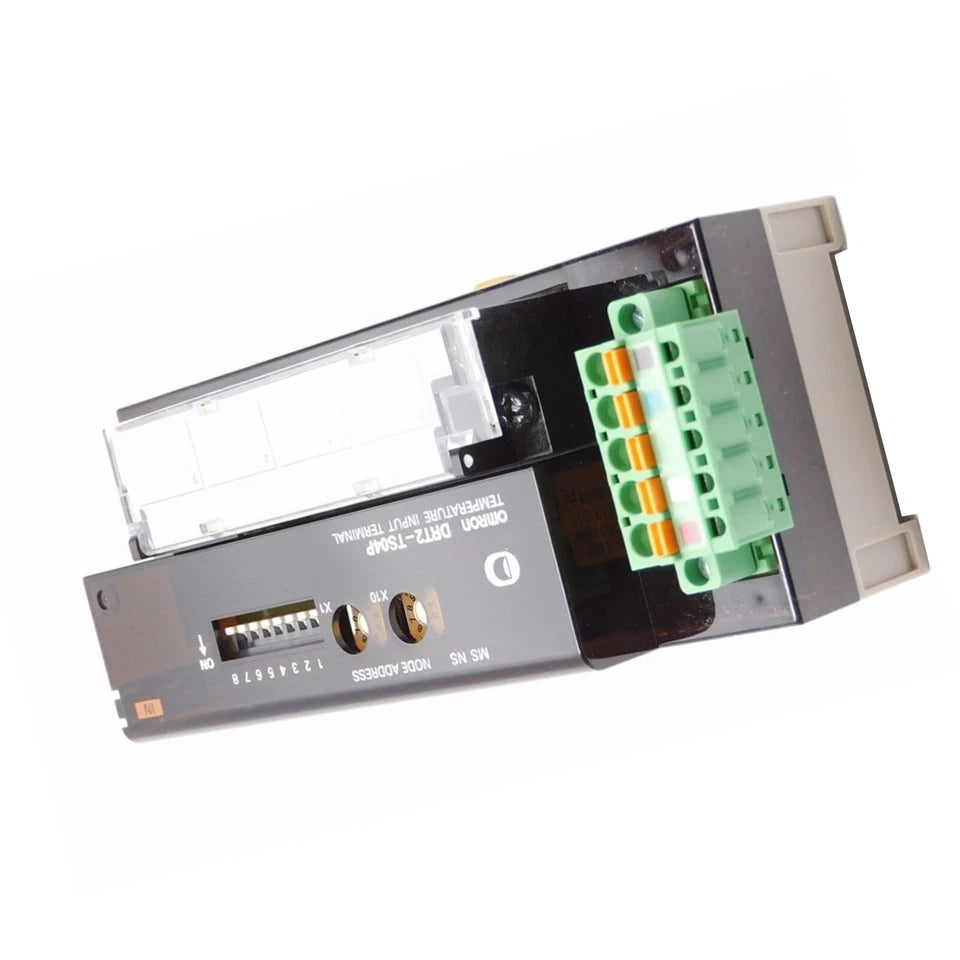

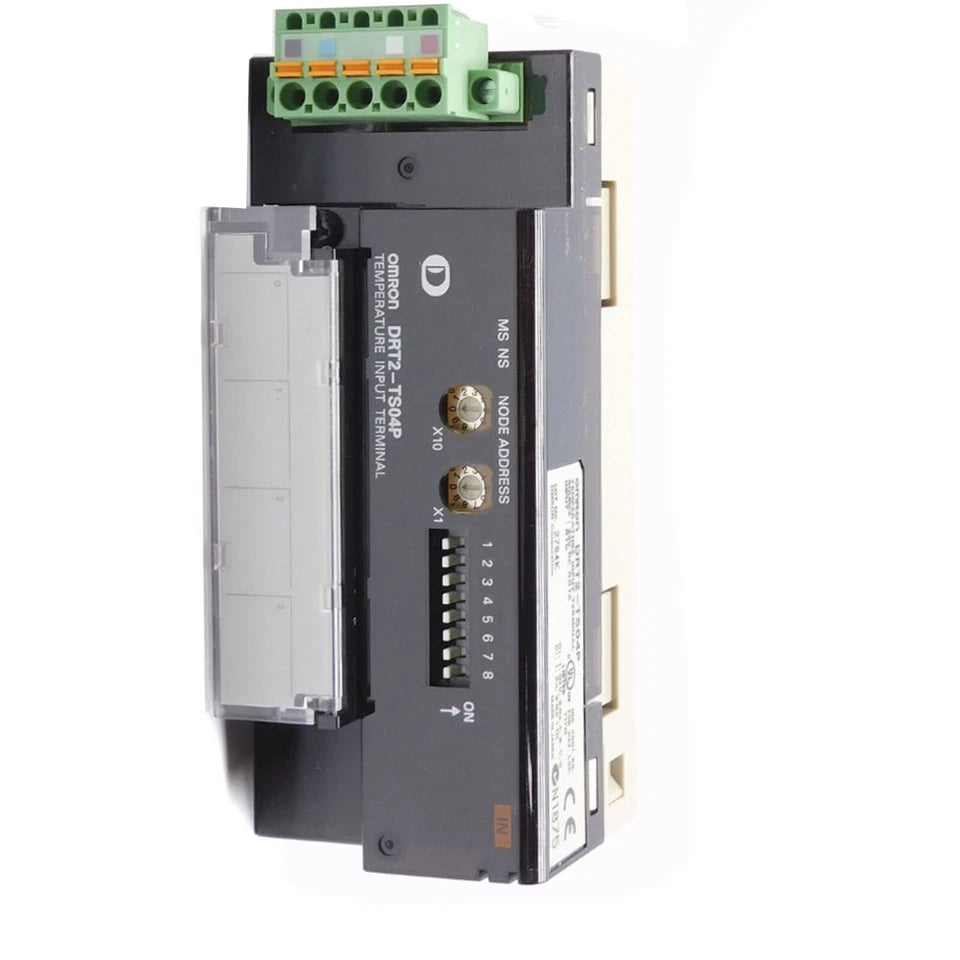

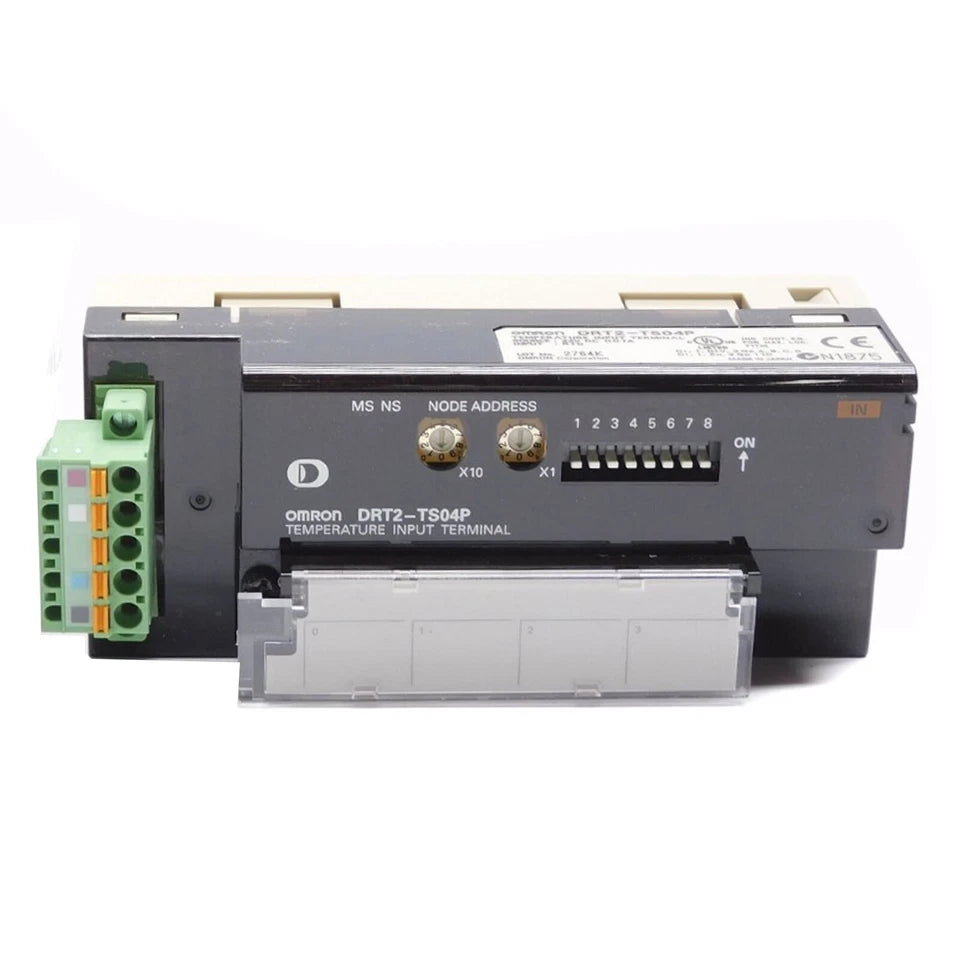

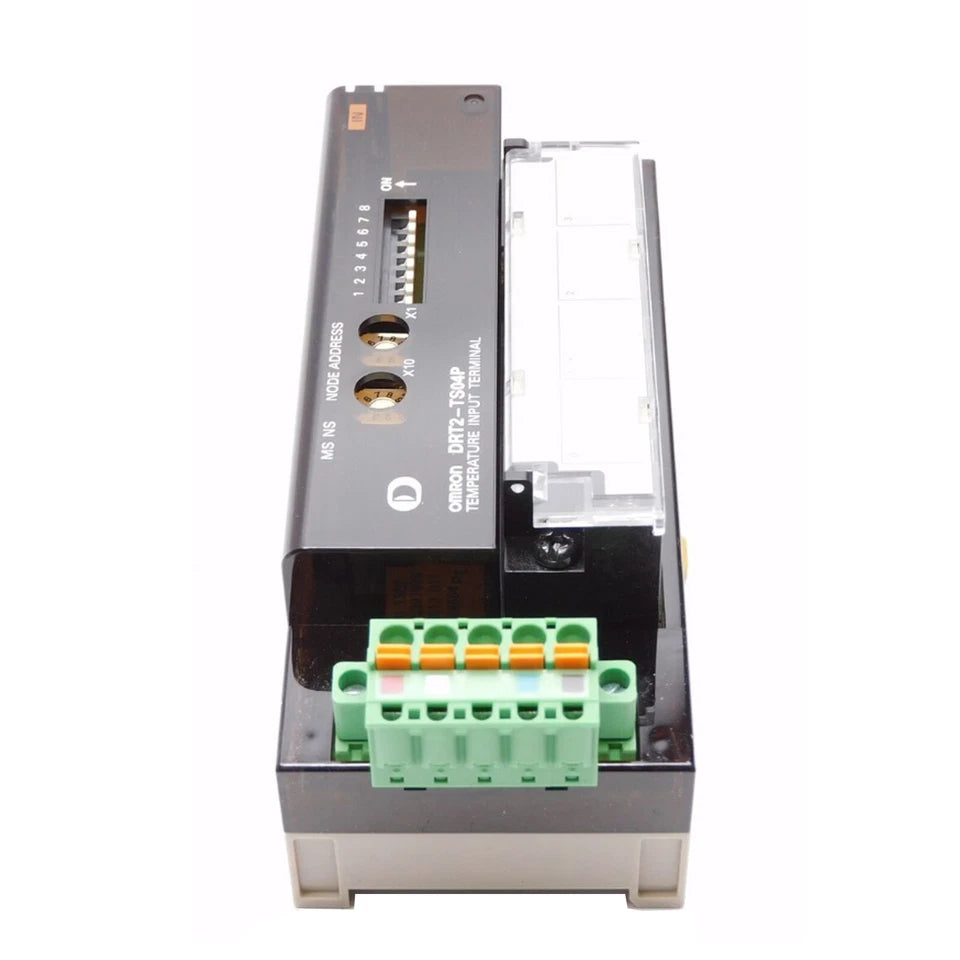

DRT2-TS04P | Omron 4-Channel Platinum Resistance Thermometer Input Module
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DRT2-TS04P
Description
The Omron DRT2-TS04P is a DeviceNet temperature input module designed for precise measurement using platinum-resistance thermometers. With four analog inputs and 10-bit resolution, it provides accurate data acquisition for industrial temperature monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | DRT2-TS04P |
| Subcategory | Temperature Input Modules |
| Series | DRT |
| Product Type | DeviceNet resistance thermometer input unit |
| Degree of Protection (IP) | IP20 |
| Communication Protocol | DeviceNet |
| Communication Port(s) | DeviceNet Slave |
| Mounting Mode | DIN rail |
| I/O Type | Analog |
| Number of Analog Inputs | 4 |
| Temperature Input Type | JPt100, Pt100 |
| Analog Input Resolution | 10 Bit |
| Number of Analog Outputs | 0 |
| Type of Terminals | Screw |
| Compliance | RoHS |
| Dimensions (H x W x D) | 50 × 115 × 49.7 mm |
| Weight | 160 g |
Information About DRT2-TS04P
The DRT2-TS04P is part of Omron’s DRT series, purpose-built for integrating temperature sensing into DeviceNet-based control systems. This module supports four analog inputs for platinum-resistance thermometers, specifically JPt100 and Pt100 types, delivering reliable readings with 10-bit resolution. Designed for DIN rail mounting, it uses screw-type connections for secure and durable wiring in industrial environments. The unit operates as a DeviceNet Smart Slave, enabling seamless communication within distributed automation architectures, and complies with RoHS standards while offering IP20 protection for controlled installation areas.
Key Features:
-
Four Platinum-Resistance Thermometer Inputs: Supports JPt100 and Pt100 sensors for versatile industrial temperature monitoring.
-
High Measurement Accuracy: 10-bit resolution ensures reliable and consistent temperature readings across all channels.
-
DeviceNet Smart Slave Integration: Allows direct connection to DeviceNet networks for centralized data acquisition and control.
-
DIN Rail Mounting Capability: Facilitates fast installation and efficient panel organization.
-
Secure Screw Terminal Connections: Provides stable, vibration-resistant wiring in demanding environments.
-
Compact IP20 Housing: Suitable for control cabinets in protected industrial settings.
-
RoHS-Compliant Construction: Meets environmental compliance requirements without compromising performance.
-
No Analog Outputs: Dedicated to input measurement, ensuring optimized design for temperature sensing applications.
-
Lightweight, Space-Saving Design: Minimizes panel space usage while maintaining robust functionality.
The DRT2-TS04P delivers the reliability and precision required for accurate temperature data acquisition in industrial process control systems.
