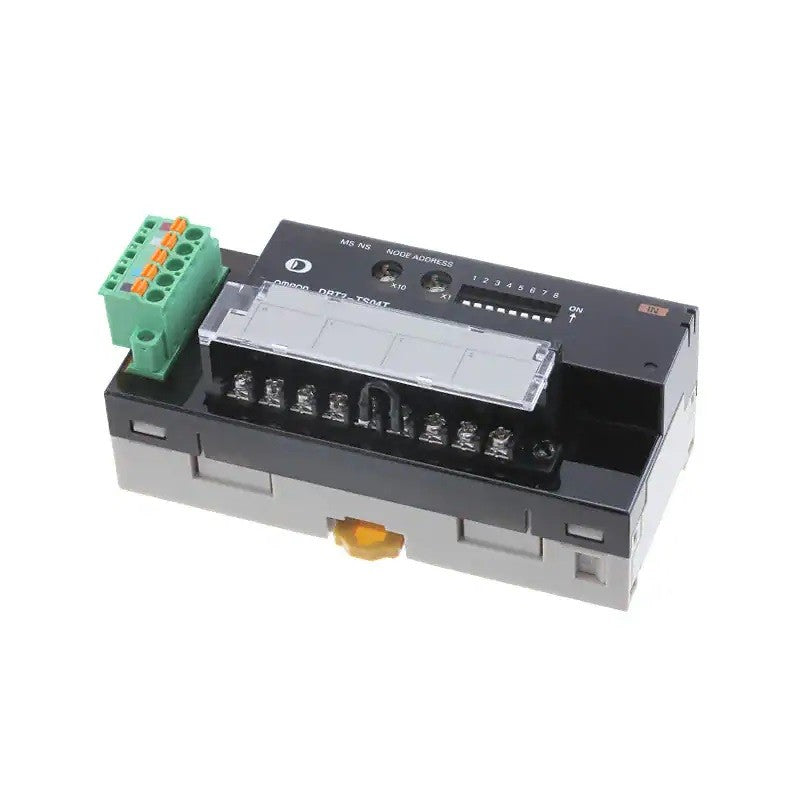

DRT2-TS04T | Omron 4-Point Thermocouple DeviceNet Input Module
- Regular price
- $727.00
- Sale price
- $727.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DRT2-TS04T
Description
The Omron DRT2-TS04T is a 4-point thermocouple input module from the DRT2 series, designed for accurate temperature measurement in DeviceNet systems. It offers 13-bit resolution and supports multiple thermocouple types for versatile industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Remote I/O Modules |
| Part Number | DRT2-TS04T |
| Subcategory | Thermocouple Input Modules |
| Series | DRT2 |
| Type of Module | Analog I/O |
| Module Type | Input/Output unit |
| Number of Analog Inputs | 4 |
| Temperature Input Types | B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U |
| Resolution (Inputs) | 13 Bit |
| Number of Analog Outputs | 0 |
| Degree of Protection | IP20 |
| Communication Protocol | DeviceNet |
| Communication Ports | DeviceNet Slave |
| I/O Connection Type | Screw terminal |
| Mounting Mode | DIN rail |
| Product Height | 50 mm |
| Product Width | 115 mm |
| Product Depth | 49.7 mm |
| Product Weight | 160 g |
Information About DRT2-TS04T
The DRT2-TS04T is part of Omron’s DRT2 series of DeviceNet-connected I/O modules, providing high-precision thermocouple input capabilities. Designed for integration into distributed control systems, it supports four independent thermocouple channels, compatible with a wide range of types including B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, and U. The module offers 13-bit resolution for reliable and accurate temperature monitoring in process control and automation environments. Built with IP20 protection, screw terminal connections, and DIN rail mounting, it ensures secure installation and dependable performance in industrial settings.
Key Features:
-
Four thermocouple input channels: Supports four independent temperature measurement points, allowing simultaneous monitoring of multiple processes or equipment areas.
-
High-resolution temperature sensing: 13-bit resolution enables precise and stable readings, improving control accuracy in critical applications.
-
Extensive thermocouple compatibility: Accepts multiple types including B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, and U, making it adaptable for a wide range of industrial standards and temperature ranges.
-
DeviceNet network integration: Functions as a DeviceNet slave unit, ensuring reliable communication and easy integration into distributed automation systems.
-
Industrial-grade protection: IP20-rated housing provides protection in control panel environments while ensuring compact installation.
-
Secure wiring connections: Screw terminal blocks offer robust and vibration-resistant connections, essential for industrial reliability.
-
Convenient DIN rail mounting: Designed for quick installation, removal, and repositioning within standard industrial enclosures.
The DRT2-TS04T delivers the reliability and precision required for multi-point, high-accuracy temperature monitoring in demanding process control and industrial automation systems.
