Product Description P/N: DS200ACNAG1ADD
Description
This DS200ACNAG1ADD Arcnet Connection Card was manufactured by General Electric, for the Mark V Control System Series.
Technical Specifications
Brand | General Electric |
Category | PLCs/Machine Control |
Part Number | DS200ACNAG1ADD |
Subcategory | Industrial Computer Board |
Series | Mark V |
Functional Description | ARCNET Connection Card |
Functional Acronym | ACNA |
PCB Coating | Normal Coating |
Functional Revision 1 | A |
Functional Revision 2 | D |
Artwork Revision | D |
Information About DS200ACNAG1ADD
The DS200ACNAG1ADD is an ARCNET (Attached Resource Computer Network) Card manufactured by General Electric for their Mark V series. The Mark V is part of GE’s successful Speedtronic line of gas/steam turbine management systems. This series has been managing heavy-duty turbine systems since the 1960s, with GE developing more reliable, advanced systems as technology allowed. The Mark V is built with triple-redundant backups on all critical controls and protection parameters and includes such features as built-in diagnostics and online maintenance.
The DS200ACNAG1ADD card provides a connection point for ARCNET LAN communications within the MKV system. Board signals travel on a pathway between the main processor board (LDCC,) through the ARCNET board, to the turbine control operator interface and back again. These signals travel via co-axial cables.

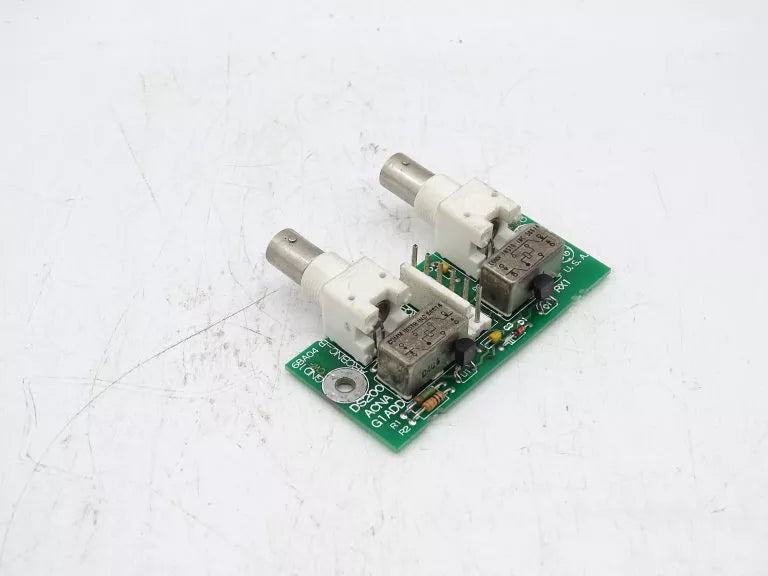

The DS200ACNAG1ADD is a small circuit board with few components. The board has four metal film resistors (R1 through R4,) three capacitors (C1 through C3,) and one diode. Two factory-drilled holes located on either side of the board have a metal washer inserted into their opening. These two openings are marked as GND1/GND2. Two relays are located near the bottom edge of the board. Both relays include a relay diagram on their top surface. Relay diagrams are visual representations of the relay logic that allows the relay to function.
The DS200ACNAG1ADD has three communications devices. This includes a vertical pin terminal connector with six pins that is placed in the very center of the board, as well as two BNC plugs (right-angled, female) that are placed with the openings off the top edge of the board. These plugs will accept the LAN coaxial cables.
