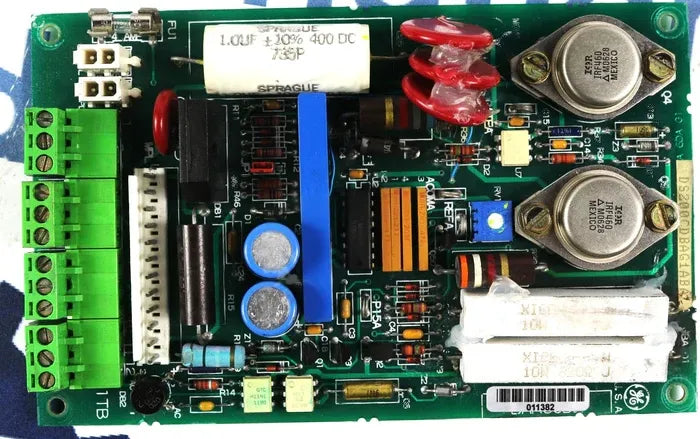

DS200CDBAG1A | General Electric Contactor Driver Board

Description

The DS200CDBAG1A Contactor Driver Board was manufactured by General Electric, for the Mark V Series of turbine control systems.

Technical Specifications

Information About DS200CDBAG1A

The General Electric Mark V DS200CDBAG1A is a specialized drive board engineered to perform as a Contactor Driver Board (CDBA) in industrial drive systems. This board, part of the Mark V and DC2000 Adjustable Speed Drives series, is designed to manage and control contactors, which are essential components in drive systems, ensuring smooth and efficient operation.

The DS200CDBAG1A falls under the Drives category, specifically within the Drive Board subcategory. It is built to handle the rigorous demands of industrial applications, providing reliable control for contactors within adjustable speed drives. Its functional role is crucial for maintaining the proper operation of drive systems, which are used in various industries to control the speed and torque of electric motors.

One of the key features of the DS200CDBAG1A is its PCB coating, which is a normal coating designed to protect the board from environmental factors such as dust and moisture. This coating ensures the longevity and durability of the board, making it suitable for use in harsh industrial environments. The board's construction adheres to high-quality standards, ensuring consistent performance over time.

The DS200CDBAG1A is equipped with a 4 amp 125V fuse, providing essential protection against electrical surges and preventing potential damage to the board and the connected equipment. This fuse ensures the safety and reliability of the system by interrupting excessive currents that could otherwise harm the components.

The board includes three test points, allowing for convenient diagnostics and troubleshooting. These test points provide access to critical signals on the board, making it easier for technicians to monitor and verify the board's operation during maintenance and testing procedures. This feature is vital for maintaining the system's reliability and ensuring that any issues can be quickly identified and resolved.

Additionally, the DS200CDBAG1A features an LED indicator, which provides a visual indication of the board's status. This LED is a simple yet effective tool for quickly determining whether the board is operating correctly, aiding in both installation and maintenance processes. The presence of an LED indicator enhances the usability of the board, making it easier for operators to monitor its status in real-time.

The DS200CDBAG1A is designed with a functional revision labeled as Revision 1 (A), indicating enhancements and optimizations in its design and performance. This revision ensures that the board incorporates the latest improvements, providing users with a reliable and efficient solution for their drive system needs.

Integration of the DS200CDBAG1A into existing systems is straightforward, thanks to its standardized form factor and connector layout. The board is designed to fit seamlessly into Mark V and DC2000 Adjustable Speed Drives configurations, allowing for easy upgrades and replacements. This compatibility reduces downtime and ensures that the drive system can continue operating efficiently with minimal interruption.

In summary, the General Electric Mark V DS200CDBAG1A Contactor Driver Board (CDBA) is a critical component for industrial drive systems. Its robust design, protective features, and ease of integration make it an ideal choice for maintaining the performance and reliability of adjustable speed drives. With its advanced functionality and reliable performance, the DS200CDBAG1A exemplifies GE's commitment to quality and innovation in industrial drive technology.
