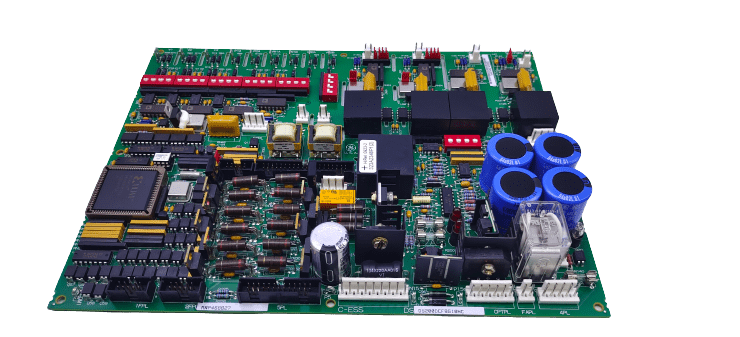

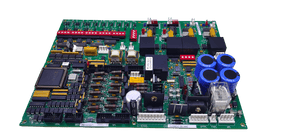

DS200DCFBG1B | GE Power Supply Board for Mark V and EX2000 Series Drives
- Regular price
- $18,699.00
- Sale price
- $18,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DS200DCFBG1B
Description
The GE DS200DCFBG1B is a power supply board designed to distribute control-level power within Mark V and related GE drive platforms. This board receives incoming voltage and routes regulated power to essential drive functions, supporting stable system operation. The DS200DCFBG1B is built for dependable integration into multiple GE turbine and industrial control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Power Supply Board |
| Part Number | DS200DCFBG1B |
| Subcategory | GE Drive Control Components |
| Series | Mark V, AC2000, CB2000, DC2000, FC2000, ME2000, EX2000 |
| Product Type | Power Supply Board |
| Input Voltage Range | 38–115 VAC |
| Frequency Range | 0–500 kHz (dependent on input) |
| Circuit Types | Motor field power, driver, AC/DC monitoring, control-level power supply |
| Jumpers | 12 configurable jumpers |
| DIP Switches | 7 DIP switches |
| Diagnostic Indicators | 2 LEDs and 1 neon indicator |
| Protection | 3 protective fuses |
| Test Points | 5 onboard voltage test points |
| Shipping Dimensions | 20 in × 16 in × 16 in |
Information About DS200DCFBG1B
The DS200DCFBG1B is a power supply board used across various GE series including Mark V, AC2000, CB2000, DC2000, FC2000, ME2000, and EX2000. It incorporates multiple circuit sections such as motor field power, AC/DC monitoring, and dedicated control-level supply paths. Configuration options are provided through onboard jumpers, DIP switches, and indicator components that support system diagnostics. This board is typically installed within GE drive enclosures where it interfaces with control power transformers, system wiring, and monitoring technologies.
Key Features
- Multi-series compatibility: Supports Mark V, AC2000, CB2000, DC2000, FC2000, ME2000, and EX2000 drives.
- Control-level power distribution: Regulates and delivers power to critical drive circuits.
- Integrated diagnostic indicators: Includes LED and neon indicators for fuse and status monitoring.
- Configurable system settings: Features twelve jumpers and seven DIP switches for adaptable operation.
- Multiple protection fuses: Three onboard fuses safeguard the board and connected equipment.
- Wide input voltage range: Operates with input levels between 38 and 115 VAC through the control power transformer.
- Accessible test points: Five test points allow direct measurement of board voltages.
- Dedicated circuit sections: Motor field supply, driver, and AC/DC monitoring circuits enhance functional stability.
The DS200DCFBG1B delivers the reliability and precision required for industrial drive power distribution and control.
