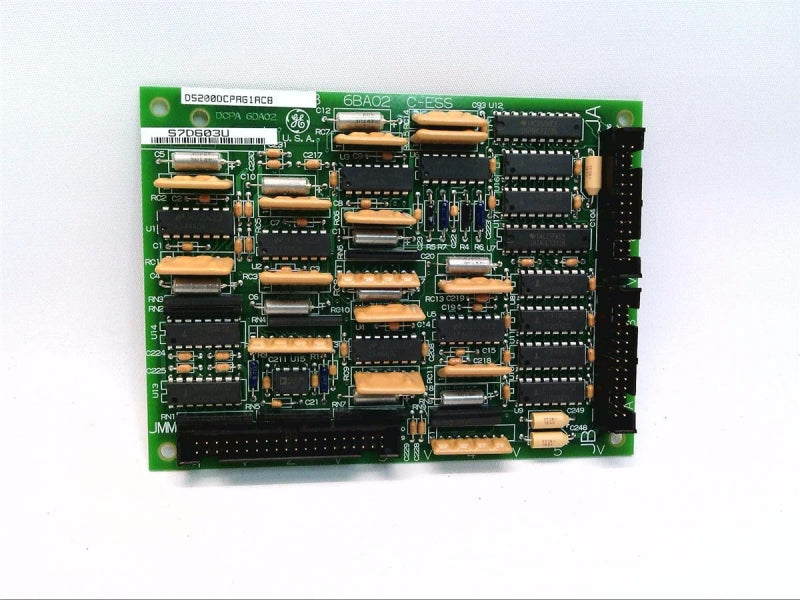

DS200DCPAG1A | General Electric IOS Power Connect Board

Description

The DS200DCPAG1A is a General Electric IOS Power Connect Board designed for efficient power distribution and connectivity within industrial control systems. It manages power connections to I/O modules, ensuring stable and reliable power supply. This board supports effective integration and operation of various system components, enhancing overall performance and system reliability.

Technical Specifications

Information About DS200DCPAG1A

The DS200DCPAG1A, a Digital Processor Control Board from General Electric’s Mark V series, is a crucial component in the PLCs and machine control category, specifically designed to enhance the performance and reliability of control systems. This board serves as an IOS Power Connect Board, providing essential connectivity and power management functions within complex control environments.

This board operates under the functional acronym DCP, indicating its role as a Digital Processor Control Board. It supports multiple redundancy modes, including Triple Modular Redundant (TMR), Dual, and Simplex configurations. The TMR mode ensures the highest level of system reliability by employing three parallel modules to provide continuous operation even if one module fails. Dual mode offers a balanced approach with two redundant modules, while Simplex mode supports single-module operation for less critical applications.

The DS200DCPAG1A is designed to accommodate a wide range of power requirements. It operates with a +5 V DC power supply, requiring 6 A to power its various functions. Additionally, the board supports a power supply voltage of 28 V DC, providing flexibility in power management and ensuring compatibility with diverse system setups.

The board features 12 relay channels, which are integral for managing and controlling various signals and power inputs within the system. These relay channels facilitate reliable switching operations and are essential for maintaining the integrity and functionality of the control system.

The DS200DCPAG1A is constructed using surface mount technology, which contributes to its compact and efficient design. The board measures 15.9 cm in height and 17.8 cm in width, making it suitable for mounting on DIN rails, a common installation method that ensures secure and organized placement within control panels.

Operating temperature range for the DS200DCPAG1A extends from -30°C to +65°C, allowing it to perform reliably in a wide array of environmental conditions. This broad temperature range ensures that the board maintains its functionality and performance even in extreme conditions, from cold storage facilities to high-temperature industrial environments.

In summary, the DS200DCPAG1A Digital Processor Control Board from General Electric’s Mark V series is a versatile and robust component designed for advanced control systems. Its support for multiple redundancy modes, comprehensive power requirements, and reliable relay channels make it an essential element for maintaining high performance and system reliability. With its surface mount technology and broad temperature tolerance, the DS200DCPAG1A is well-suited for demanding industrial applications where precise control and durability are paramount.
