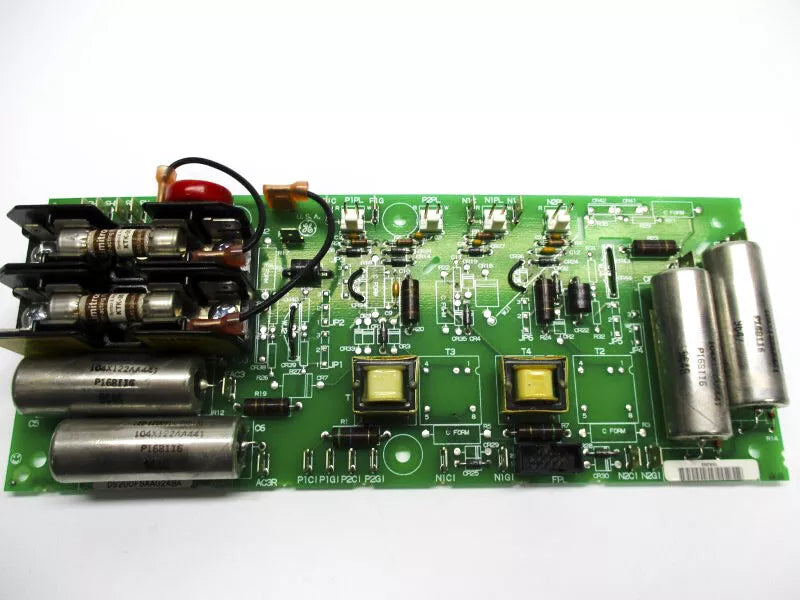

DS200FSAAG2A | General Electric Field Supply Gate Amplifier Board

Description

The DS200FSAAG2A Field Supply Gate Amplifier Board is a crucial member of General Electric's Mark V turbine control system series.

Technical Specifications

Information About DS200FSAAG2A

The GE Field Supply Gate Amplifier Board DS200FSAAG2A features 5 jumpers, one 10-pin connector, and two fuses. It is also populated with multiple test points. The fuses on the GE Field Supply Gate Amplifier Board DS200FSAAG2A are rated as 600 volts and 30 amps each and are replaceable. If you suspect that the board is not operational, before you decide to replace the board, inspect the fuses and verify that one or both of the fuses are blown. That can happen if too much current is supplied to the board. The fuses are engineered to protect the board by preventing the jolt of high voltage from damaging the components on the board and other components in the drive. The two fuses applied to the assembly of this DS200FSAAG2A Field Supply Gate Amplifier Board are both mounted on on onboard fuse block for additional protections, and are classified in original General Electric instructional manual materials as the 30 A, 60 V, fast-acting style of fuse. As mentioned above, this DS200FSAAG2A Field Supply Gate Amplifier Board has five total jumpers in its assembly; these jumpers have also been specified in original General Electric instructional manual materials as Berg-type manually-moveable jumpers, each of which adorned with its own JP factory-printed nomenclature label. These jumpers have been included in the assembly of this DS200FSAAG2A Field Supply Gate Amplifier Board to provide the DS200FSAAG2A board's greater drive administrator with a NRX option.

While original, factory-printed instuctional manual materials for this DS200FSAAG2A Field Supply Gate Amplifier Board do exist online, more general series-placement and hardware information can be gleaned from a careful inspection of the DS200FSAAG2A product number itself, which was specifically developed by General Electric to describe some of the intended functionality of this Mark V Series product offering. For starters, the DS200FSAAG2A functional product number begins with the DS200 tag, describing its domestic manufacture location and normal Mark V Series assembly type. This DS200 series tag is followed by the FSAA functional acronym in the DS200FSAAG2A product number, which is itself followed by the G2 series grouping tag; which names this Field Gate Supply Amplifier Board both as a normally-coating printed circuit board and as a Mark V Series group 2 product grouping item. The final A digit in the DS200FSAAG2A product number is reminiscent of this product's single, A-rated functional revision.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
