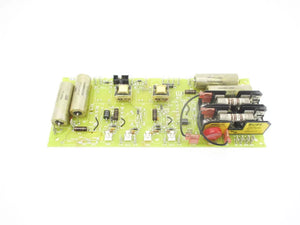

DS200FSAAG2ABA | General Electric Field Supply Amplifier Board
- Regular price
- $8,227.00
- Sale price
- $8,227.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS200FSAAG2ABA
Description
The GE Field Supply Amplifier Board DS200FSAAG2ABA is equipped with 5 jumpers, one 10-pin connector, and two fuses, along with multiple test points. Additionally, it features four 2-pin connectors, allowing for connection to multiple cables during replacement. To streamline the replacement process and minimize downtime, it is recommended to label each cable connector with its corresponding identifier using lengths of tape before disconnecting. When reconnecting, locate the connectors using the identifiers and reconnect the cables accordingly.
Technical Specifications
Manufacturer |
GE General Electric |
Series |
Mark V |
Part Number |
DS200FSAAG2ABA |
Functional Description |
Field Supply Amplifier Board |
Functional Acronym |
FSAA |
PCB Coating |
Normal Coating |
Functional Revision 1 |
A |
Functional Revision 2 |
B |
Artwork Revision |
A |
Information About DS200FSAAG2ABA
The GE Field Supply Amplifier Board DS200FSAAG2ABA is equipped with five jumpers, one 10-pin connector, and two fuses. It also incorporates multiple test points for diagnostic purposes. In addition to the 10-pin connector, this board accommodates four 2-pin connectors, allowing it to be connected to multiple cables that may require disconnection and reconnection during replacement procedures. To minimize the risk of errors and reduce downtime, it is advisable to label the connectors with their corresponding identifiers using tape before disconnecting the cables. This labeling facilitates the reconnection process by ensuring accurate cable placement.
During the cable disconnection process, it is essential to adhere to certain guidelines to prevent damage. Cables should only be grasped by the connector end when removing them, as pulling from the cable portion can exert stress on the cable, potentially leading to wire damage or disconnection. This caution is particularly important for ribbon cables, where the fine wires and limited support at the connection point increase the risk of damage. When reconnecting the cables, ensure they are fully seated in the connector to allow all signals to pass through to the board effectively.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
