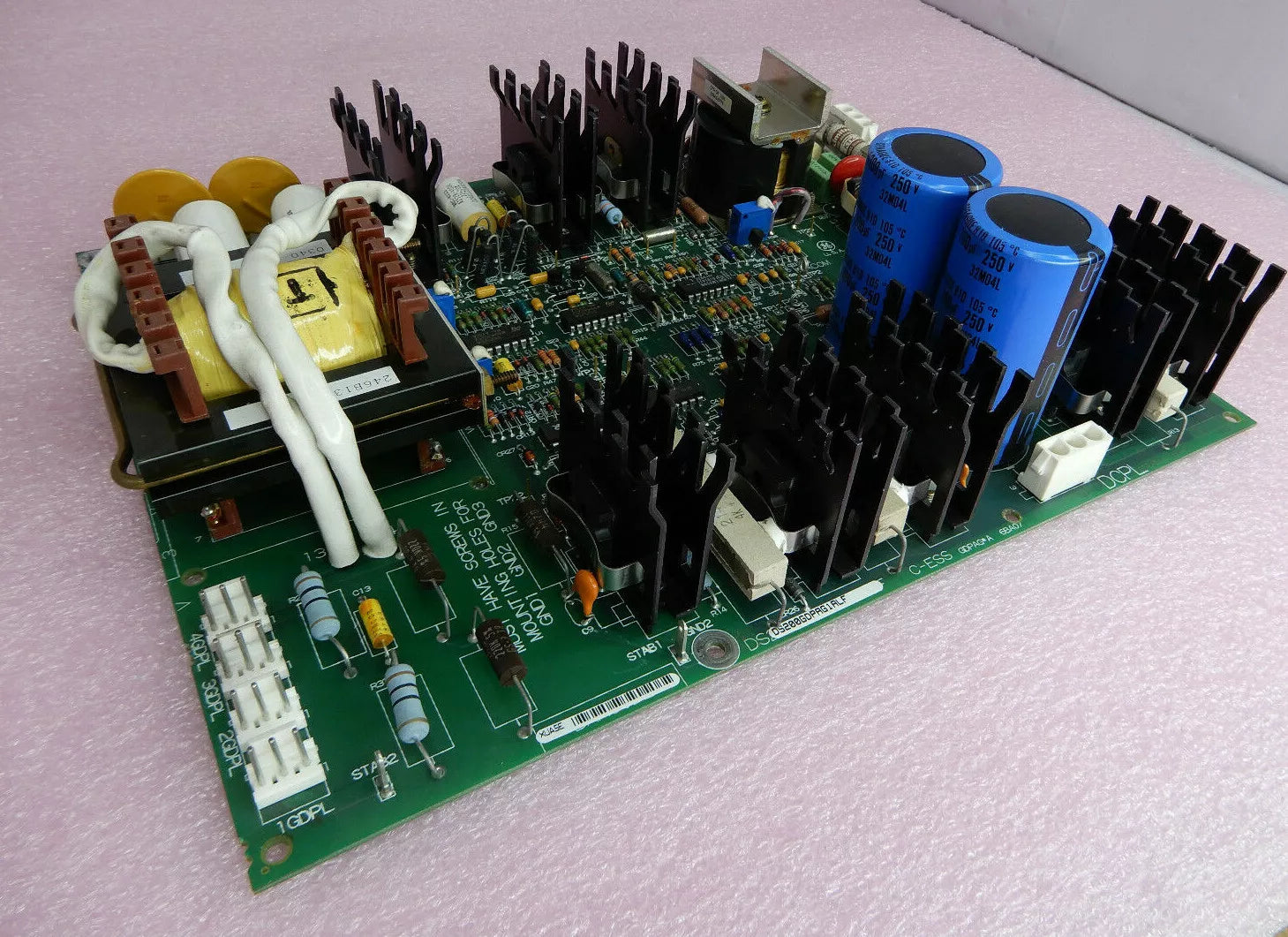

Part #: DS200GDPAG1A Manufactured by: General Electric
Regular price
$3,249.00
Sale price
$3,249.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The DS200GDPAG1A is a high-frequency power supply board designed for General Electric's Mark V board series. With a power ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: DS200GDPAG1A
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for General Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: DS200GDPAG1A

Description / Specifications

Description



The DS200GDPAG1A is a high-frequency power supply board designed for General Electric's Mark V board series. With a power output ranging from 600 to 700 W, it accommodates both AC and DC power supplies. Suitable for various GE-manufactured drives and exciters, the board accepts AC power inputs between 80 and 132 VAC, and DC power inputs between 105 and 140 VDC.

Equipped with a range of integrated features, the DS200GDPAG1A ensures optimal user functionality. These include a 120 VDC power supply, a 50 VAC output transformer, and a control power supply. The board incorporates both control signal level circuits and protective circuits. Additionally, it comprises an input rectifier and filter, a regulator, and a 27 kHz inverter. All inputs on the board are isolated to prevent interruptions or voltage spikes. For user convenience, four onboard LEDs and two neon indicators provide comprehensive board status diagnostics.



Technical Specifications

Manufacturer

GE General Electric

Series

Mark V

Part Number

DS200GDPAG1A

Functional Description

Gate Driver Power Supply Board

Instruction Manual

GEI-100287

Functional Acronym

GDPA

PCB Coating

Normal Coating

Functional Revision 1

A




Information About DS200GDPAG1A



The GE General Electric DS200GDPAG1A is a critical component within the Mark V series, functioning as a Gate Driver Power Supply Board. Engineered for high reliability and efficiency, this board is essential for providing stable power to gate driver circuits in various industrial applications.

The DS200GDPAG1A, identified by the functional acronym GDPA, plays a pivotal role in the Mark V control system, ensuring that gate drivers receive the precise voltage and current necessary for optimal performance. Its robust design and advanced functionality make it a key element in maintaining the overall efficiency and stability of the control system.

This Gate Driver Power Supply Board is equipped with normal PCB coating, offering adequate protection against environmental factors such as dust, moisture, and chemical exposure. This coating ensures the longevity and reliability of the board, allowing it to perform consistently under various operating conditions.

The DS200GDPAG1A is part of the first functional revision (A) of this specific board type, indicating it incorporates the latest improvements and optimizations based on field performance and user feedback. This revision ensures enhanced performance and reliability, making it a dependable choice for critical industrial applications.

One of the standout features of the DS200GDPAG1A is its comprehensive documentation, as detailed in the instruction manual GEI-100287. This manual provides extensive guidance on installation, operation, and maintenance, ensuring that technicians and engineers can deploy and manage the board effectively. The detailed instructions help minimize installation time and reduce the risk of errors, ensuring that the system can be brought online swiftly and efficiently.

The Gate Driver Power Supply Board's design focuses on delivering consistent and stable power output, which is crucial for the proper functioning of gate drivers in industrial settings. The board is built using high-quality materials and components, ensuring durability and long-term performance. Its advanced design also helps to minimize electrical noise and interference, further enhancing the reliability of the control system.

The DS200GDPAG1A is manufactured by GE General Electric, a leader in industrial automation and control technology. GE's commitment to quality and innovation is evident in the design and construction of this board, which meets stringent industry standards and specifications. This assurance of quality makes the GDPA board a reliable choice for various industrial control applications.

In terms of integration, the DS200GDPAG1A is designed to fit seamlessly into existing Mark V systems, providing a straightforward upgrade path for enhancing system capabilities. Its compatibility with the broader Mark V ecosystem ensures that it can be deployed without significant modifications to the existing setup, reducing downtime and ensuring continuity of operations.

In summary, the GE General Electric DS200GDPAG1A Gate Driver Power Supply Board is a vital component of the Mark V series, providing reliable and efficient power to gate driver circuits. Its robust design, normal PCB coating, comprehensive documentation, and first functional revision make it an ideal choice for industrial applications requiring stable and precise power supply. Manufactured to high standards by GE General Electric, the DS200GDPAG1A ensures long-term reliability and performance, supporting the demanding needs of modern industrial control systems.
