DS200IAXSG1A | General Electric IGBT AA/AB Snubber Board Mark V

Description

Technical Specifications

Information About DS200IAXSG1A

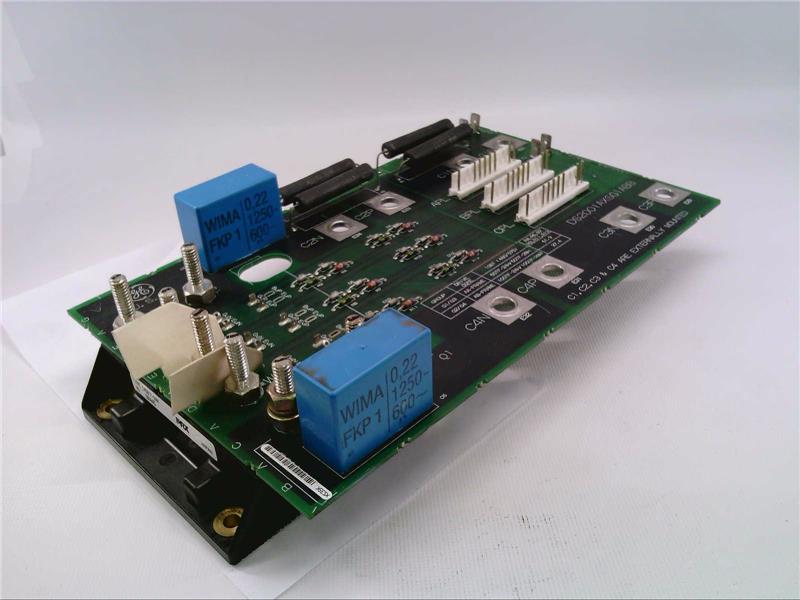

The DS200IAXSG1A is an IGBT AA/AB Snubber Card developed by General Electric, designed to enhance the performance and reliability of industrial control systems within the Mark V series. As an essential component in the category of PLCs (Programmable Logic Controllers) and machine control, this card is specifically engineered to protect IGBT (Insulated Gate Bipolar Transistor) modules by dissipating excess energy, thereby ensuring the stability and longevity of the entire system. Falling under the subcategory of PC Board PLC/Add-On Boards, the DS200IAXSG1A plays a critical role in maintaining the efficiency and safety of complex industrial applications.

Weighing 1.45 lbs, the DS200IAXSG1A is a robust and well-constructed card designed to withstand the demanding conditions of industrial environments. Its weight reflects the high-quality materials and components used in its construction, ensuring that it delivers reliable performance over extended periods. This durability is particularly important in industrial settings where equipment is often exposed to harsh conditions, including temperature fluctuations, electrical noise, and mechanical vibrations.

As an IGBT AA/AB Snubber Card, the primary function of the DS200IAXSG1A is to manage the transient voltage spikes that occur during the switching of IGBT modules. These transients can cause significant stress on the IGBT modules, potentially leading to premature failure if not properly controlled. The DS200IAXSG1A mitigates this risk by absorbing and dissipating the excess energy, thereby protecting the IGBT modules and ensuring that the drive system operates smoothly and without interruption.

One of the key features of the DS200IAXSG1A is its multi-input/output capability, which allows it to interface with various components within the control system. This feature enhances the flexibility and adaptability of the card, making it suitable for a wide range of applications. The multi-input/output capability ensures that the DS200IAXSG1A can effectively manage the complex interactions between different parts of the system, contributing to the overall stability and reliability of the control process.

In addition to its multi-input/output functionality, the DS200IAXSG1A is equipped with two relays, further extending its versatility within the control system. These relays provide additional control options, enabling the card to perform a variety of tasks such as switching, isolation, and signal routing. The inclusion of relays in the design of the DS200IAXSG1A allows for more precise control over the operation of the IGBT modules and other connected components, ensuring that the system responds accurately to changing conditions and demands.

The DS200IAXSG1A is designed to integrate seamlessly with existing PLC systems, particularly those within the Mark V series. Its standard form factor and connector layout ensure that it can be easily installed as an add-on board, minimizing the time and effort required for integration. This ease of installation is a significant advantage in industrial settings where downtime must be minimized to maintain productivity and efficiency.

In terms of performance, the DS200IAXSG1A is engineered to operate reliably under a wide range of environmental conditions. Its robust design includes protective measures that shield the card from potential damage caused by electrical surges, overheating, and other common industrial hazards. These protective features help to extend the lifespan of the card and reduce the need for maintenance, contributing to lower overall operating costs and improved system uptime.

The DS200IAXSG1A's role within the Mark V series is crucial for maintaining the integrity of the drive system. By ensuring that the IGBT modules operate within their safe limits, the card helps to prevent costly downtime and equipment failures, which can have a significant impact on productivity. Its advanced features, including multi-input/output capabilities and integrated relays, make it a versatile and valuable component in any industrial control system that relies on precise and reliable motor control.

In summary, the DS200IAXSG1A IGBT AA/AB Snubber Card is a high-performance component designed by General Electric to protect and enhance the operation of IGBT modules within industrial control systems. With its robust construction, multi-input/output capabilities, and integrated relays, this card provides essential protection and control functions that ensure the stability, efficiency, and reliability of the entire system. As part of the Mark V series, the DS200IAXSG1A is a critical add-on board that contributes to the long-term performance and safety of PLC-driven industrial applications.
