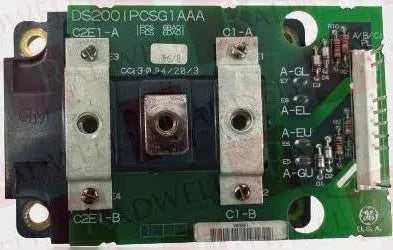

DS200IPCSG1A | General Electric IGBT P3 Snubber Card

Description

The DS200IPCSG1A model, developed by General Electric, serves as an Insulated Gate Bipolar Transistor (IGBT) P3 Snubber Card (IPCS), intended for use in either the Mark V or EX2000 series. Featuring six screws, labeled as C2E-1-A, C2E1-B, C2E-2-B, C2E-2-A, C1-A, and C1-B, these screws facilitate adjustments to the hardware of the connected IGBT model, necessitating a screwdriver for operation. Caution must be exercised during screw adjustments to prevent potential breakage, which would require replacement.

Technical Specifications

Information About DS200IPCSG1A

The General Electric DS200IPCSG1A is an Insulated Gate Bipolar Transistor (IGBT) Snubber Card, a crucial component within the Drive Control series. This advanced card is designed to protect IGBT modules by absorbing and dissipating the energy of voltage spikes, thereby enhancing the reliability and longevity of power electronic systems.

The DS200IPCSG1A operates with a power requirement of +5 V dc at 6 A, ensuring robust performance for demanding applications. It is equipped with 12 relay channels, each designed to manage high-power electrical loads effectively. The board also supports a power supply voltage of 28 V dc, further broadening its applicability in various industrial environments.

Designed for ease of integration, the DS200IPCSG1A features a compact form factor with dimensions of 15.9 cm in height and 17.8 cm in width. Its design supports DIN-rail mounting, making it straightforward to install in control cabinets or other standard enclosures. This mounting flexibility simplifies installation and maintenance, reducing downtime and operational costs.

The DS200IPCSG1A leverages surface mount technology (SMT), which allows for higher circuit densities and improved performance reliability. SMT also enhances the card's resistance to environmental stress, contributing to its long service life. This technology is particularly beneficial in applications where space constraints and operational reliability are critical.

Operating within a temperature range of -30 to +65 degrees Celsius, the DS200IPCSG1A is built to perform reliably in a wide array of environmental conditions. This broad temperature tolerance ensures that the card can be deployed in diverse industrial settings, from cold storage facilities to high-temperature manufacturing environments.

Manufactured in the United States, the DS200IPCSG1A adheres to stringent quality standards, reflecting General Electric's commitment to producing high-quality and reliable industrial components. The card's robust construction and advanced technology make it a dependable choice for protecting IGBT modules in various drive control applications.

The DS200IPCSG1A comes with a comprehensive manual, GEH-6120, providing detailed instructions for installation, operation, and troubleshooting. This manual ensures that users can fully utilize the card's capabilities and maintain it effectively, maximizing its performance and lifespan.

In summary, the General Electric DS200IPCSG1A IGBT Snubber Card is a high-performance component within the Drive Control series, designed to protect IGBT modules from voltage spikes and enhance system reliability. With its 12 relay channels, compact dimensions, and versatile mounting options, it offers robust performance and flexibility for various industrial applications. Its surface mount technology and wide operating temperature range further ensure reliable operation in demanding environments. Manufactured to high standards in the USA, the DS200IPCSG1A is a reliable and efficient solution for enhancing the performance and durability of drive control systems.
