Part #: DS200KLDBG1A Manufactured by: General Electric
Regular price
$5,052.00
Sale price
$5,052.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
DS200KLDBG1A, General Electric industrial computer accessory
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: DS200KLDBG1A
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for General Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: DS200KLDBG1A

Description / Specifications

Description

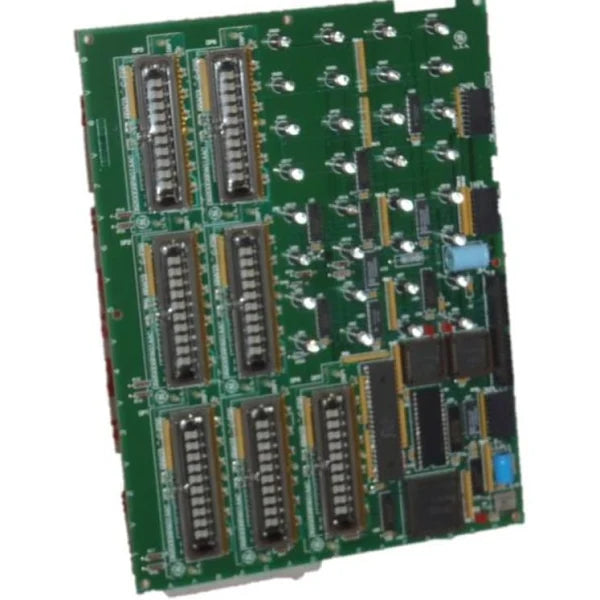

The DS200KLDBG1A is a Key LED Display Board manufactured by GE Motors & Industrial Systems as a member of the Mark V Series's EX2000 subseries.



Technical Specifications



Brand General Electric
Category Drives
Part Number DS200KLDBG1A
Subcategory Drive Board
Series Mark V
Product Type Key/LED/Display Board
Product Abbreviation KLDB
Power Requirements +5 V dc, 6 A
Number of input channels 24
Number of relay channels 12
Trip Solenoid Rating 125 V dc
Power supply voltage 28 V dc
Voltage Range 18 - 32 VDC
Operating temperature 40 to 70°C





Information About DS200KLDBG1A

The General Electric DS200KLDBG1A is a vital component in the Mark V series of drives, categorized specifically as a Drive Board. This Key/LED/Display Board (KLDB) is designed to provide comprehensive control and monitoring functionalities essential for efficient drive operations in various industrial applications.

Operating within the rigorous requirements of industrial environments, the DS200KLDBG1A is engineered for reliability and performance. The board requires a power supply of +5 V DC at 6 A, ensuring it receives adequate power to support its functionalities. Additionally, it features a power supply voltage of 28 V DC, with an operational voltage range spanning from 18 to 32 V DC, offering flexibility and resilience in power management.

One of the standout features of the DS200KLDBG1A is its input and relay channel capabilities. It includes 24 input channels, allowing for extensive data acquisition and control inputs, essential for monitoring and responding to various operational parameters. The board also incorporates 12 relay channels, which facilitate robust control over connected devices and systems, enhancing the overall automation and response efficiency.

The DS200KLDBG1A is equipped with a trip solenoid rated at 125 V DC, ensuring reliable and quick actuation of safety mechanisms in the event of a trip condition. This feature is crucial for maintaining safety and protecting equipment in demanding operational settings.

Designed to operate efficiently in a wide range of temperatures, the DS200KLDBG1A functions effectively between -40 to 70°C. This broad operating temperature range ensures the board's reliability in various environmental conditions, from extreme cold to intense heat, making it suitable for a multitude of industrial applications.

The board's key, LED, and display functionalities provide clear and accessible interface options for users. The LED indicators offer immediate visual feedback on the system's status, enhancing operational awareness and allowing for quick diagnostics. The key and display components ensure that users can interact with the drive system effectively, making adjustments and monitoring performance with ease.

The DS200KLDBG1A’s robust construction and advanced design underscore General Electric's commitment to quality and reliability. It is built to withstand the harsh conditions often encountered in industrial settings, ensuring long-term durability and consistent performance. The careful selection of materials and components in its construction ensures that the board can handle the stresses of continuous operation, minimizing the risk of failure and reducing maintenance needs.

In summary, the General Electric DS200KLDBG1A Key/LED/Display Board is an essential drive board within the Mark V series, offering extensive input and relay channel capabilities, reliable power management, and robust operational features. Its ability to operate across a wide temperature range and its durable construction make it a reliable choice for enhancing the control and monitoring capabilities of industrial drive systems. Integrating the DS200KLDBG1A into your drive system ensures enhanced operational efficiency, safety, and reliability, making it a valuable component in the optimization of industrial automation processes.
