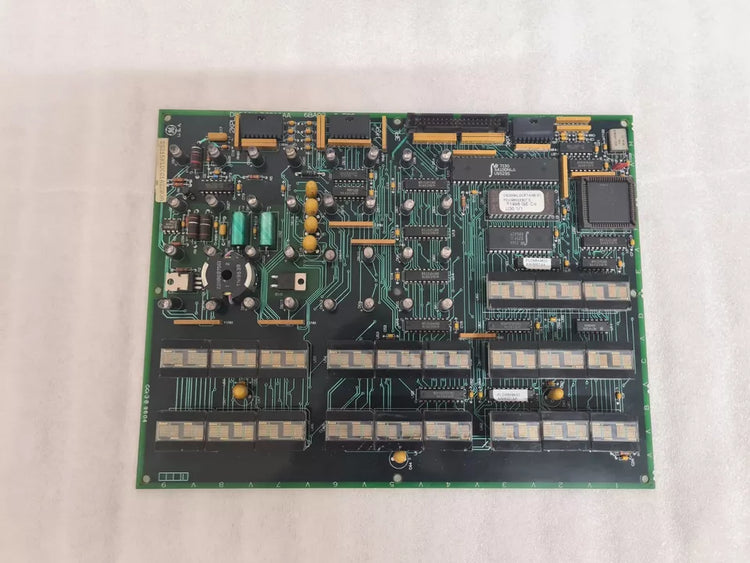

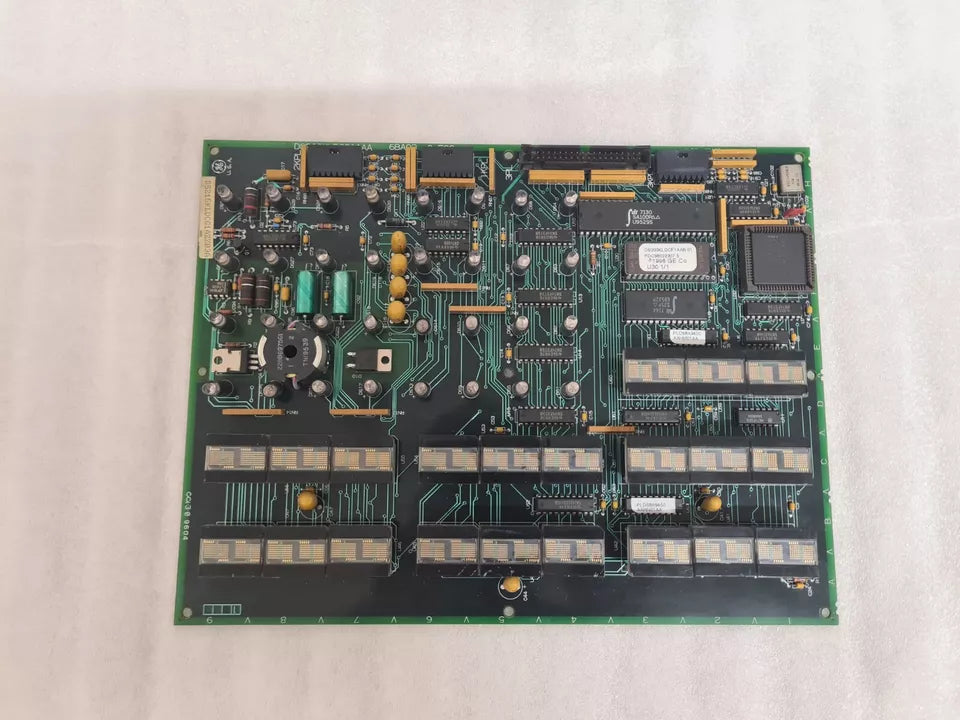

DS200KLDCG1AAA | General Electric Mark V LED/Key Display Board
- Regular price
- $2,829.00
- Sale price
- $2,829.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS200KLDCG1AAA
Description
The GE Key/LED/Display Board DS200KLDCG1AAA is equipped with 32 LEDs, twenty-one 4-character displays, and one jumper. It also features a 40-pin connection strip located on the rear of the board. The jumper is utilized to adjust the board's behavior by altering its position over the pins. For instance, relocating the jumper from covering pins 1 and 2 to covering pins 2 and 3. Detailed instructions regarding the jumper and its impact on the board's functionality are provided in the accompanying documentation.
However, certain jumpers are designated for factory use only and should not be manipulated by service personnel. In such cases, the jumper serves a testing purpose during manufacturing, and altering its position is not supported for operational purposes. Users are advised to consult the documentation provided with the board for further clarification.
Technical Specifications
Manufacturer |
GE General Electric |
Series |
Mark V |
Part Number |
DS200KLDCG1AAA |
Functional Description |
LED/Key/Display Board |
Functional Acronym |
KLDC |
PCB Coating |
Normal Coating |
Functional Revision 1 |
A |
Functional Revision 2 |
A |
Artwork Revision |
A |
Information About DS200KLDCG1AAA
The GE Key/LED/Display Board DS200KLDCG1AAA is a component designed for use in the Mark V series. It features 32 LEDs and twenty-one 4-character displays, facilitating visual indication and information display. Additionally, the board includes one jumper, which can be repositioned over pins to modify its behavior. The documentation accompanying the board provides details on the jumper's function and the corresponding changes in board behavior.
It is essential to note that while the jumper allows for customization, some jumpers are designated for factory use only and should not be moved by service personnel. These factory-designated jumpers are utilized during manufacturing testing, and altering their position for operational purposes is not supported. For comprehensive guidance on jumper configuration and usage, users should refer to the documentation provided with the board.
To install the DS200KLDCG1AAA board, it is affixed to the drive cabinet using screws inserted into the four holes located at each corner of the board. These holes align with corresponding screw holes in the cabinet rack within the drive. Before removing a defective board, it is advisable to observe its current installation position and take note of cable routing within the cabinet.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
