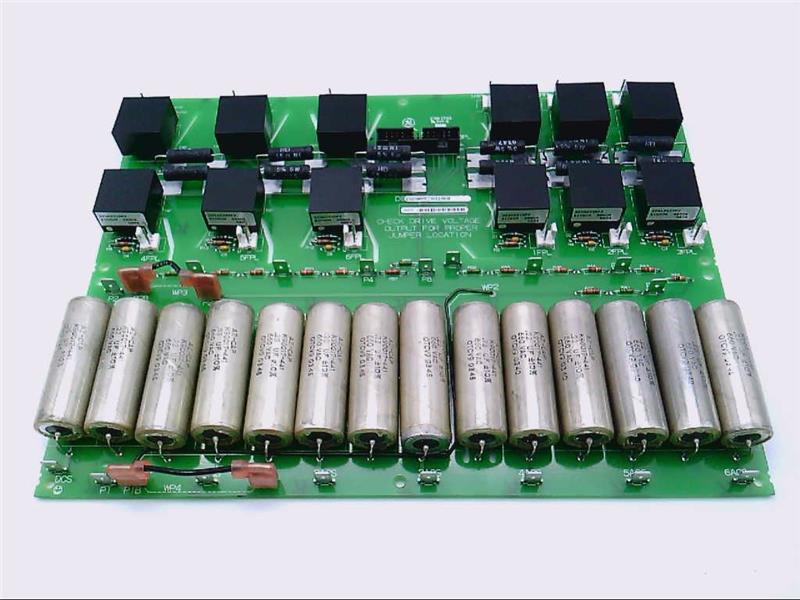

DS200PCCAG1A | General Electric Power Connect Board Mark V

The DS200PCCAG1A is a Power Connector designed by General Electric as part of the EX2000 series, tailored for use in various industrial applications where reliable power distribution and connectivity are critical. This component integrates advanced technological features to ensure seamless operation within control systems, making it an essential part of modern industrial infrastructures that demand precision and durability.

At the core of the DS200PCCAG1A is its Intel Ultra Low Voltage Celeron 650 MHz microprocessor. This processor is specifically selected for its balance between performance and power efficiency, making it suitable for applications where reliable processing power is required without excessive energy consumption. The processor’s capability allows the DS200PCCAG1A to manage power distribution tasks effectively, ensuring that connected devices receive stable and consistent power necessary for their operation.

The DS200PCCAG1A operates on the QNX Neutrino operating system, a real-time OS known for its reliability and low latency, which is crucial in industrial settings where timing and precision are paramount. QNX Neutrino’s real-time capabilities ensure that the DS200PCCAG1A can handle complex power distribution tasks without delays, maintaining system stability even under demanding conditions. The choice of this operating system reflects the product’s design focus on maintaining high performance and reliability in environments where downtime or errors can lead to significant operational disruptions.

This power connector is designed to function within an operating temperature range of 0 to 60°C, making it suitable for a variety of industrial environments, from controlled indoor settings to more challenging conditions where temperature regulation is necessary. The ability to operate effectively within this temperature range ensures that the DS200PCCAG1A can be deployed in diverse locations without compromising its performance or longevity.

Physically, the DS200PCCAG1A is compact, with dimensions of 15.875 cm in height and 10.795 cm in width. This size allows it to be easily integrated into existing systems without requiring significant space or major adjustments to the system layout. Its design ensures that it can fit into standard enclosures and cabinets used in industrial control systems, providing flexibility in installation and maintenance.

The DS200PCCAG1A is built to handle an analog input current of 240 V rms, which is a standard specification for many industrial power systems. This capacity ensures that the component can manage the electrical demands placed upon it by various connected devices, providing a stable power supply that is critical for maintaining the functionality of the entire control system. The ability to handle such input current makes the DS200PCCAG1A a versatile and reliable choice for power distribution in a range of industrial applications.

As a power connector, the DS200PCCAG1A plays a crucial role in ensuring that power is correctly distributed to the various components of a control system. It acts as an interface between the power source and the devices that require power, ensuring that the correct voltage and current are delivered consistently. This functionality is vital in systems where precise power management is necessary to avoid overloading or underpowering connected devices, both of which can lead to system failures or inefficiencies.

The design and construction of the DS200PCCAG1A reflect General Electric’s commitment to quality and reliability. The component is manufactured using high-grade materials that provide durability and resistance to environmental factors such as heat, dust, and moisture, all of which are common in industrial settings. The robust construction ensures that the DS200PCCAG1A can withstand the rigors of continuous operation, reducing the need for frequent replacements or maintenance.

In summary, the DS200PCCAG1A Power Connector is a vital component within the EX2000 series from General Electric, designed to provide reliable and efficient power distribution in industrial control systems. Its integration of an Intel Ultra Low Voltage Celeron 650 MHz microprocessor, coupled with the QNX Neutrino operating system, ensures that it delivers high performance and stability in real-time applications. With a compact size, a wide operating temperature range, and the ability to handle significant analog input current, the DS200PCCAG1A is well-suited to meet the demands of modern industrial environments. Its durable construction and precise power management capabilities make it a dependable choice for engineers and technicians tasked with maintaining the operational integrity of complex control systems.
