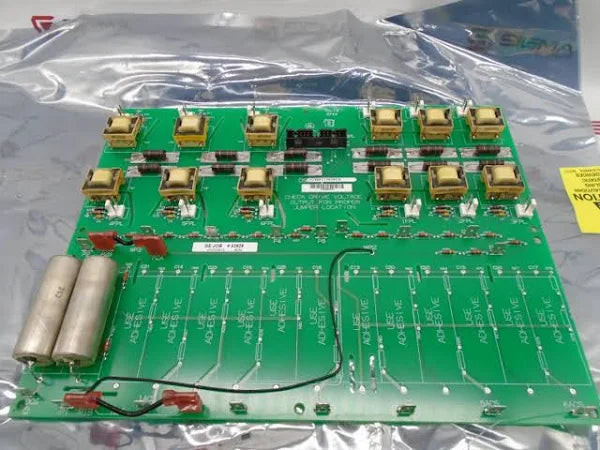

DS200PCCAG9A | General Electric Power Connect Card
- Regular price
- $6,679.00
- Sale price
- $6,679.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS200PCCAG9A
Description
Technical Specifications
Part # |
DS200PCCAG9A |
Category |
Drives |
Subcategory |
Drive Board |
Manufacturer |
GE General Electric |
Series |
Mark V |
Functional Product Number |
DS200PCCAG9A |
Functional Description |
Power Connect Card Assembly |
Instruction Manual |
GEI-100161 |
Functional Acronym |
PCCA |
Armature Voltage Scaling |
240-630 V Regenerative Voltage |
Functional Revision 1 |
A |
Information About DS200PCCAG9A
The DS200PCCAG9A is a Direct Current (DC) Power Connect circuit board manufactured by General Electric (GE) and designated for use as an interface between the drive and the Silicon-Controlled Rectifier (SCR) power bridge within the Mark V Series as specified in its manual. This board, identified as the DS200PCCAG9A, lacks serviceable parts, rendering it irrepairable. Consequently, in the event of defects, replacement with a new board is necessary. However, diagnostic procedures can be undertaken to verify the board's functionality prior to service calls. These procedures involve stopping the Mark V Series drive via the control panel and discontinuing power supply by removing fuses from the 3-phase power supply. Inspection of cable connections and engagement verification, along with scrutiny of the diagnostic report accessible from the control panel, are essential steps in assessing the board's status or determining if service is required for the drive.
Understanding the hardware elements and specifications pertinent to the DS200PCCAG9A Power Connect Card Assembly is imperative. Notably, this assembly features four hardware jumpers labeled JP1 through JP4, integrated for the connection of power bridge and voltage feedback channel with snubber capacitors in the Mark V Series product. The armature voltage rating of the DS200PCCAG9A is contingent upon the series grouping number within its functional product number. For instance, the DS200PCCAG9A Power Connect Card Assembly with a Mark V Series group 9 series grouping is rated at 240-360 volts of regenerative voltage.
