DS200SDCCG3A | General Electric Drive Control Card

Description

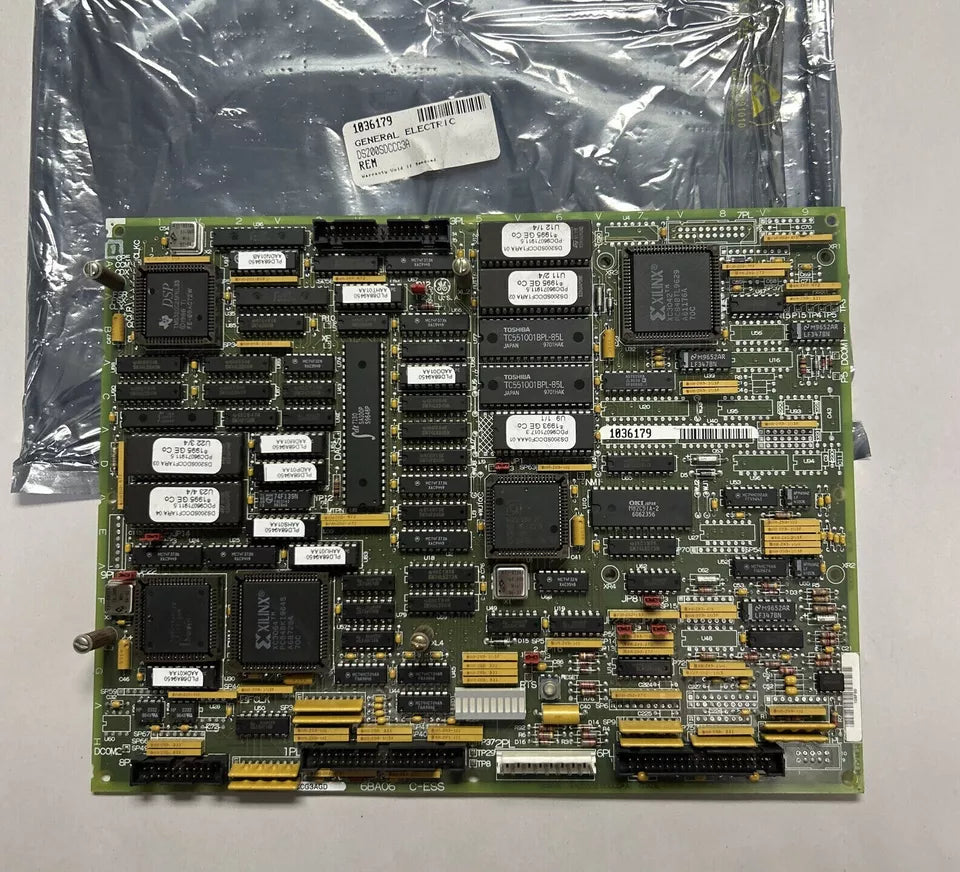

The GE Industrial Systems DS200SDCCG3A primary drive control card was manufactured for use in their Mark V series.

Technical Specifications

Information About DS200SDCCG3A

The General Electric DS200SDCCG3A is an advanced Drive Control Card, meticulously engineered to enhance the performance and reliability of industrial drive systems. As part of the Mark V series, this Drive Board plays a crucial role in ensuring precise control and efficient operation of motor-driven processes across various industrial applications.

The DS200SDCCG3A, commonly referred to by its functional acronym SDCC, serves as a pivotal component in the control architecture of drive systems. It is designed to handle complex control tasks, providing accurate and reliable management of drive functions. The board’s normal PCB coating ensures durability and protection against environmental factors such as dust, moisture, and contaminants, thereby extending its operational lifespan even in harsh industrial conditions.

This Drive Control Card is engineered to operate within a wide temperature range of -30 to 65 °C, making it suitable for diverse industrial environments. Its robust design guarantees reliable performance across varying temperatures, ensuring consistent and uninterrupted operation of the drive system.

The DS200SDCCG3A features 12 analog output channels with a current range of 0-20 mA, enabling precise control of connected devices. The common mode voltage range is +5 V dc, which supports stable and accurate signal processing. Additionally, the card can handle a maximum lead resistance of up to 15Ω, ensuring reliable signal transmission even over long distances.

Operating at either 50 or 60 Hz, the DS200SDCCG3A is versatile and compatible with different power grid standards, facilitating its use in various geographical regions. This frequency flexibility ensures that the card can maintain optimal performance irrespective of the local power supply characteristics.

The compact dimensions of the DS200SDCCG3A, measuring 8.26 cm high by 4.18 cm, allow for easy integration into existing control systems. Its small footprint ensures that it can be conveniently installed in confined spaces, making it an ideal choice for retrofitting older systems or enhancing the capabilities of new installations.

One of the standout features of this Drive Control Card is its ability to provide precise analog output control, essential for fine-tuning motor operations and optimizing performance. The card’s advanced circuitry ensures accurate signal processing, which is critical for maintaining the efficiency and reliability of industrial processes.

General Electric’s commitment to quality and innovation is evident in the DS200SDCCG3A. Each unit undergoes rigorous testing and quality assurance procedures to meet the highest standards of performance and reliability. This meticulous attention to detail ensures that customers receive a product they can depend on for their critical industrial applications.

In summary, the General Electric DS200SDCCG3A Drive Control Card is an indispensable component of the Mark V series, offering robust performance, precise control, and reliable operation in industrial drive systems. Its durable construction, wide operating temperature range, and versatile frequency compatibility make it a superior choice for enhancing the functionality and efficiency of motor-driven processes. By integrating the DS200SDCCG3A into their systems, industries can achieve improved control, reduced maintenance needs, and greater operational reliability, reflecting General Electric’s dedication to delivering high-quality, innovative solutions for industrial automation.
