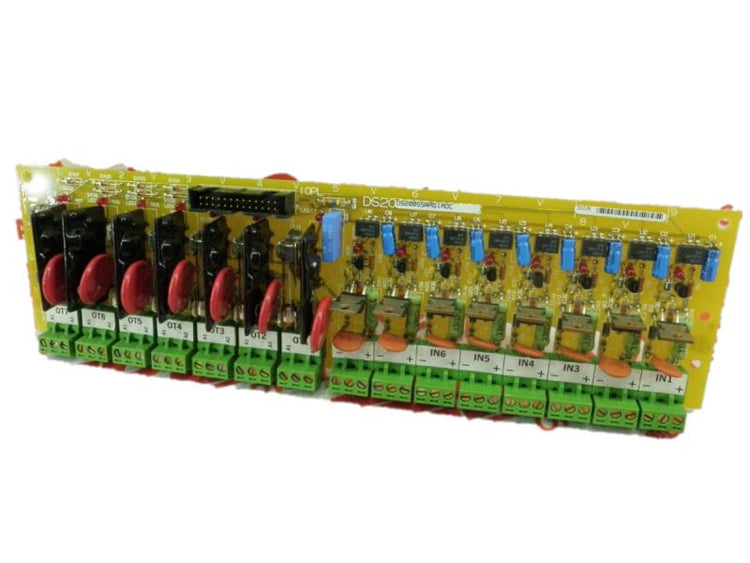

DS200SSRAG1A | General Electric Solid State Relay Board Mark V

Description

The DS200SSRAG1A is a Solid State Relay Board for the Mark V series. It is used in industrial control systems to manage and control relay operations. The board is designed to ensure reliable switching and signal processing in various applications.

Technical Specifications

Information About DS200SSRAG1A

The DS200SSRAG1A is a Solid State Relay Card manufactured by General Electric, designed specifically for use within the Drive Control series of industrial systems. This relay card is an essential component for managing and controlling relay operations in a wide range of industrial applications, where reliable and precise control of electrical signals is critical to system performance.

The DS200SSRAG1A operates with a power requirement of +5 V DC, a standard voltage that ensures compatibility with various control systems. Additionally, the card is designed to work with a power supply voltage of 28 V DC, providing the necessary power for relay operations and ensuring stable performance under varying electrical loads. The dual voltage specifications are key to the card’s ability to function efficiently within complex industrial environments, where different components may require varying power levels.

One of the notable features of the DS200SSRAG1A is its robust operating temperature range, which spans from -35 to +65°C. This wide temperature range allows the card to maintain reliable performance in both extreme cold and hot environments, making it suitable for use in diverse industrial settings, including those with harsh environmental conditions. The ability to operate effectively across such a broad temperature spectrum is critical for ensuring continuous and uninterrupted operation in systems that may be exposed to fluctuating temperatures.

Physically, the DS200SSRAG1A is designed with dimensions of 15.7 cm in height and 19.5 cm in width, making it a compact yet powerful component that can be easily integrated into existing systems. The card’s size is optimized for space efficiency, allowing it to fit within standard control cabinets and enclosures without requiring significant modifications. This compact design also facilitates easy installation and maintenance, reducing downtime and ensuring that the card can be quickly replaced or serviced when necessary.

Weighing 0.5 kg, the DS200SSRAG1A is lightweight, which further contributes to its ease of installation and handling. Despite its light weight, the card is constructed using high-quality materials that ensure durability and long-term reliability in industrial applications. The careful balance between weight and durability makes this card an ideal choice for applications where both performance and ease of use are important considerations.

The DS200SSRAG1A Solid State Relay Card is part of General Electric's Drive Control series, a series known for its reliability and advanced control capabilities. The inclusion of this relay card within the series highlights its importance in managing critical relay functions, ensuring that signals are accurately processed and controlled across various components within the system. The card’s solid-state design offers several advantages over traditional electromechanical relays, including faster switching times, greater reliability, and reduced wear and tear due to the absence of moving parts. These features contribute to the overall efficiency and longevity of the system, reducing the need for frequent maintenance and replacement.

General Electric has a longstanding reputation for producing high-quality industrial components, and the DS200SSRAG1A is no exception. The card is designed to meet rigorous industry standards, ensuring that it performs reliably even in demanding applications. Its construction reflects GE's commitment to quality, with attention to detail in both design and manufacturing processes. This ensures that each card meets the high expectations of customers who rely on GE products for their critical industrial operations.

In summary, the DS200SSRAG1A is a highly reliable and efficient Solid State Relay Card, essential for controlling relay operations within the Drive Control series of systems. With its +5 V DC power requirements, 28 V DC power supply voltage, and robust operating temperature range of -35 to +65°C, it is well-suited for a variety of industrial applications. The card’s compact dimensions and lightweight design make it easy to install and maintain, while its solid-state construction ensures long-term durability and reliable performance. Manufactured by General Electric, a leader in industrial technology, the DS200SSRAG1A offers a dependable solution for managing relay functions in complex control systems, contributing to the overall stability and efficiency of the system. Whether used in new installations or as a replacement component, this relay card is a valuable asset in any industrial environment requiring precise and reliable control of electrical signals.
