DS200SVAAG1A | General Electric Mark V Voltage Attenuator Card
- Regular price
- $2,698.00
- Sale price
- $2,698.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS200SVAAG1A
Description
The DS200SVAAG1A Voltage Attenuator Card was manufactured by General Electric, for use in the Mark V Series of turbine control systems.
Technical Specifications
Brand | General Electric |
Category | Drives |
Part Number | DS200SVAAG1A |
Subcategory | Drive Board |
Series | Mark V |
Functional Description | Voltage Attenuator Card |
Functional Acronym | SVAA |
PCB Coating | Normal Coating |
Functional Revision 1 | A |
Power supply voltage | 28 V dc |
Technology | Surface mount |
Operating temperature | -30 to +65 degrees Celsius |
Size | 15.9 cm high x 17.8 cm |
Information About DS200SVAAG1A

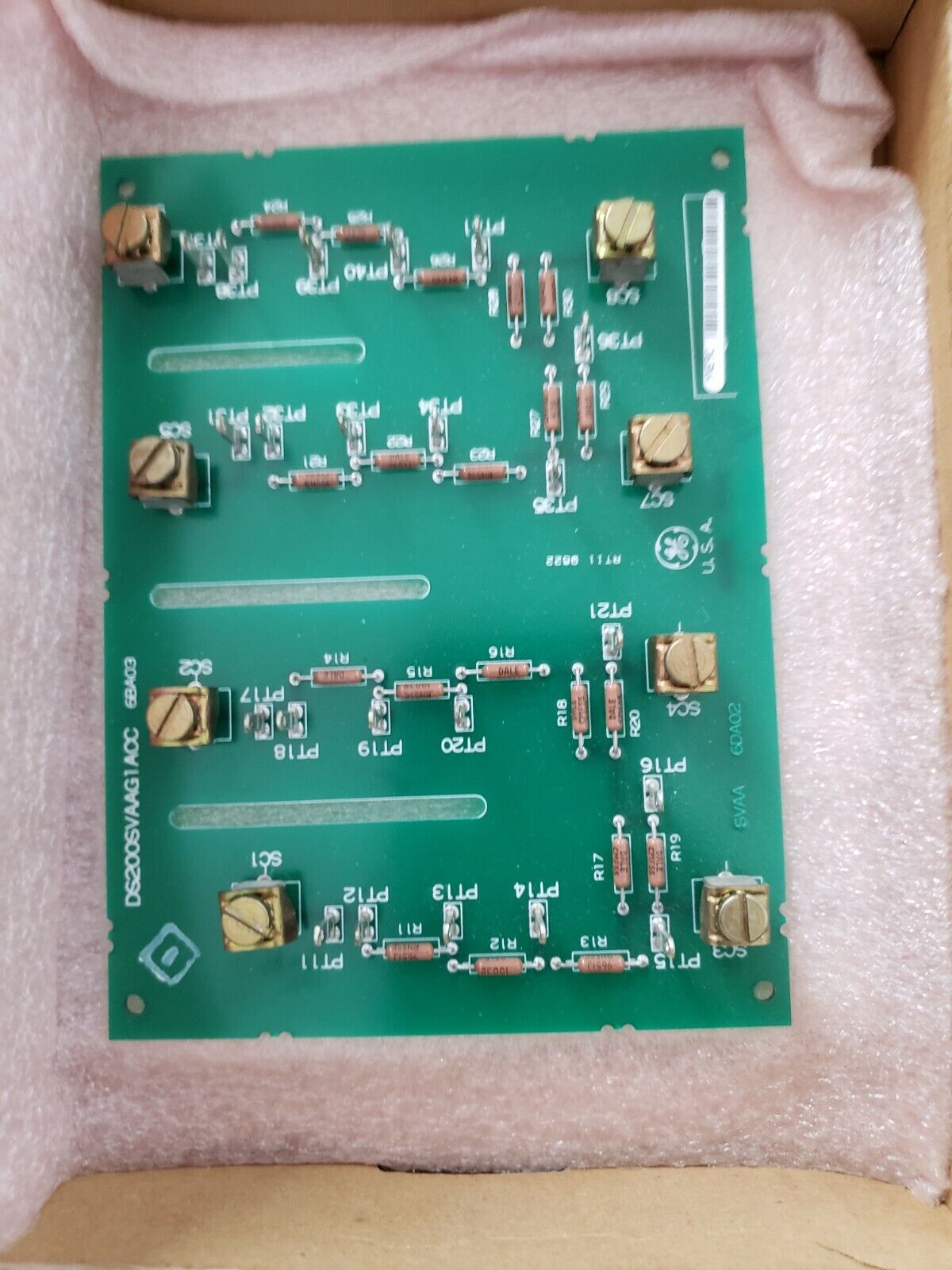

The GE Voltage Attenuator Board DS200SVAAG1A features multiple test points and eight terminals for attaching cables. The terminals on the GE Voltage Attenuator Board DS200SVAAG1A are assigned numbers prefixed with the SC designation. For example, the first three terminals are identified as SC1, SC2, and SC3.
The tests points on the board are useful if you at all suspect that the board is not working or is experiencing intermittent problems. Only a qualified servicer can use the test points with qualified testing equipment. However, if you suspect a problem, it is best practice to first use the diagnostic tools available on the drive. The diagnostics tool will produce a report listing the components and how they are performing. It can be used to spot problems or areas that can be fine tuned for improvement.
The drive has a control panel that includes a two-line display and also a keyboard for selecting options and scrolling through menu choices. The menu choices are divided into two types. Most are used to access areas of the configuration for editing and viewing. The configuration sets the parameters that define how the drive operates and it can be modified from the control panel. Other menu choices enable you to select to run the diagnostic tools. After the tool produces a report, you can download it to a laptop or other device. You can store the file for future use which might be useful to compare the results of the diagnostics after a repair is performed.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
