DS200TBCAG1AAB | General Electric Mark V Analog I O Terminal Board
- Regular price
- $1,957.00
- Sale price
- $1,957.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DS200TBCAG1AAB
Description

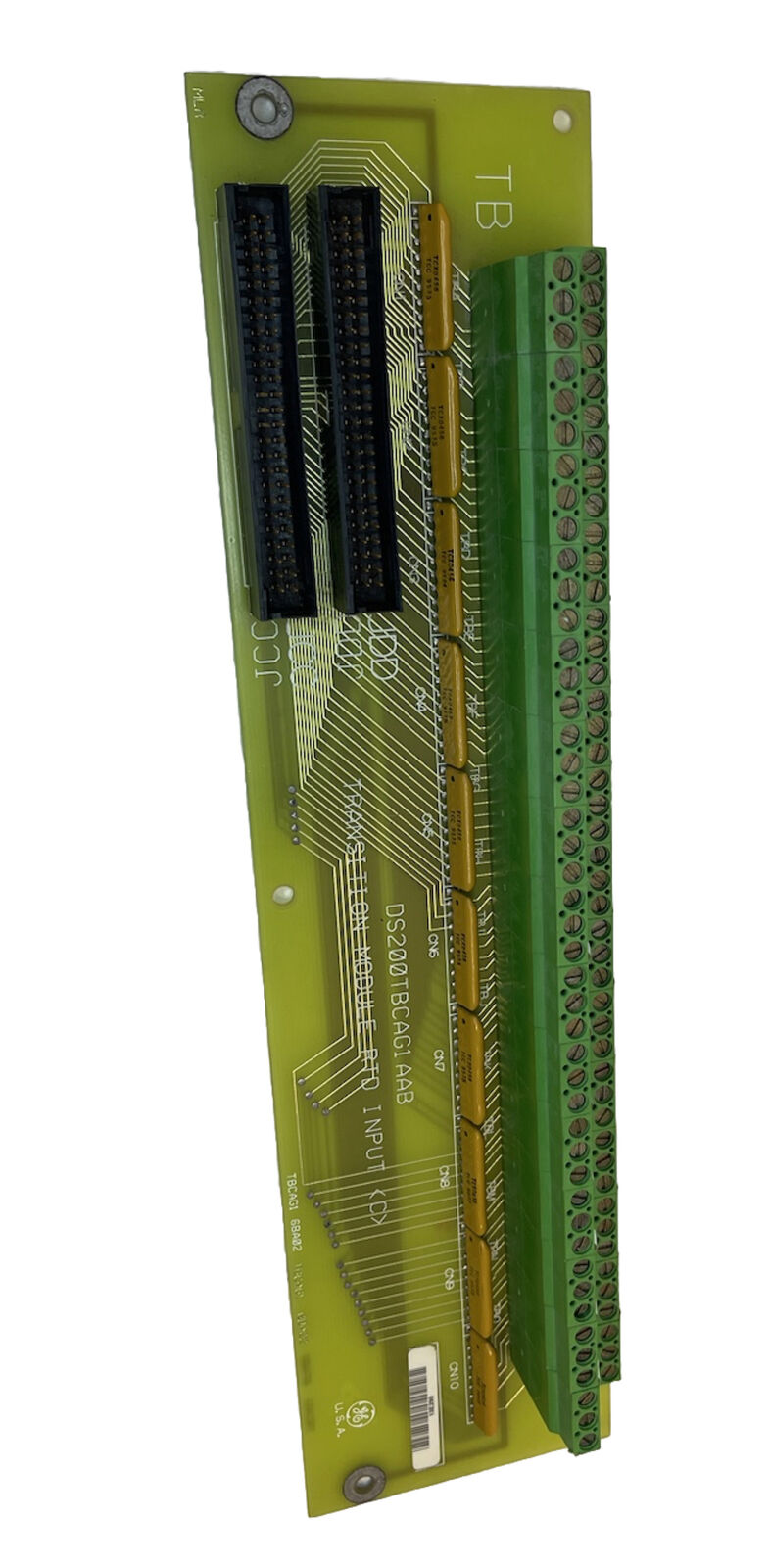

The GE DS200TBCAG1AAB is an analog I/O terminal board designed for signal termination and routing in Mark V turbine control systems. It provides high-density terminal connections and interfaces analog field wiring with the control electronics of the drive system.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | General Electric |
| Category | PLCs/Machine Control |
| Part Number | DS200TBCAG1AAB |
| Subcategory | Control System Terminal Board |
| Series | Mark V |
| Functional Acronym | TBCA |
| Functional Description | Analog I/O Terminal Board |
| Terminal Blocks | 2 blocks of 90 signal terminals |
| Board Connectors | 2 × 50-pin connectors |
| PCB Coating | Normal Coating |
| Functional Revision 1 | A |
| Functional Revision 2 | A |
| Artwork Revision | B |
Information About DS200TBCAG1AAB
The DS200TBCAG1AAB is a General Electric terminal board developed for Mark V turbine and drive control systems. It serves as the primary termination point for analog input and output field wiring, allowing signals to be routed between external devices and the control electronics. The board is designed for straightforward replacement by transferring existing signal wires directly to the corresponding terminal blocks. It is typically installed in high-energy drive systems where proper isolation, wiring organization, and secure signal termination are critical.
Key Features
- Mark V system compatibility: Designed specifically for GE Speedtronic Mark V turbine and drive control platforms.
- High-density signal termination: Provides two 90-point terminal blocks to accommodate extensive analog field wiring.
- Dual 50-pin interface connectors: Enables reliable connection between the terminal board and control electronics.
- Service-friendly replacement design: Allows direct transfer of signal wiring during board replacement procedures.
- Normal PCB coating protection: Helps safeguard circuitry against dust and environmental contaminants.
- Revision-controlled configuration: Clearly defined functional and artwork revisions support system compatibility tracking.
- Industrial safety integration: Intended for use in high-energy drive systems requiring qualified service procedures.
The DS200TBCAG1AAB delivers the reliability and precision required for analog signal termination and routing in GE Mark V turbine control systems.
