DS200TBQDG1AFF | General Electric RST Extension Terminal Board
- Regular price
- $5,464.00
- Sale price
- $5,464.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS200TBQDG1AFF
Description
The DS200TBQDG1AFF RST Extension Terminal Board was manufactured by General Electric, for the Mark V Series of turbine control systems.
Technical Specifications
Brand | General Electric |
Category | PLCs/Machine Control |
Part Number | DS200TBQDG1AFF |
Subcategory | PC Board PLC/Add-On Board |
Series | Mark V |
Functional Description | RST Extension Terminal Board |
Functional Acronym | TBQD |
PCB Coating | Normal Coating |
Functional Revision 1 | A |
Functional Revision 2 | F |
Artwork Revision | F |
Information About DS200TBQDG1AFF

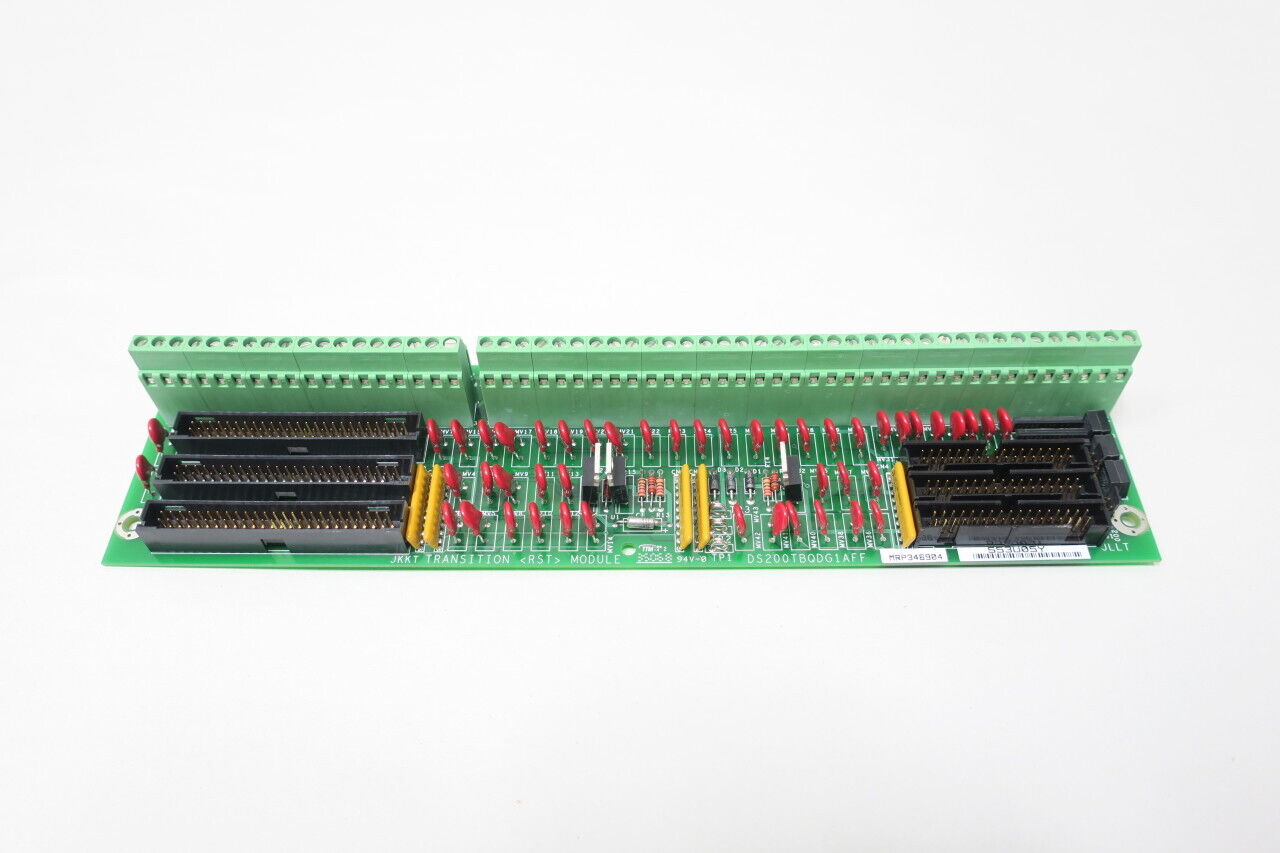

The GE RST Extension Analog Termination Board DS200TBQDG1AFF features 2 terminal blocks. Each block contains 107 terminals for signal wires. The GE RST Extension Analog Termination Board DS200TBQDG1AFF also contains multiple test points, 2 jumpers, and 3 34-pin connectors. The GE RST Extension Analog Termination Board DS200TBQDG1AFF is populated with 3 test points that a qualified servicer can use to test the individual circuits of the board. The test points have IDs TP1, TP2, and TP3. Before the test points can be tested, the testing instrument must be qualified for the purpose and it must be fully calibrated to test the functionality of the circuit. The probes attached to it must be compatible with the tester and all settings on the instrument must be appropriate for the task.
If the testing instrument does not find a definitive problem with the board, you can use the diagnostic tools provided with the drive. The keypad on the drive is used to access the diagnostic tools. It can also be used by an operator to change the behavior of the drive. The operator can stop the motor or start it. The operator can also change the direction of the motor and change the speed of the motor. You will find that keys on the keypad are labelled to indicate the action caused when you press the key. Some keys enable you to access a user-interface that gives you access to the diagnostic tools. The user-interface provides a menu list of actions.
