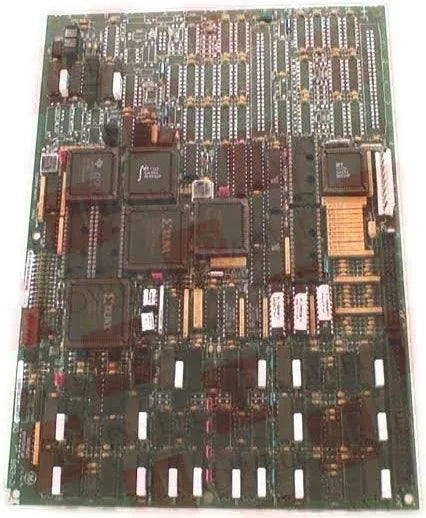

DS200TCCBG8B | General Electric Analog I/O Board
- Regular price
- $4,729.00
- Sale price
- $4,729.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS200TCCBG8B
Description
Common Extended Analog I/O Board DS200TCCBG8B is one of the Mark V models produced by General Electric that is used in the R5 core in location three. This model will provide conditioning and scaling for additional analog I/O signals.
Technical Specifications
Brand | General Electric |
Category | Drives |
Part Number | DS200TCCBG8B |
Subcategory | Drive Board |
Series | SPEEDTRONIC Mark V LM Turbine Control |
Common Revisions | BED |
Product Type | Common Extended Analog I/O Board |
Abbreviation | TCCB |
Programmable EEPROMs | Qty 2 |
Information About DS200TCCBG8B
Model DS200TCCBG8B as a Common Extended Analog I/O Board produced by General Electric for the Speedtronic Mark V series. When operating within the R5 core, the location of that model is in the third location of the core; it will be used to provide conditioning and scaling functions for additional analog I/O signals. The additional analog signals come from the 4-20 mA and RTD Input Terminal Module (TBCB) from the R5 core, with the other signals coming from the Protective Termination Expander Board (TCEB) located in the P1 core. Some of the signals included are bus and generator voltage inputs and line current inputs. When the DS200TCCBG8B model has completed the conditioning and scaling of the model, the signals will be sent to the Turbine Communication Board (STCA) through the 3PL connector.
As mentioned above, the DS200TCCBG8B model will send the appropriate signals through its connectors. There are eight connectors used with the TCCB model. These connectors are labeled as JMP, JTEST, TCQPL, JKK, JII, JHH, 2PL, and 3PL. All of the connectors have individual functions to aid in the operation of the DS200TCCBG8B model. The JMP connector on the TCCB model is used to carry potential and current transformer signals from the TCEB board that is used in the P1 core. This connector is just one of many; for the remaining connector functions refer to chapter four page twelve of the GEH-6153 Instruction Manual.
The TCCB model can condition and scale RTD inputs, when these inputs have been conditioned and scaled properly rather than being sent to the STCA model the RTD signals will be sent to the I/O engine, also through the 3PL connector. The RTD type can be selected through the I/O configuration constants.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
