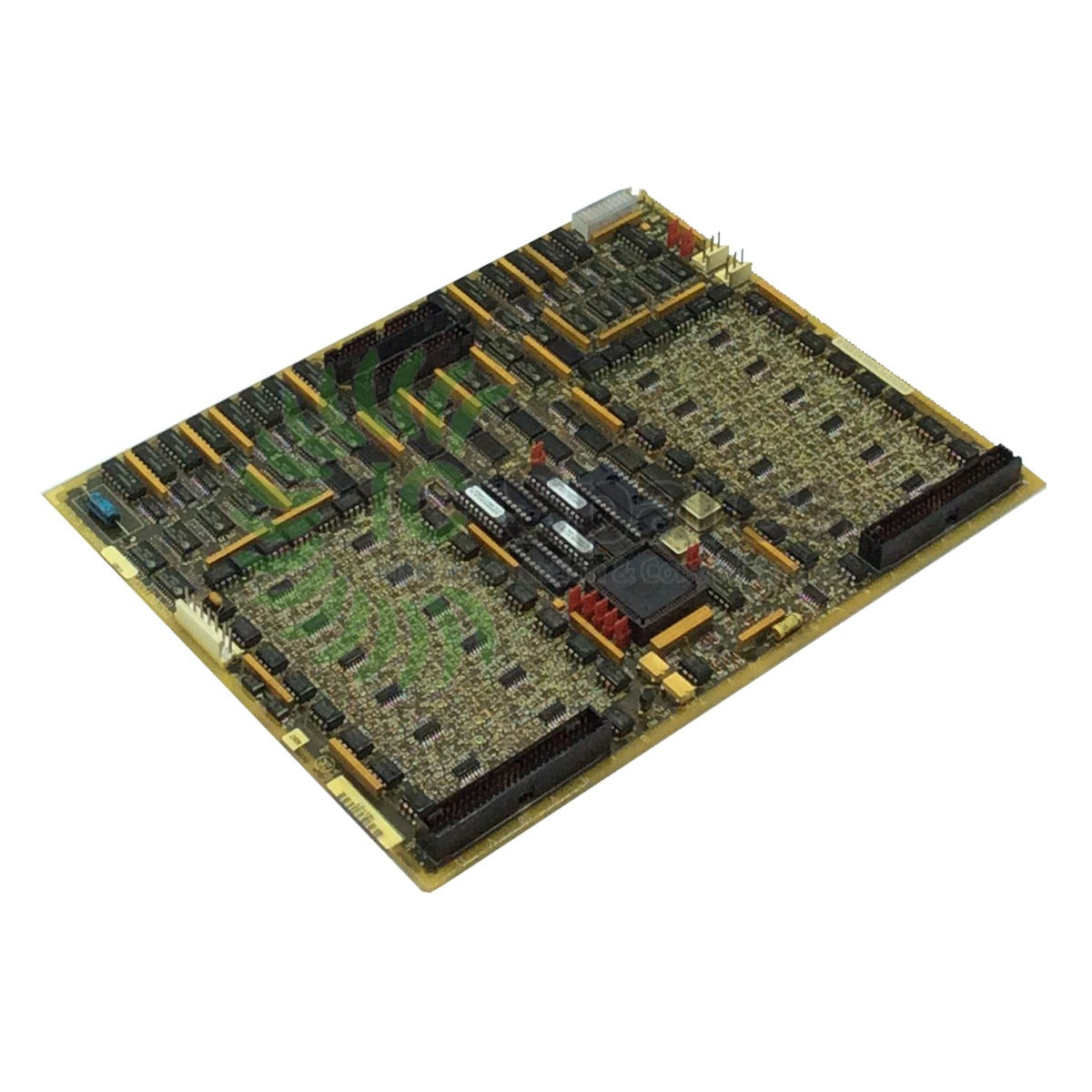

DS200TCDAG1A | Ge Fanuc Digital I/O Board Mark V
- Regular price
- $5,909.00
- Sale price
- $5,909.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DS200TCDAG1A
Description
The DS200TCDAG1A printed circuit board is a component of General Electric's Mark V Series turbine control systems, designed specifically as a Digital I/O Board, denoted by its TCDA functional acronym. This iteration, DS200TCDAG1A, represents a modified version of the original DS200TCD Digital I/O Board, featuring an A-rated functional product revision.
Technical Specifications
|
Manufacturer |
GE General Electric |
|
Series |
Speedtronic Mark V LM Turbine Control |
|
Part Number |
DS200TCDAG1A |
|
Abbreviation |
TCDA |
|
Product Type |
Digital I/O Board |
|
On-board Configurable Hardware |
Eight Jumpers (J1-J8) |
|
Software |
I/O Configuration Editor |
|
Weight |
1 lb 7 oz |
|
Instruction Manual |
GEH-6153 |
Information About DS200TCDAG1A
The DS200TCDAG1A printed circuit board is an integral component of General Electric's Mark V Series turbine control systems, specifically designed as a Digital I/O Board, identified by its TCDA functional acronym. It represents a modified version of the original DS200TCD Digital I/O Board, incorporating an A-rated functional product revision.
The DS200TCDAG1A Digital I/O Board is tailored to process digital contact input signals from corresponding terminal boards within its application environment. It is equipped with essential hardware components, including a microprocessor, multiple programmable read-only memory (PROM) modules, and a block of 10 LED lights. The board features two 50-pin connectors for interfacing purposes, along with 8 jumpers and a visible green LED indicator located on its side. The PROM modules are socketed for ease of replacement, facilitated by specialized hand tools designed for their installation and removal.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
