DS200TCDAH1B | General Electric Digital I/O Board Mark V
DS200TCDAH1B | General Electric Digital I/O Board Mark V
Part #: DS200TCDAH1B Manufactured by: General Electric

DS200TCDAH1B | General Electric Digital I/O Board Mark V

Regular price
$6,689.00
Sale price
$6,689.00
Regular price
Never Used Surplus
1 in Stock
Product Overview
DS200TCDAH1B is a digital input/output circuit board and is part of the GE Speedtronic MKV gas turbine control.
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: DS200TCDAH1B
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for General Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
DS200TCDAH1B | General Electric Digital I/O Board Mark V
    DS200TCDAH1B | General Electric Digital I/O Board Mark V
DS200TCDAH1B | General Electric Digital I/O Board Mark V
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: DS200TCDAH1B

Description / Specifications

Description

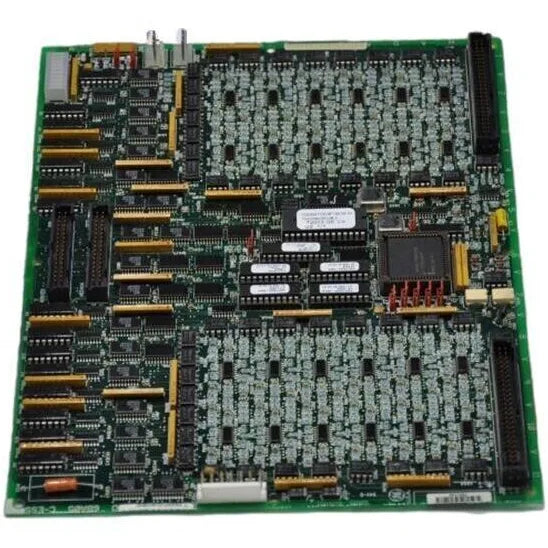

DS200TCDAH1B is a GE Speedtronic Mark V Digital I/O Board. The DS200TCDAH1B is equipped with multiple PROM modules and a single microprocessor. The DS200TCDAH1B terminates and conditions all digital inputs and contact inputs. The DS200TCDAH1B transmits through the IONET network after processing the digital inputs.



Technical Specifications



Brand General Electric
Series Mark V
Part Number DS200TCDAH1B
Product Type Digital I/O Board





Information About DS200TCDAH1B

The GE Digital I/O Board DS200TCDAH1B features one microprocessor and multiple programmable read only memory (PROM) modules. It also contains 1 block of 10 LEDs and 2 50-pin connectors. The GE Digital I/O Board DS200TCDAGH1B also is populated with 8 jumpers and 1 LED that is visible from the side of the board. The GE Digital I/O Board DS200TCDAH1B also features 2 3-pin connectors. One 3-pin connector has the ID JX1 and the other has the ID JX2.

The IDs assigned to the 8 jumpers are prefixed with JP. For example, one jumper is assigned the ID JP1. Another jumper is assigned the ID JP2, and so on. The test points also have a prefix assigned to the IDs. The prefix for the test points is TP. For example, one test point is assigned the ID TP1. Another test point is assigned the ID TP2. With the use of a qualified testing device, a servicer can test the individual circuits on the board and pinpoint a fault that might be repairable.

DS200DTBA and DS200DTBB are other boards that are installed in the drive. And both receive signals from the GE Digital I/O Board DS200TCDAH1B through the 50-pin connectors. One 50-pin connector is assigned ID JQ and the other 50-pin connector is assigned ID JR. Connector JQ connects to the JQR connector on DS200DTBA. 50-pin ribbon cables provide the signals between the boards. Connector JR receives the contact input signal from DS200DTBB.

The DS200TCDAH1BGD General Electric Digital I/O Board features one microprocessor and multiple programmable read-only memory (PROM) modules. It also contains 1 block made up of 10 LED lights and a pair of 50-pin connectors along with 8 jumpers and 1 green LED that is visible from the side of the board. The PROM modules are removable from the board and they reside in a socket embedded on the board. When replacing the board or if you are in the process of replacing the PROM module for any reason, you can obtain a hand tool that is expressly designed for removing and installing the PROM modules.

It is important to remember that the PROM module is easily corrupted or destroyed by static buildup. Protect yourself and the equipment by always wearing a wrist strap when you work on the board or any other board or component in the drive. When the wrist strap is connected to a metal desk or chair, the static is attracted to the grounded object and leaves your body and the board.

The DS200TCDAH1B General Electric Digital I/O Board features one microprocessor and multiple programmable read-only memory (PROM) modules. It also contains 1 block made up of 10 LED lights and a pair of 50-pin connectors along with 8 jumpers and 1 green LED that is visible from the side of the board. The PROM modules are removable from the board and they reside in a socket embedded on the board.

When replacing the board or if you are in the process of replacing the PROM module for any reason, you can obtain a hand tool that is expressly designed for removing and installing the PROM modules. It is important to remember that the PROM module is easily corrupted or destroyed by static buildup. Protect yourself and the equipment by always wearing a wrist strap when you work on the board or any other board or component in the drive. When the wrist strap is connected to a metal desk or chair, the static is attracted to the grounded object and leaves your body and the board.
