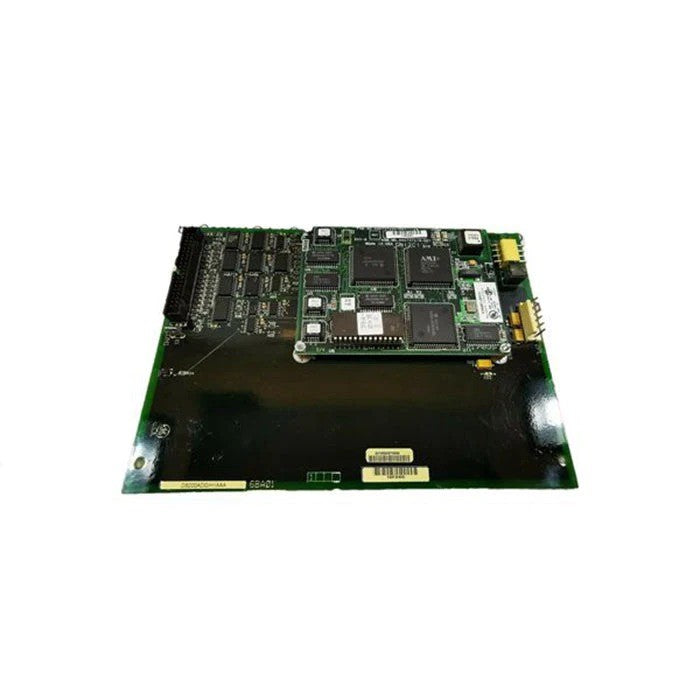

DS200TCEAG1ADB | General Electric Emergency Over Speed Boardf
DS200TCEAG1ADB | General Electric Emergency Over Speed Boardf

DS200TCEAG1ADB | General Electric Emergency Over Speed Boardf

Part #: DS200TCEAG1ADB Manufactured by: General Electric
Regular price
$4,810.00
Sale price
$4,810.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The DS200TCEAG1ADB is an Emergency Overspeed Board designed for turbine control in GE's Mark V series. It monitors turbine...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: DS200TCEAG1ADB
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for General Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
DS200TCEAG1ADB | General Electric Emergency Over Speed Boardf
    DS200TCEAG1ADB | General Electric Emergency Over Speed Boardf
DS200TCEAG1ADB | General Electric Emergency Over Speed Boardf

Product Description P/N: DS200TCEAG1ADB

Description / Specifications

Description

The DS200TCEAG1ADB is an Emergency Over Speed Board designed for use in turbine control systems. It provides over-speed protection by monitoring and detecting excessive turbine speeds, ensuring system safety. The board is engineered for integration into GE control systems to prevent turbine damage during over-speed conditions.



Technical Specifications

Part #

DS200TCEAG1ADB

Category

Controls & Indicators

Subcategory

CPU/Control Board (Overspeed Board)

Series

Mark V

Application

Turbine Control

Features

Multi Input/Output, On-Board RAM





Information About DS200TCEAG1ADB

The General Electric DS200TCEAG1ADB is a highly specialized CPU/control board, categorized as an overspeed board, designed for turbine control applications within the Mark V series. As part of the controls and indicators category, this board plays a critical role in ensuring the safe and efficient operation of turbines by providing protection from overspeed conditions. Its multi-input/output capability, combined with on-board RAM, makes it an essential component in high-reliability industrial control systems where precise monitoring and rapid response are required to maintain operational integrity.

The primary function of the DS200TCEAG1ADB is to monitor and manage the speed of turbines, specifically safeguarding against overspeed conditions that can cause severe mechanical damage or even catastrophic failure of the turbine. In the event that the turbine exceeds its designated speed threshold, the DS200TCEAG1ADB activates protective measures, either by triggering a controlled shutdown or adjusting the system parameters to bring the speed back within safe operational limits. This ability to provide real-time protection ensures that turbines operate within their designed specifications, reducing the risk of damage and extending the operational life of the equipment.

As part of the Mark V control system, the DS200TCEAG1ADB is designed to integrate seamlessly into GE's advanced turbine control infrastructure. The Mark V series is widely used in industries such as power generation, oil and gas, and manufacturing, where turbines form the backbone of critical processes. The DS200TCEAG1ADB plays a key role in these environments by providing the necessary speed regulation and overspeed protection, ensuring that the turbine operates safely and efficiently, even under dynamic load conditions.

The board’s multi-input/output feature enhances its flexibility, allowing it to interface with various sensors and control systems. This capability is crucial in turbine control applications, where multiple inputs such as speed sensors, pressure transducers, and other monitoring devices feed data to the control system. The DS200TCEAG1ADB processes this data in real-time, using its integrated control logic to determine the appropriate response to changing conditions. The multi-input/output design ensures that the board can handle a variety of signals and interact with other system components, making it an adaptable solution for complex control environments.

One of the critical features of the DS200TCEAG1ADB is its on-board RAM, which enables the board to store and process large amounts of data quickly. This capability is essential for real-time monitoring and control, as the board must be able to rapidly process inputs and execute commands without delay. The on-board RAM ensures that the board can handle high volumes of data, allowing for efficient and accurate speed regulation and system protection. The presence of on-board RAM also enhances the board’s ability to perform diagnostic functions, enabling system operators to monitor performance and identify potential issues before they escalate into serious problems.

Durability and reliability are key considerations in the design of the DS200TCEAG1ADB. Turbine control systems operate in challenging environments, often exposed to high temperatures, vibration, and other harsh conditions. The board is engineered to withstand these demanding environments, ensuring long-term reliability and consistent performance. Its robust construction reduces the likelihood of failure, which is critical in industries where system downtime can result in significant financial losses or safety hazards.

The DS200TCEAG1ADB is also designed for ease of integration into existing systems. Its standard form factor and connections ensure that it can be installed as part of new installations or as a replacement in older systems. The board’s design allows for straightforward configuration, reducing setup time and ensuring that the system can be quickly brought online. Once installed, the board operates autonomously, requiring minimal intervention from system operators, though it provides real-time data and diagnostic information that can be accessed for monitoring and troubleshooting.

In terms of application, the DS200TCEAG1ADB is primarily used in turbine control systems, where its overspeed protection function is critical to maintaining safe and reliable operations. Turbines are often operated under variable load conditions, and the ability to monitor and control speed is essential for ensuring that they perform optimally without exceeding their design limits. In power plants, for example, turbines must adjust to changing demand levels, and the DS200TCEAG1ADB helps regulate these adjustments while preventing unsafe operating conditions. Its use extends to a range of industries where turbines are employed, ensuring the safe operation of both gas and steam turbines in various power generation and process control environments.

In summary, the General Electric DS200TCEAG1ADB is a specialized CPU/control board designed for overspeed protection in turbine control systems. Its key features, including multi-input/output capabilities and on-board RAM, enable it to process real-time data efficiently and interact with various system components for comprehensive speed monitoring and control. As part of the Mark V series, the board is designed to integrate seamlessly into GE’s turbine control systems, offering reliable performance and critical safety functions. Its robust construction ensures long-term durability in challenging industrial environments, making it an essential component for maintaining the safety, efficiency, and operational longevity of turbines. Whether used in power generation, oil and gas, or other heavy industries, the DS200TCEAG1ADB provides the precise control and protection required to safeguard turbines from overspeed conditions.



Manufacturer information


General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
