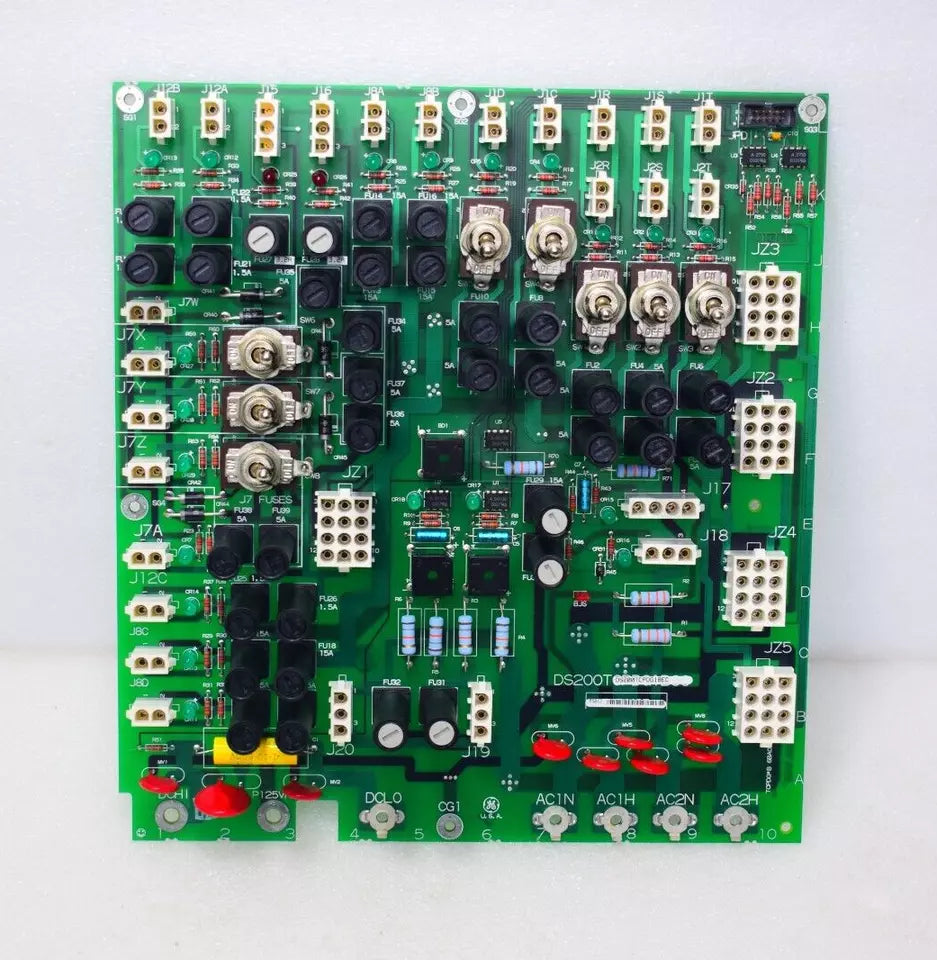

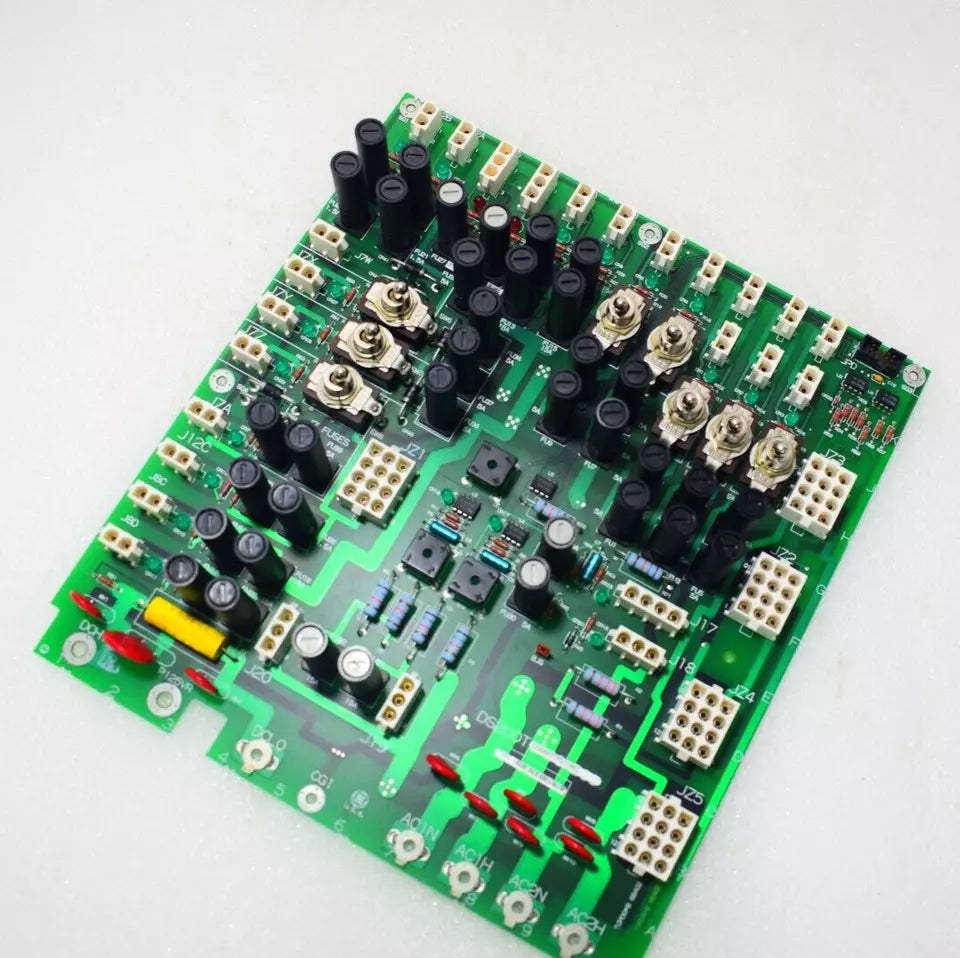

DS200TCPDG1BEC | General Electric Power Distribution Board Mark V

Description

The DS200TCPDG1BEC is a Power Distribution Board from General Electric’s Mark V series, used in turbine control systems. It efficiently distributes electrical power to various components, featuring robust design for reliability and protection in demanding environments.

Technical Specifications

Information About DS200TCPDG1BEC

The General Electric DS200TCPDG1BEC Power Distribution Board is a critical component within the Mark V series, designed to manage and distribute power efficiently across a control system. This board serves as a power distribution card, ensuring that electrical power is reliably and accurately routed to various parts of the system, which is essential for maintaining stable operation and performance.

The DS200TCPDG1BEC is built to handle complex power distribution needs in industrial environments. It is engineered to ensure that power is evenly distributed to different system components, reducing the risk of power-related issues and enhancing the overall reliability of the control system. This board is an integral part of the Mark V series, known for its robustness and reliability in demanding industrial applications.

One of the key features of the DS200TCPDG1BEC is its functional acronym, TCPD, which stands for Power Distribution Card. This indicates its primary role in managing and distributing electrical power within the control system. The board is designed with a normal coating style, providing standard protection against environmental factors and ensuring durability in various operating conditions.

The DS200TCPDG1BEC is designed with a specific functional revision history that includes the first functional revision B and the second functional revision E. These revisions reflect the board's evolution and improvements over time, enhancing its performance and reliability. The artwork revision C indicates the most recent updates to the board's design and layout, ensuring that it meets the latest standards and requirements.

In terms of physical characteristics, the DS200TCPDG1BEC is a printed circuit board (PCB) that integrates seamlessly into the Mark V control system. Its design allows for straightforward installation and integration, making it an efficient solution for power distribution within complex control environments. The board's construction and layout are optimized to handle high-power loads and ensure stable power delivery to connected components.

Overall, the General Electric DS200TCPDG1BEC Power Distribution Board is a vital component in the Mark V series, providing essential power management functions for industrial control systems. Its robust design, standard coating, and functional revisions make it a reliable choice for ensuring efficient and stable power distribution in demanding applications.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
