DS200TCPDG2B | General Electric Power Distribution Board
- Regular price
- $9,775.00
- Sale price
- $9,775.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS200TCPDG2B
Description

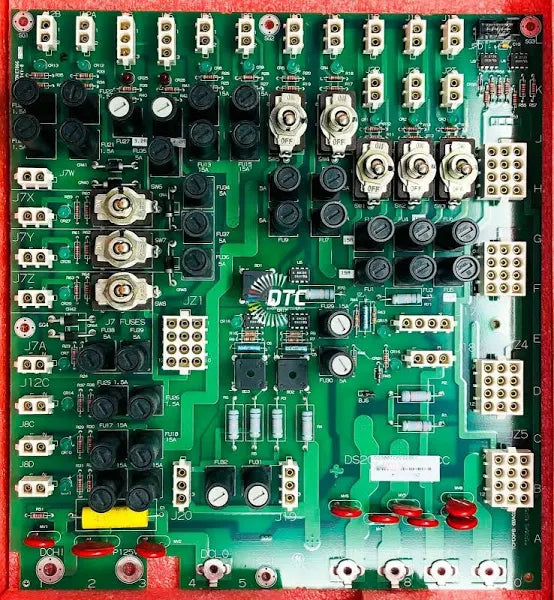

The GE Power Distribution Board DS200TCPDG2B is equipped with 8 toggle switches, 36 fuses, and 4 signal wire terminals. Additionally, it features 36 OK LEDs and 1 10-pin connector. The accompanying installation instructions outline the configuration of the signal wire terminals, detailing their functions and the corresponding signal wire attachments. Each terminal, labeled with an ID such as AC1N, AC1H, AC2N, and AC2H, requires precise wire tagging to ensure proper installation. Replacement of the board entails transferring wires from the original to the replacement board, adhering to the same terminal connections. Wire removal involves loosening the terminal screws with a screwdriver, tagging each wire with its associated terminal ID, and securing them in place on the replacement board. Testing the wire connections involves gently tugging each wire to confirm secure attachment.
Technical Specifications
Manufacturer |
GE General Electric |
Series |
Mark V |
Part Number |
DS200TCPDG2B |
Functional Description |
Power Distribution Module |
Functional Acronym |
TCPD |
PCB Coating |
Normal Coating |
Functional Revision 1 |
B MARK 5 |
Additional Function |
Turbine Control |
Additional Function |
Multi Input/Output |
Additional Function |
On-board RAM |
Information About DS200TCPDG2B
The GE Power Distribution Board DS200TCPDG2B is equipped with 8 toggle switches, 36 fuses, and 4 signal wire terminals. Additionally, it features 36 OK LEDs and 1 10-pin connector. The accompanying installation instructions provide comprehensive details regarding the signal wire terminals, including their functions and the appropriate signal wire attachments. Each terminal, identified by an associated ID such as AC1N, AC1H, AC2N, and AC2H, necessitates precise wire tagging for proper installation.
During replacement, determining the signal wires to attach to the terminals is unnecessary. The installer must simply transfer the same wires to the corresponding terminals on the replacement board. Initially, the installer should inspect the signal wire terminals and tag each wire with the corresponding terminal ID. A secure tag resistant to detachment should be utilized for this purpose.
The wires are secured within the terminal using screws. To release the wires, the installer must loosen the screws using a screwdriver, freeing each signal wire from its terminal. Once all signal wires are detached, installation of the replacement signal wires involves opening the terminals by loosening the screws, inserting the wires, and subsequently tightening the screws. Finally, the installer should gently tug on each signal wire to confirm its secure attachment.
