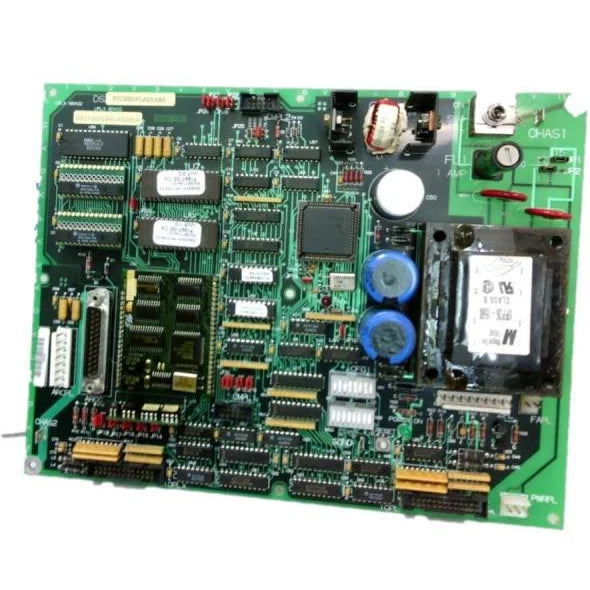

DS200UPLAG1B | General Electric Mark V LAN Power Supply Card

Description

The DS200UPLAG1B LAN Power Supply Card was manufactured by General Electric, for use in the Mark V Series of turbine control systems.

Technical Specifications

Information About DS200UPLAG1B

The GE LAN Power Supply Circuit Board DS200UPLAG1B contains two 26-pin connectors, 1 fuse, and 1 toggle switch. The board also has 1 reset button and 1 8-pin connector. The reset button on the GE LAN Power Supply Circuit Board DS200UPLAG1B can be used to restart the board when the board begins to behave erratically or have intermittent problems during normal operation. It enables you to restart the board without restarting the drive and so requires less time and expense. Because of the high-voltage conditions in the drive, only qualified persons should use the restart button. Open the board cabinet on the drive and locate the restart button on the board. Without touching any other components, press the button for a few seconds. Then, release the button. The board will restart and will resume normal operation.

The board is 8.5 inches by 11 inches and is a standard size of boards that are installed in the drive. The boards are installed in the rack in the board cabinet and are secured in place with screws in each of the four corners. Matching holes are in the rack and enable you to align the holes and secure the board with screws.

Before you install the board consider that the board has 17 jumpers and 16 switches that are used to configure the board. The switches are arranged in two blocks of 8 switches and have an ON and OFF position. The jumpers can be repositioned over another set of pins.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
