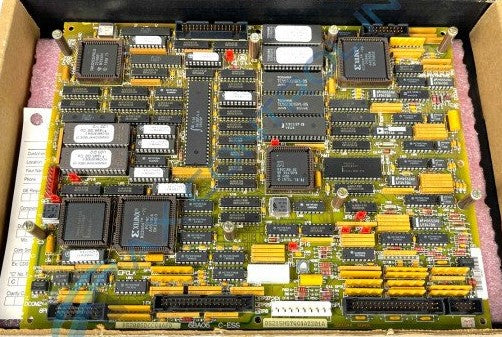

DS215MSTQG4AZZ01A | General Electric Power Supply Module

Description

The DS215MSTQG4AZZ01A circuit board is integral to General Electric's Mark V Speedtronic system, developed for the efficient control of industrial gas and steam turbine systems. Originating in the 1960s with the Mark I, the Speedtronic line has evolved to offer increasingly sophisticated features, culminating in the Mark V, which supports both TMR and Simplex configurations for diverse turbine system sizes.

Functioning as a power supply board within the Mark V system, the DS215MSTQG4AZZ01A is one variant of several available power supply boards. Its design incorporates a multitude of components, including FPGAs, integrated circuits, resistor network arrays, jumper switches, and various board connectors. These connectors facilitate interfacing with other components and optional daughter boards, which can be mounted onto pre-installed standoffs on the board's surface.

Technical Specifications

Information About DS215MSTQG4AZZ01A

The DS215MSTQG4AZZ01A circuit board functions as part of General Electric’s Mark V Speedtronic system. Speedtronic turbine control systems were designed for the reliable management of industrial gas and steam turbine systems. While GE began the Speedtronic line in the 1960s with the Mark I, these systems became increasingly more sophisticated as time went on. The Mark V offers users the ability to create either a TMR or a Simplex system, allowing its use for both large and small turbine systems.

The DS215MSTQG4AZZ01A functions as a power supply board for the Mark V system. Please note this is only one version of the power supply board available, so be sure you are ordering the correct PS board for your application. This board is heavily populated with components that include FPGAs and other integrated circuits, resistor network arrays, jumper switches, and a number of different board connectors. The connectors help the board interface with other components and with the optional daughter boards that will mount to standoffs already installed on the board’s surface. The board is marked with the GE logo and with several codes that will help with installation and wiring.
