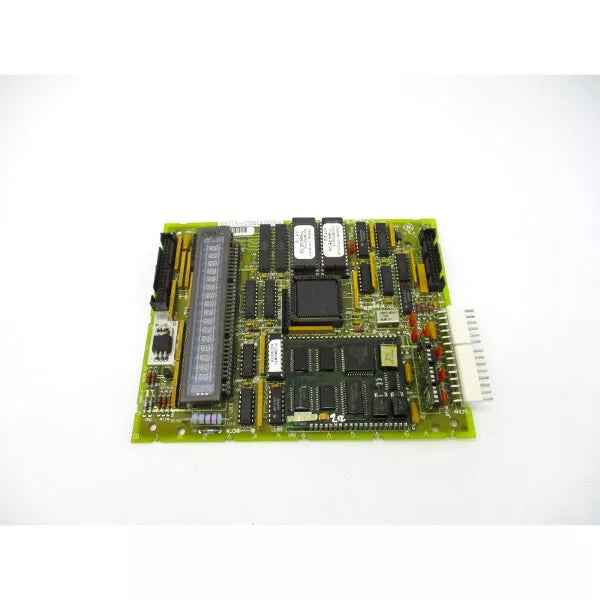

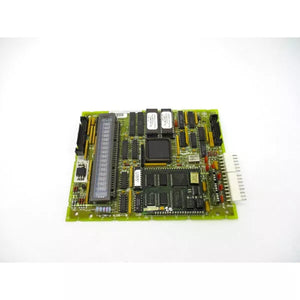

DS215SLCCG1AZZ01B | General Electric LAN Communication Board
- Regular price
- $5,392.00
- Sale price
- $5,392.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS215SLCCG1AZZ01B
Description
The DS215SLCCG1AZZ01B LAN Communication Board was manufactured by General Electric, for the Mark V Series of turbine control systems.
Technical Specifications
Brand | General Electric |
Category | Drives |
Part Number | DS215SLCCG1AZZ01B |
Subcategory | Control/Interface Board |
Series | Mark V |
Functional Description | LAN Communications Card |
Functional Acronym | SLCC |
PCB Coating | Normal Coating |
Functional Revision 1 | A |
Functional Revision 2 | Z |
Artwork Revision | Z |
Operating System | QNX |
Power supply voltage | 24 V dc |
Mounting | DIN-rail mounting |
Technology | Surface mount |
Operating temperature | 40 to 70 degrees Celsius |
Information About DS215SLCCG1AZZ01B
DS215SLCCG1AZZ01B is a LAN communication board designed by General Electric for their Mark V board series. Local area network (LAN) communications are performed by the isolated and non-isolated circuits found on the board. Drive communications via a local network are executed using this LAN card. Featured on the card are a principle microprocessor as well as system memory space. This board is capable of communicating via DLAN and ARCNET local networks.
The board features a LAN control processor, or LCP, that executes system communications. Network communications to and from the DS215SLCCG1AZZ01B are processed using this LCP. Two EPROM slots serve as onboard storage for the LCP software. Communications between the drive control processor (DCP) and the LCP occur in dedicated RAM memory space. A number of connections are available on the board to allow interfacing with a variety of system features. Position 2PL serves as the power supply connection while 3PL provides an input point for the drive’s control card. 10PL provides a LAN I/O terminal board connection for the LCP. DLAN and ARCNET communications are possible using the ARCPL connection. A module programmer and alphanumeric keypad provides users with system access to diagnostics and settings.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
