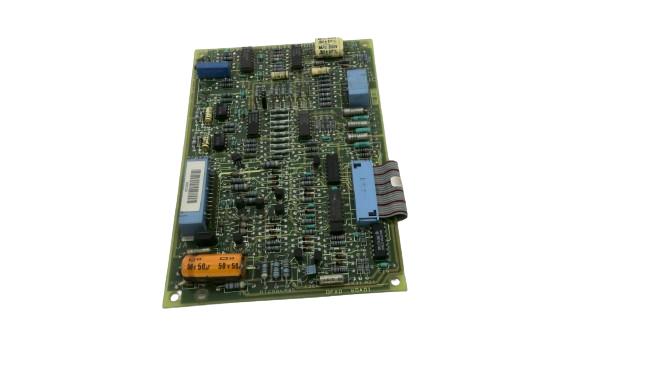

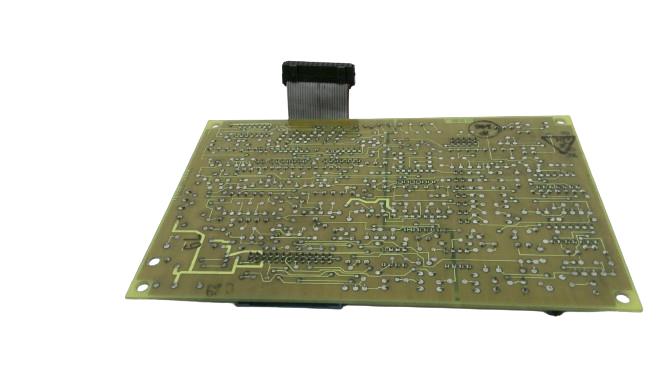

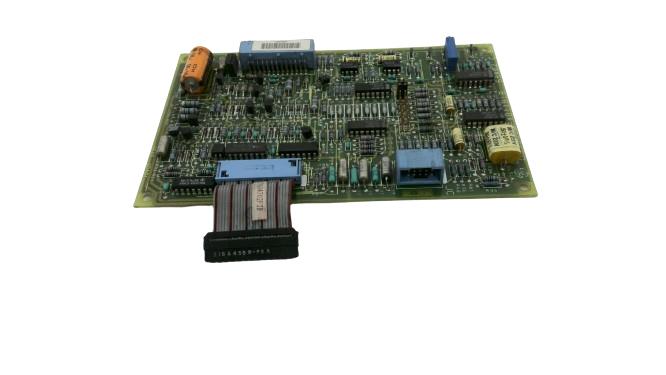

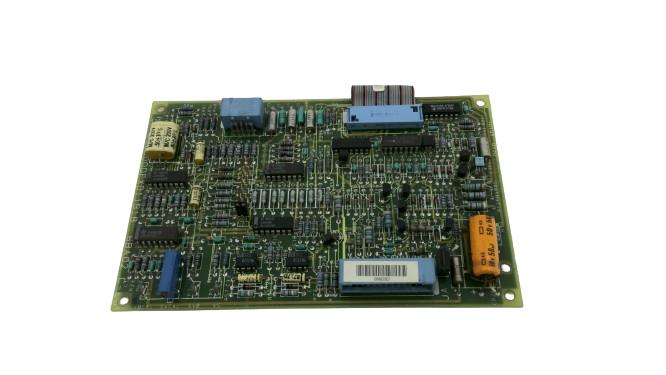

DS3800DFXD | General Electric Auxiliary Function Expander Board Mark IV

The DS3800DFXD is a Function Expansion Auxiliary Card manufactured by General Electric, specifically designed for integration within the Mark IV control system series. This auxiliary card serves a critical role in extending the functional capabilities of existing control setups, providing additional input and output connectivity that allows for enhanced control and monitoring operations in industrial environments. The DS3800DFXD is engineered to seamlessly integrate with the Mark IV framework, ensuring compatibility and reliability in demanding applications.

With an operating temperature range from -40°C to +85°C, the DS3800DFXD is built to perform reliably in a wide array of environmental conditions. This temperature range ensures that the auxiliary card can be deployed in both extreme cold and high-temperature settings without compromising its operational integrity. This versatility makes it suitable for use in various industries, including those where ambient conditions are harsh or where equipment may be exposed to significant temperature fluctuations.

The DS3800DFXD is designed to operate on an input voltage range of 4.5 to 40 VDC. This wide input voltage range allows the auxiliary card to be compatible with different power supply configurations, providing flexibility in system design and implementation. The card is capable of handling a voltage differential that supports an output current of up to 2A, ensuring adequate power distribution to support various control functions and peripheral devices connected through the auxiliary card.

Operating at a switching frequency of 150kHz, the DS3800DFXD facilitates efficient signal processing and control operations. The high switching frequency allows for rapid response times and precise control, which are essential in maintaining the overall stability and performance of the Mark IV control system. This feature is particularly important in applications requiring fast and accurate adjustments, such as in automation, process control, and other dynamic industrial environments.

In terms of physical dimensions, the DS3800DFXD is compact, measuring 42mm in length, 20mm in width, and 10mm in height. Its small footprint enables easy installation within existing system enclosures without requiring significant space modifications. The compact size of the card also facilitates ease of handling during installation and maintenance, contributing to reduced downtime and streamlined system integration.

The DS3800DFXD's robust design and high-quality construction reflect General Electric's commitment to durability and reliability. The card is built to withstand the mechanical and electrical stresses typically encountered in industrial settings, ensuring long-term operational stability and reduced risk of failure. The components used in the DS3800DFXD are selected to provide high performance under continuous operation, making it a dependable choice for expanding the capabilities of the Mark IV control systems.

Moreover, the DS3800DFXD auxiliary card is designed with user-friendly features that simplify installation and configuration. Clear labeling of input and output connections, along with standardized connector interfaces, enables straightforward integration into existing systems. The card's design also facilitates easy troubleshooting and maintenance, allowing technicians to quickly identify and resolve any issues that may arise during operation.

In summary, the DS3800DFXD Function Expansion Auxiliary Card by General Electric is a highly versatile and reliable component designed to enhance the functionality of the Mark IV control system series. With its wide operating temperature range, broad input voltage capability, high switching frequency, and compact size, the DS3800DFXD is well-suited for a variety of industrial applications. Its robust construction and user-friendly design ensure long-term reliability, ease of installation, and effective performance in demanding environments, making it an ideal choice for expanding and optimizing control system capabilities.
