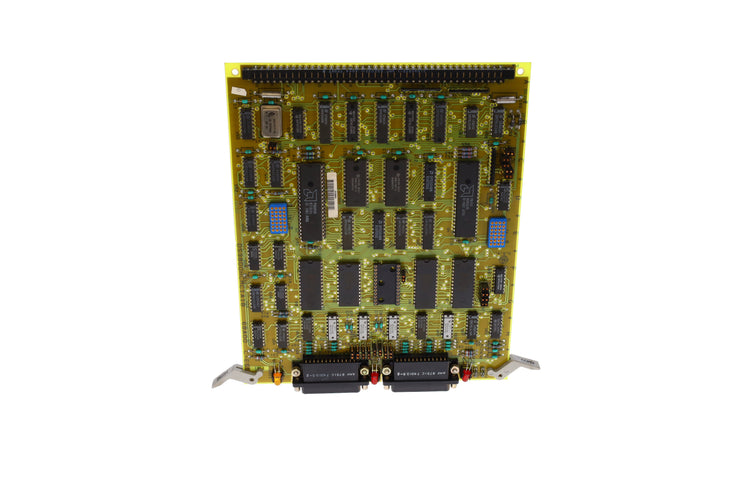

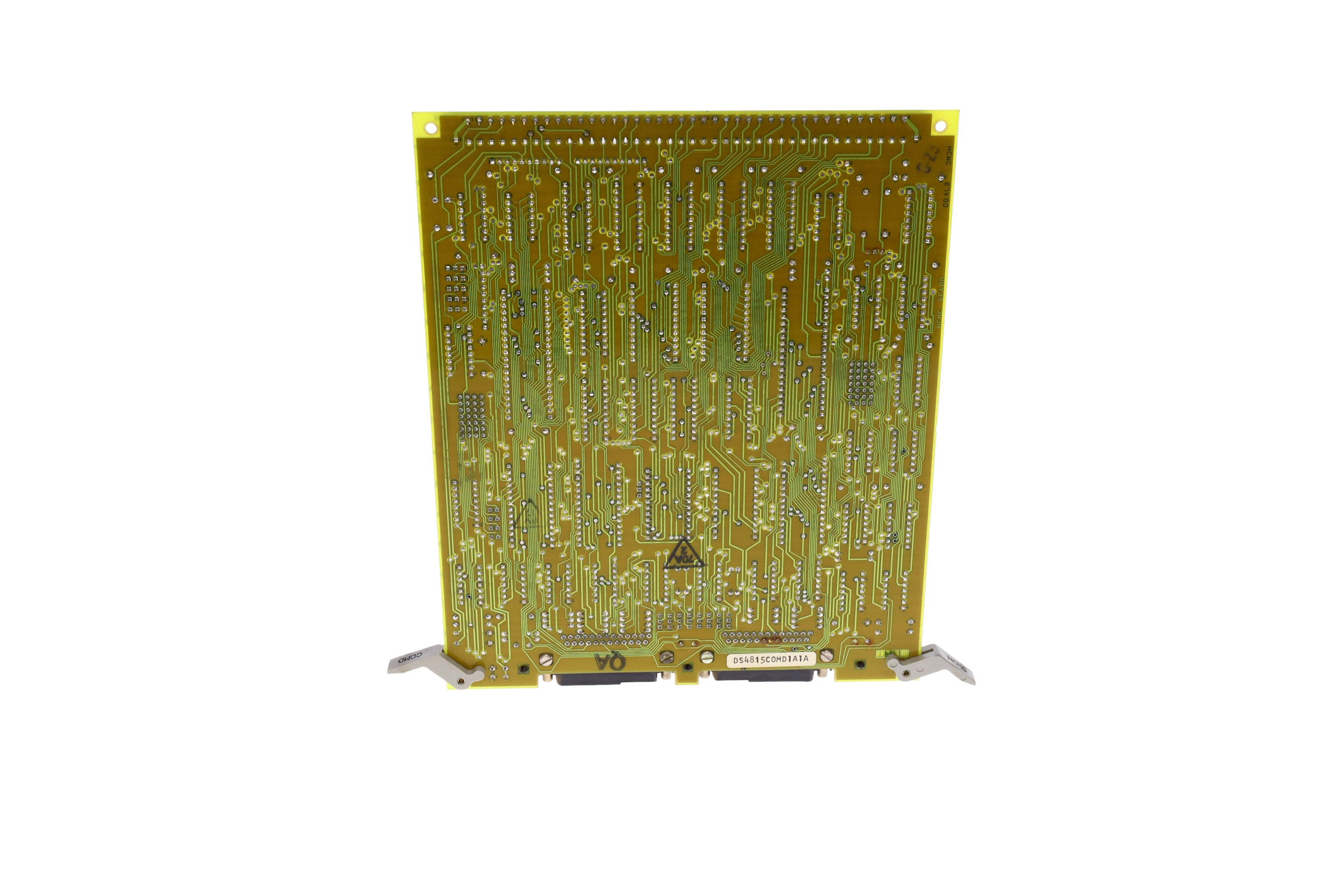

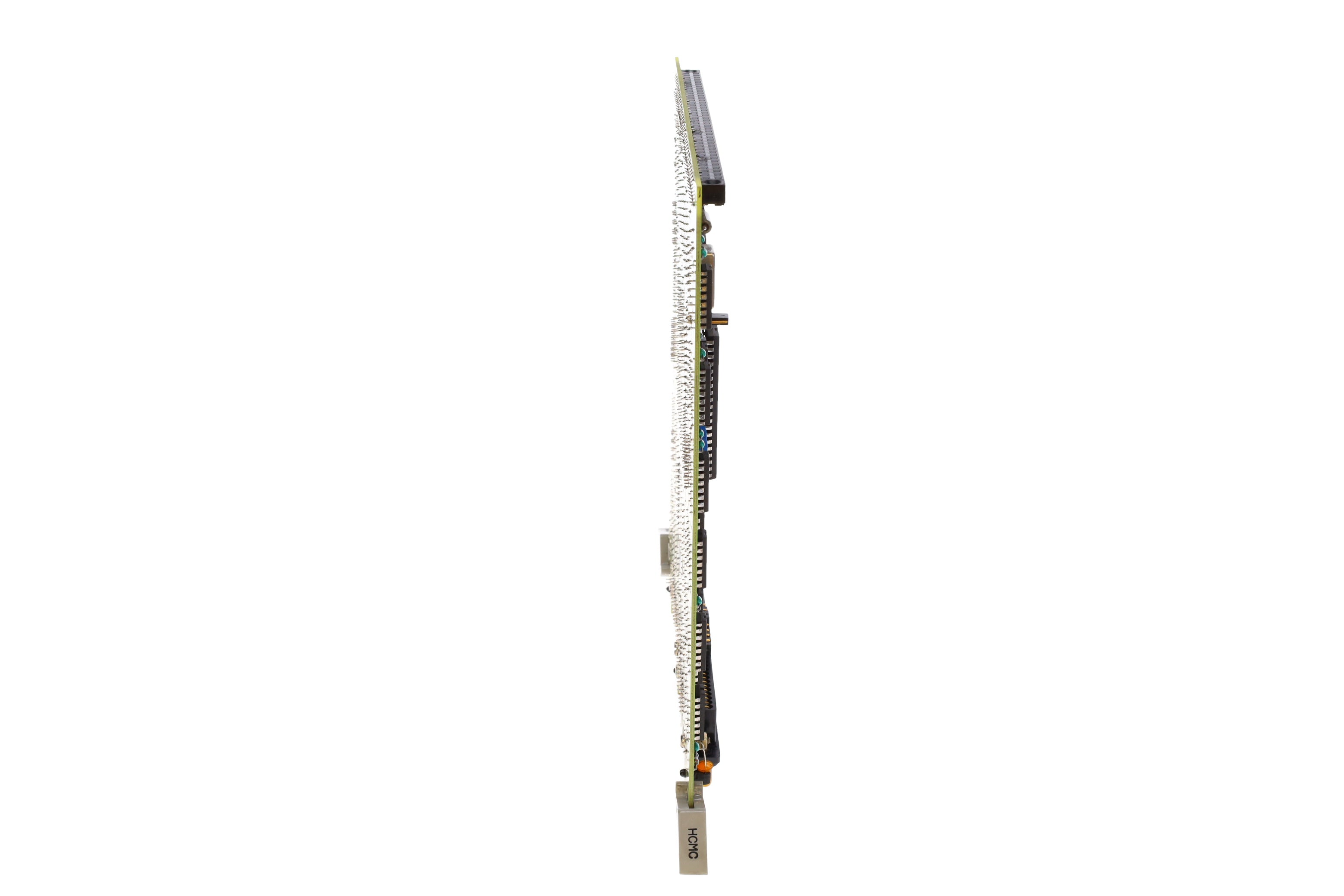

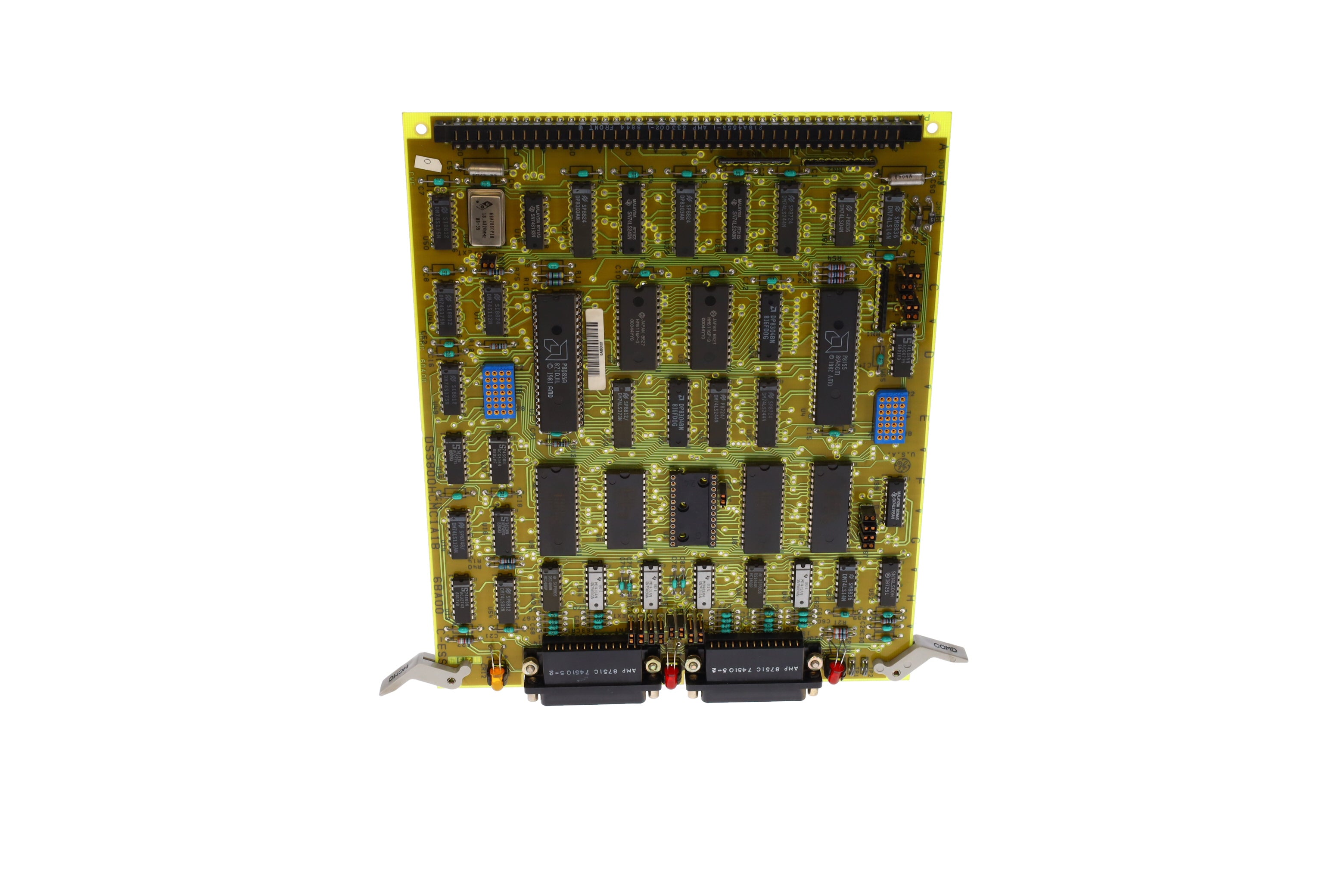

DS3800HCMC1A1B | General Electric Universal Communication Protocol Board Mark IV

Description

The DS3800HCMC1A1B by General Electric is a Mark IV Universal Communication Protocol Board, engineered to facilitate seamless data exchange and integration within industrial control systems. It ensures reliable and efficient communication between various system components, enhancing overall system performance and connectivity. Designed for high-demand environments, it supports robust data handling and precise protocol management, contributing to the stability and effectiveness of complex automation processes.

Technical Specifications

Information About DS3800HCMC1A1B

The DS3800HCMC1A1B is a General Electric Universal Communication Protocol Board specifically designed for the Mark IV series of PLCs and machine control systems. As a versatile and critical component, this board is engineered to enhance the communication capabilities of control systems by providing a reliable interface between various control units and external devices. Its primary function is to support and manage multiple communication protocols, ensuring seamless data exchange across diverse industrial automation environments.

This board is categorized under PC Board PLC/Add-On Boards, making it an essential part of complex control architectures where integration with external devices is required. The DS3800HCMC1A1B supports a range of communication protocols, including RS-232, RS-422/485, Modbus, and Ethernet. These protocols are crucial for ensuring compatibility and interoperability between different systems, enabling efficient communication and control across various devices within an industrial setup.

The inclusion of Ethernet support with a speed capability of 10/100 Mbps enhances the board's functionality, allowing it to handle high-speed data transmission and ensuring that real-time data exchange is possible. This feature is particularly important in applications where timely and accurate data is critical to the performance and safety of the entire system.

The DS3800HCMC1A1B is designed to operate reliably within a temperature range of 0°C to +70°C, making it suitable for a wide array of industrial environments. This operating temperature range ensures that the board can perform consistently even under varying thermal conditions, which is essential for maintaining the integrity and reliability of communication links in demanding industrial settings.

For storage, the board can withstand temperatures ranging from -40°C to +85°C, ensuring that it remains protected and functional even in extreme conditions when not in operation. This robustness in both operating and storage conditions highlights the board's durability and its suitability for long-term use in industrial environments where environmental factors can be unpredictable.

As part of the Mark IV series, the DS3800HCMC1A1B is built to integrate seamlessly with General Electric's advanced control systems. It acts as a bridge that facilitates communication between the control system and external devices, making it an indispensable component in systems that require reliable data exchange and control. The board's ability to support multiple communication protocols means it can be used in a wide range of applications, from simple machine control setups to more complex industrial automation systems.

In summary, the DS3800HCMC1A1B Universal Communication Protocol Board is a highly versatile and reliable component designed to enhance the communication capabilities of General Electric's Mark IV control systems. With support for multiple communication protocols, robust operating and storage temperature ranges, and the ability to handle high-speed Ethernet communication, this board is well-suited for various industrial automation applications. Its role in ensuring seamless and efficient data exchange between control systems and external devices makes it a critical component in maintaining the performance, safety, and reliability of complex industrial environments.
