DS3800HDRA | General Electric Line Driver/Receiver Board

Description

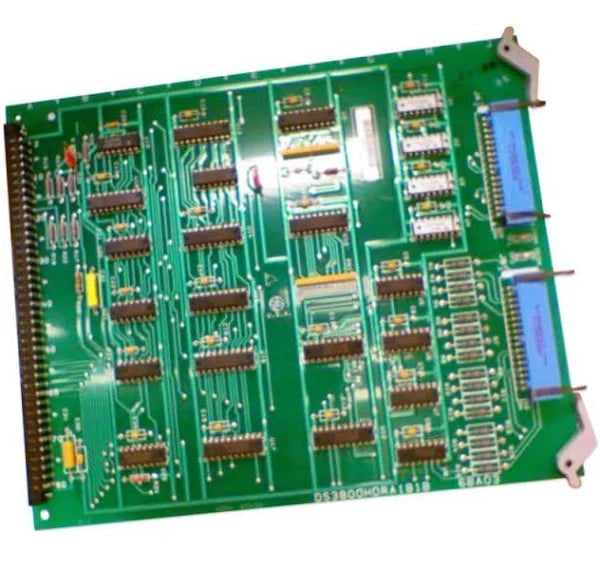

The GE Line Driver/Receiver Board DS3800HDRA is equipped with a modular connector designed for attachment to a drive, accompanied by retention levers to securely hold the board in place within the drive. Additionally, this board is populated with two jumpers and multiple capacitors to support its operational functions. It also features two 40-pin connectors accessible from the front of the board.

While the 40-pin connectors are conveniently accessible to the operator when the board is installed in the drive, caution must be exercised when handling any cables attached to these connectors, ensuring that all power to the drive has been disconnected.

Prior to any maintenance or handling of the board, it is imperative to confirm that all power sources to the drive have been fully removed. This necessitates the presence of an individual knowledgeable about the drive's installation, as they will understand the various power sources and how to properly disconnect them.

Technical Specifications

Information About DS3800HDRA

The GE Line Driver/Receiver Board DS3800HDRA is equipped with a modular connector designed for easy attachment to a drive, along with retention levers to securely hold the board in place. Additionally, the DS3800HDRA features two jumpers and multiple capacitors to facilitate its operation.

This board is outfitted with two 40-pin connectors, conveniently accessible from the front, allowing operators to make necessary connections when the board is installed in the drive. However, caution should be exercised when handling cables attached to these connectors, ensuring that power to the drive is completely removed before any adjustments are made.

Safe handling of the drive requires familiarity with its power sources and proper shutdown procedures. It is imperative that individuals knowledgeable about drive installation confirm complete power removal, as the drive may have multiple current sources. Prior to any interaction with the board, it is recommended to utilize a comprehensive testing device to verify power isolation.

Emergency power shut-off mechanisms associated with the drive should be well understood to swiftly respond to any critical situations. Having two technicians present during service is essential to ensure prompt assistance in case of emergencies. If one technician encounters an emergency, the other can take appropriate action, such as activating the emergency shut-off or seeking external assistance.
