DS3800HPBC | General Electric Parallel Line Buffer Board
- Regular price
- $3,270.00
- Sale price
- $3,270.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS3800HPBC
Description

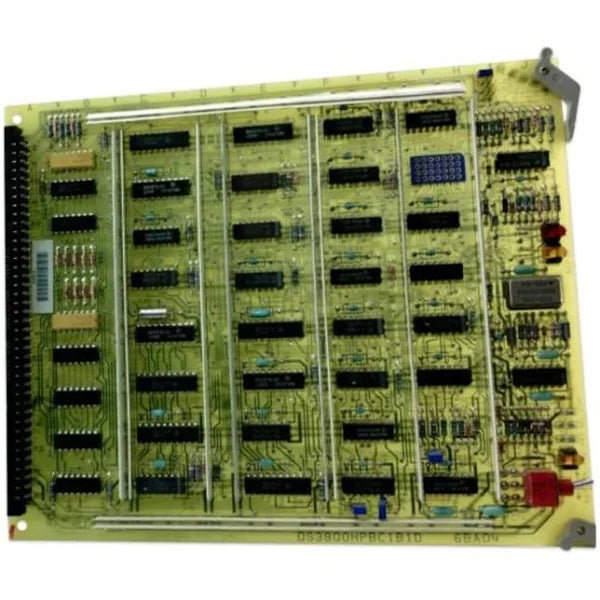

The GE Parallel Line Buffer Board DS3800HPBC is designed for easy installation within the drive system. It features a modular connector on one end and retention levers on the other. Additionally, the board includes 1 red indicator LED and 2 amber LEDs, visible from the front. The board is also equipped with 3 jumpers and multiple capacitors.
A key component of the board is the transistor to transistor logic (TTL) device, serving as the interface logic between integrated circuits. The operator monitors the operational status of the drive and ensures proper functioning. They are also responsible for overseeing multiple drives and equipment, including verifying the health and functionality of the boards.
To facilitate monitoring, the board incorporates LEDs visible during operation. A lit red LED indicates an error, prompting the operator to power off the drive and perform a board reset. This reset addresses signal transmission issues and is achieved by removing and reinserting the board into the modular connector using the provided retention levers.
Technical Specifications
Part Number |
DS3800HPBC |
Manufacturer |
General Electric |
Series |
Mark IV |
Product Type |
Parallel Line Buffer Board |
Operating Temperature |
-30 to 55 degrees Celsius |
Size |
8.25 cm high x 4.18 cm |
Availability |
In Stock |
Weight |
2 lbs |
Country of Origin |
United States |
Information About DS3800HPBC
The GE Parallel Line Buffer Board DS3800HPBC is specifically engineered for expedited installation within the drive system. Featuring a modular connector on one end and retention levers on the other, the board facilitates swift integration. Additionally, it is equipped with 1 red indicator LED and 2 amber LEDs, visibly positioned on the front of the board for monitoring purposes. Complementing these indicators are 3 jumpers and multiple capacitors, essential components for functionality.
A pivotal element of the board is the transistor to transistor logic (TTL) device, serving as the interface logic between integrated circuits. The drive operator assumes the responsibility of verifying the operational status of the drive and monitoring its performance. This encompasses overseeing multiple drives and associated equipment, ensuring the health and functionality of the boards within the drive system. An effective method of verification involves monitoring the LEDs on the boards during operation.
The red LED serves as a critical indicator, illuminating in the event of an error and indicating a cessation in board function. In such instances, the recommended course of action involves powering off the drive and performing a board reset to rectify potential signal transmission issues. This reset procedure entails lifting the board from the handles, removing it from the connector at the rear, and subsequently reinserting it into the modular connector. Utilizing the provided retention levers, the board is secured in place following reinsertion, ensuring proper functionality is restored.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
