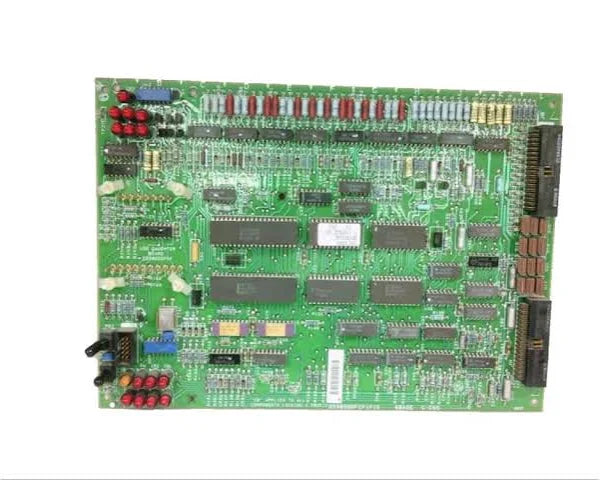

DS3800NFCF | General Electric Firing Circuit Board

Description

The DS3800NFCF, a printed circuit board (PCB) manufactured by GE, serves as a component within the Mark IV system. This system is engineered to oversee gas and steam turbine operations, ensuring safe functionality and automating essential procedures such as shutdown, cooldown, and startup.

Technical Specifications

Information About DS3800NFCF

The General Electric DS3800NFCF is a high-performance firing circuit board, specifically designed for the Mark IV series. This component is an essential part of industrial control systems, offering precise firing control for various applications. Manufactured in the United States, the DS3800NFCF exemplifies GE's commitment to quality and reliability in the field of industrial automation.

With a compact size of 8.24 cm in height and 4.16 cm in width, the DS3800NFCF is engineered to fit seamlessly into control systems without requiring extensive space. Its manageable dimensions make it an ideal choice for both new installations and upgrades in existing systems, providing flexibility and ease of integration.

The DS3800NFCF is designed to operate efficiently within a temperature range of -35 to 45 °C. This wide operating temperature range ensures that the board can function reliably in various environmental conditions, from cold storage facilities to heated industrial environments. This robustness in temperature tolerance underscores the board's suitability for demanding industrial applications.

This firing circuit board features 12 channels, allowing for precise and simultaneous control of multiple circuits. The multi-channel capability enhances the board's utility in complex control systems, enabling synchronized firing control that is essential for maintaining process accuracy and efficiency. The ability to manage multiple channels effectively makes the DS3800NFCF a versatile component in a wide array of industrial applications.

Weighing in at 2 lbs, the DS3800NFCF is a lightweight yet durable component. Its sturdy construction ensures long-term reliability and performance, reducing the need for frequent maintenance or replacements. The weight and build quality of this board are designed to withstand the rigors of industrial environments, ensuring consistent performance over its operational life.

As a product of the Mark IV series, the DS3800NFCF is part of a well-regarded line of control system components known for their reliability and advanced functionality. The Mark IV series is widely used in various industries, including manufacturing, energy production, and process control, where precise and reliable control is paramount.

The DS3800NFCF is readily available in stock, ensuring quick delivery and minimal downtime for industrial operations. Its availability allows for rapid deployment to meet urgent needs or to replace faulty components, thereby maintaining the efficiency and reliability of the overall control system.

In summary, the General Electric DS3800NFCF firing circuit board is a critical component for the Mark IV series, providing precise multi-channel firing control for industrial applications. Its compact size, wide operating temperature range, and robust construction make it an ideal choice for enhancing the performance and reliability of control systems. Manufactured in the USA and available in stock, the DS3800NFCF exemplifies GE's dedication to quality and innovation in industrial automation, making it a valuable addition to any industrial control setup.
