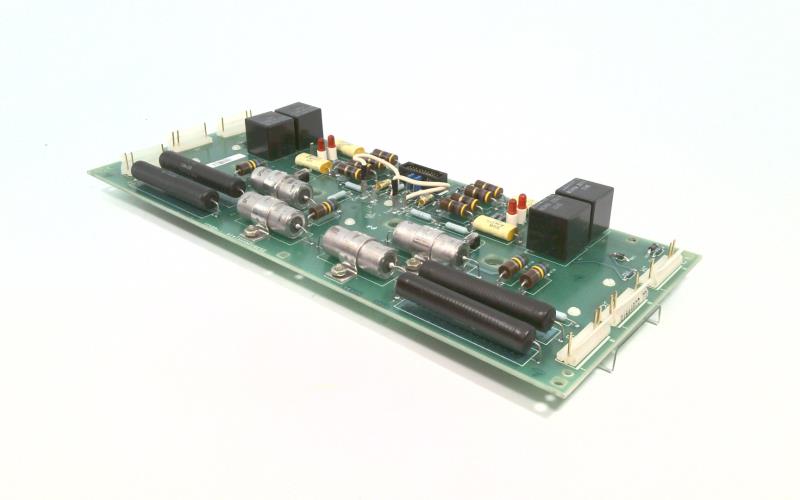

DS3800NHVK1A1A | General Electric High Voltage Board Mark IV

Description

The DS3800NHVK1A1A is a General Electric Mark IV High Voltage Board, engineered for managing and controlling high voltage signals within industrial control systems. It provides precise signal processing and robust performance, ensuring reliable operation and stability in high voltage applications. Its design supports efficient integration and operation in demanding environments.

Technical Specifications

Information About DS3800NHVK1A1A

The General Electric DS3800NHVK1A1A is a high voltage board designed for the Mark IV series of industrial control systems. This essential component is engineered to handle and interface with high voltage signals, ensuring reliable performance and control in demanding environments. It is a crucial part of the PLCs and machine control category, optimized for complex applications requiring high voltage management.

The DS3800NHVK1A1A operates within a temperature range of 0°C to 70°C, making it suitable for a variety of industrial settings where temperature conditions can fluctuate. This temperature range ensures the board remains functional and stable under normal operating conditions, minimizing the risk of thermal-induced failures. For storage, the board can withstand temperatures from -40°C to 85°C, providing flexibility in handling and long-term storage without compromising its integrity.

Designed to cope with high voltage signals, the board plays a pivotal role in interfacing high voltage inputs with the control system. It effectively manages these signals, enabling accurate and safe operation of the control system. This capability is particularly important in systems where high voltage components are prevalent and precise signal handling is required for the overall system performance and safety.

The DS3800NHVK1A1A is built to withstand environmental conditions with a humidity tolerance of 5% to 95% non-condensing. This broad humidity range ensures the board can operate reliably even in environments with high levels of moisture, reducing the risk of moisture-related issues that could affect performance and longevity.

As a high voltage board, it features robust construction and advanced circuitry designed to handle the stresses associated with high voltage operations. This durability ensures that the board remains operational under demanding conditions, maintaining the integrity of the control system and contributing to its overall reliability.

In summary, the General Electric DS3800NHVK1A1A high voltage board is a specialized component designed for the Mark IV control systems. With its wide temperature and humidity tolerance, it offers reliable performance in diverse environmental conditions. Its primary function of managing high voltage signals ensures that it plays a critical role in the efficient and safe operation of industrial control systems.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
