DS3800NPSM1E1D | General Electric Power Supply Board Mark IV

Description

The DS3800NPSM1E1D is a part of the Speedtronic Mark IV series of turbine control. This system was designed to automate turbine controls and protect the turbine against the dangers of unsafe working conditions. The DS3800NPSM1E1D is a power supply panel.

Technical Specifications

Information About DS3800NPSM1E1D

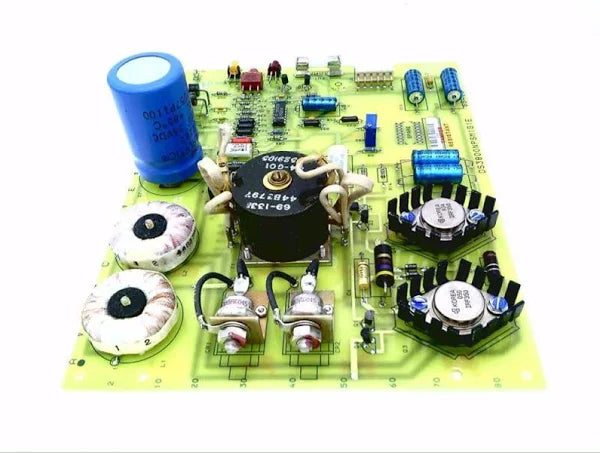

The DS3800NPSM1E1D features three (3) inductors, which are also known as coils. These inductors are marked with the designator L, from L1 to L3. Two of these inductors are situated near the top of the DS3800NPSM1E1D. The third inductor is located below these. This last inductor is topped with a black cover. This inductor is connected to the surface of the board with 6 yellow wires. Two large silver diodes are positioned on the left side of the DS3800NPSM1E1D. These diodes are connected to the circuit board by two (2) black wires each. At the bottom left side of the DS3800NPSM1E1D there are two large transistors which are silver in color. Four (4) smaller transistors are placed on the DS3800NPSM1E1D. Each transistor is marked with the letter Q. In the center of the top of the DS3800NPSM1E1D is a large blue capacitor. This capacitor is standing upright on the surface of the circuit board. There are five (5) orange capacitors placed on the DS3800NPS1E1D. Many smaller capacitors can also be found on the surface of the circuit board. These capacitors are a variety of colors including yellow, red, and blue. All of the capacitors are labeled with the designator C. One (1) fuse is sitting on the left edge of the DS3800NPSM1E1D. Two (2) test points can be seen at the top right corner of the circuit board.
