DS3800NPSP | General Electric Power Supply Circuit Board

Description

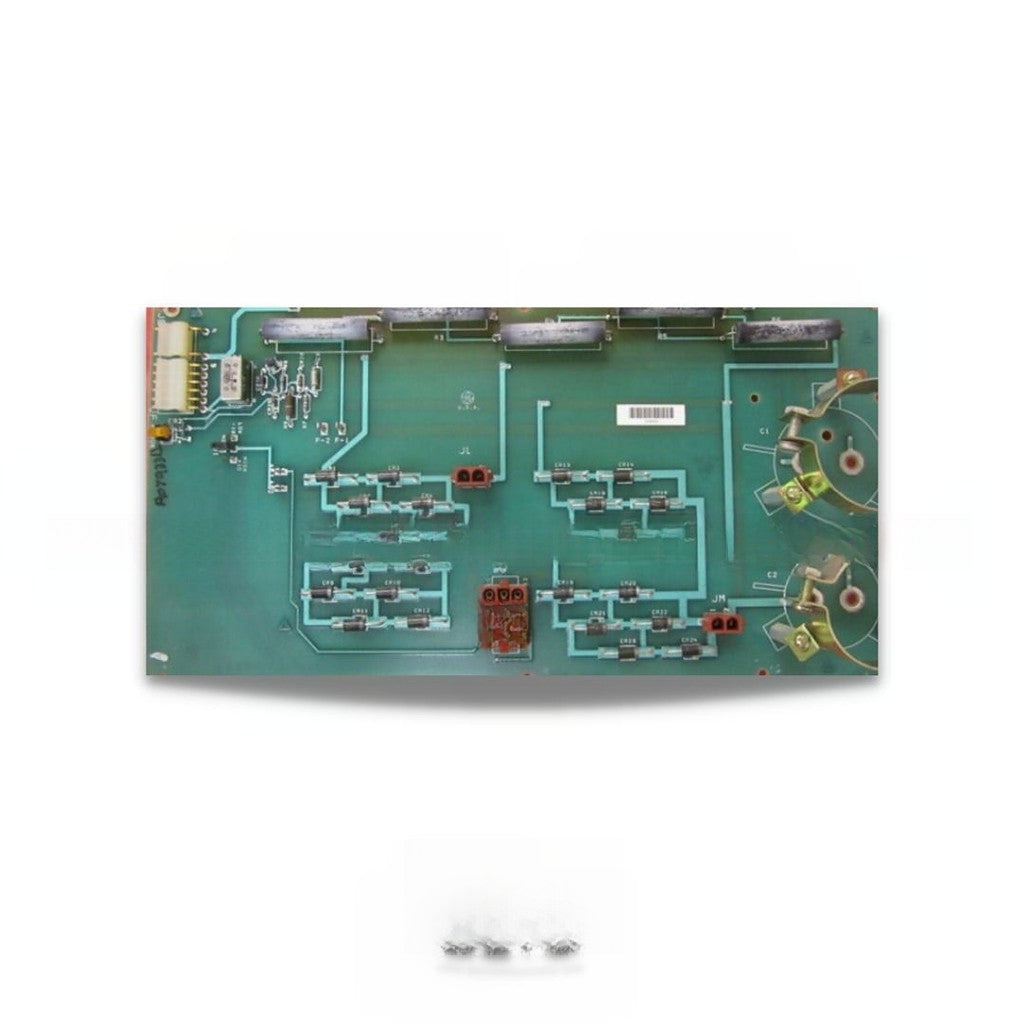

The DS3800NPSP is a power supply circuit board designed by General Electric for the Speedtronic Mark IV system, a component of the Mark series used to control and monitor turbine functions. This printed circuit board (PCB) features two spaces labeled C1 and C2 on the right side for large capacitors. Additionally, it includes twenty-four small black and grey diodes arranged in two columns of six rows each, along with three red terminal blocks named JL, JM, and a third block containing twelve terminals for connecting extra components.

Five large black resistors labeled R2 to R6 are positioned at the top, along with a small metal resistor adjacent to them. An orange LED situated on the left edge emits light when the diode is functioning. Furthermore, a silver rectangular capacitor is located on the right half of the board. The full part number, DS3800NPSP, is listed on the bottom edge of the circuit board.

Technical Specifications

Information About DS3800NPSP

The General Electric DS3800NPSP is a power supply circuit board designed for the Mark IV series, providing reliable power management and distribution in various industrial applications. As a product of General Electric, this circuit board exemplifies quality and precision engineering, tailored to meet the demanding requirements of industrial environments.

The DS3800NPSP power supply circuit board features 12 channels, allowing it to handle multiple power inputs and outputs simultaneously. This multi-channel capability ensures efficient power distribution across connected devices, enhancing the overall stability and performance of the system. The circuit board's design ensures minimal power loss and high efficiency, which is critical for maintaining optimal operational conditions.

Operating within a temperature range of -30 to 65°C, the DS3800NPSP is built to withstand extreme environmental conditions. This wide operating temperature range makes it suitable for use in diverse industrial settings, from cold storage facilities to high-temperature manufacturing plants. The circuit board's components are selected for their durability and resilience, ensuring long-term reliability even under harsh conditions.

Measuring 8.26 cm in height and 4.19 cm in width, the DS3800NPSP is compact yet powerful. Its size allows for easy integration into existing systems, ensuring that it can be installed without requiring significant modifications to the setup. Despite its compact dimensions, the board's design does not compromise on performance, providing robust power management in a small footprint.

Weighing 2 lbs, the DS3800NPSP is lightweight, facilitating easier handling during installation and maintenance. This manageable weight contributes to the ease of integration into various systems, reducing the effort required for installation and potential downtime during upgrades or repairs.

Manufactured in the United States, the DS3800NPSP adheres to stringent quality control standards, ensuring high performance and reliability. General Electric's commitment to excellence is reflected in the meticulous construction and testing of this power supply circuit board. Each unit is thoroughly tested to meet and exceed industry standards, providing assurance of its capability to perform reliably in critical applications.

The DS3800NPSP power supply circuit board is an essential component of the Mark IV series, providing stable and efficient power management for connected devices. Its multi-channel design, wide operating temperature range, compact size, and lightweight construction make it an ideal choice for a variety of industrial applications. Whether used in manufacturing, processing, or other industrial operations, the DS3800NPSP ensures consistent and reliable power distribution, contributing to the overall efficiency and stability of the system.

In summary, the General Electric DS3800NPSP power supply circuit board offers a robust solution for industrial power management. With its 12-channel capacity, ability to operate in extreme temperatures, compact and lightweight design, and adherence to high-quality manufacturing standards, it stands out as a reliable and efficient choice for enhancing the performance of industrial systems within the Mark IV series.
