DS3800NVAA | General Electric Control/Interface Board Drive
- Regular price
- $2,149.00
- Sale price
- $2,149.00
- Regular price
-
Do you need more quantity?
Product Description P/N: DS3800NVAA
Description

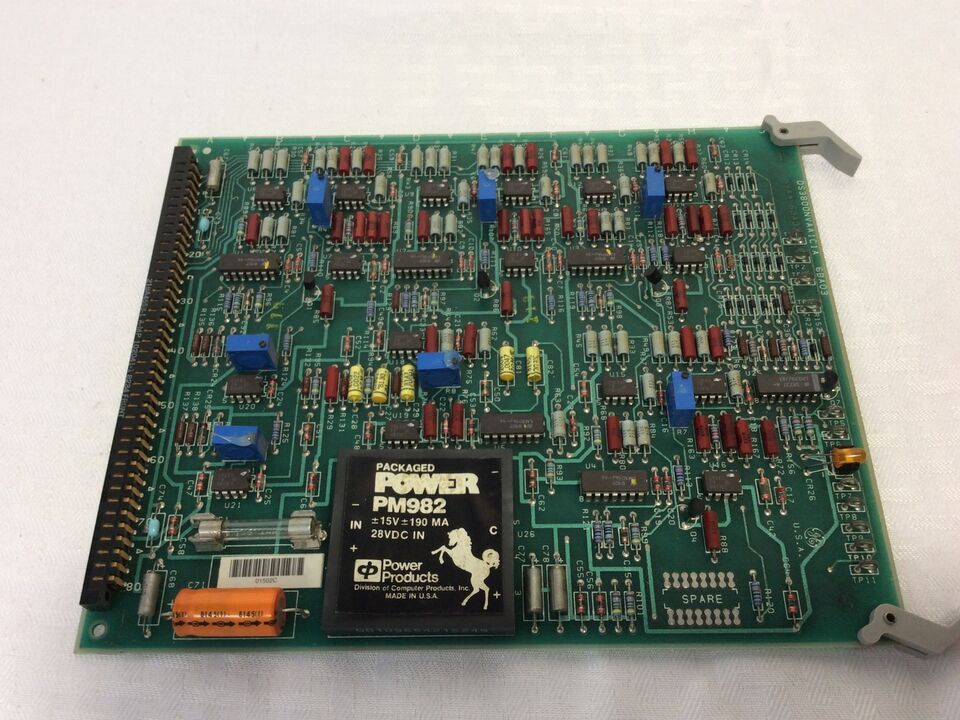

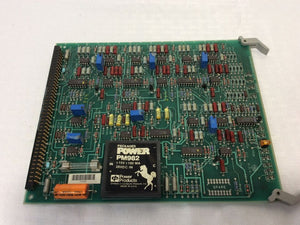

The DS3800NVAA is a control/interface board designed for use in the General Electric Mark IV Speedtronic line. It features a large black battery pack and incorporates various components for circuit control and adjustment. Notably, it includes one glass fuse, seven blue variable resistors (potentiometers), and a large female terminal port for interconnection with other circuit boards. Anchoring points and clasps facilitate secure installation. The board comprises a variety of capacitors, including three bright yellow, nine deep red, four silver, one large bright orange, and two light yellow capacitors. Additionally, it contains approximately 165 resistors and 22 integrated circuits, categorized into EEPROMs (non-alterable) and EPROMs (updateable). A "SPARE" section is provided for additional EEPROM or EPROM integration if necessary. Furthermore, the DS3800NVAA integrates four small black transformers and various diodes—35 dark blue, 68 clear with orange tips, 28 large pale blue, 8 small light blue, and 1 teal blue—facilitating unidirectional energy flow. An amber-colored LED indicator is also included for visual feedback.
Technical Specifications
Part # |
DS3800NVA |
Category |
Drives |
Subcategory |
Control/Interface Board |
Function |
Isolation Converter Card |
Information About DS3800NVAA
The DS3800NVAA is a circuit board designed specifically for integration within the Mark IV Speedtronic product line by General Electric. Featuring a prominent black battery pack, it incorporates essential components for circuit operation and control.
Key components of the DS3800NVAA include a single glass fuse, seven blue variable resistors (also known as Potentiometers), serving as adjustable elements to regulate energy flow within the circuitry. Facilitating interconnection with other circuit boards, the DS3800NVAA is equipped with a large female terminal port. Installation convenience is ensured through strategically positioned anchor holes and clasps.
Capacitive elements on the DS3800NVAA consist of three bright yellow, nine deep red, four silver, one large bright orange, and two light yellow capacitors. Visual feedback is provided by an amber-colored LED indicator.
Resistor count on the DS3800NVAA totals approximately one hundred and sixty-five, while integrated circuits number twenty-two, categorized into distinct groups known as EEPROMs and EPROMs. EEPROMs are inherently pre-programmed and non-alterable, whereas EPROMs offer the flexibility of being updated as necessary. An additional "SPARE" section is available to accommodate supplementary EEPROM or EPROM integration for expanded data requirements.
