DS3800XTFP | General Electric Thyristor Fan-Out Board for Mark IV Speedtronic

Description

The General Electric DS3800XTFP is a thyristor fan-out board designed for Mark IV Speedtronic turbine control systems. The DS3800XTFP distributes logic-level signals through multiple connectors, supporting precise control and monitoring functions in gas and steam turbine applications. Engineered for reliability, it integrates directly into MKIV control racks to expand system connectivity and interface capability.

Technical Specifications

Information About DS3800XTFP

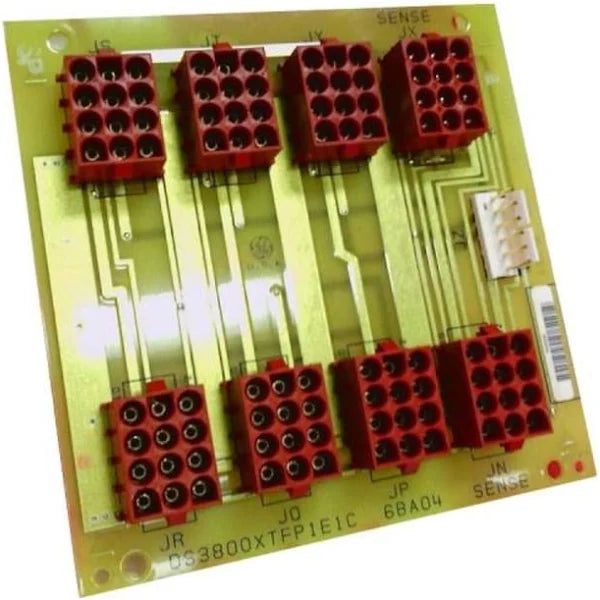

The DS3800XTFP is part of GE’s Speedtronic Mark IV series, a proven platform for turbine control and protection. Built as a dedicated fan-out card, it uses a rigid PCB with eight red jack connectors and a 6-pin terminal to distribute logic signals cleanly across interconnected boards. Its design supports straightforward integration into MKIV assemblies, aided by pre-drilled mounting points for secure installation. Commonly deployed in gas and steam turbine control cabinets, the DS3800XTFP enables stable interfacing with thyristor-driven circuits and gate-level control paths.

Key Features:

• Mark IV compatibility: Designed specifically for GE Speedtronic MKIV systems.
• Fan-out architecture: Distributes logic signals to multiple connected modules.
• Connector-rich design: Eight red jack connectors provide expanded interfacing options.
• Secure termination: Includes one 6-pin male terminal for stable electrical connections.
• Pre-drilled mounting: Simplifies installation within control racks and enclosures.
• Robust PCB construction: Built for long-term performance within industrial turbine systems.
• Gate labeling: Clearly printed identifiers assist in streamlined wiring and diagnostics.
• Direct integration: No additional interfacing circuitry required for logic routing.

The DS3800XTFP delivers the reliability and precision required for turbine control and Mark IV Speedtronic signal distribution.
