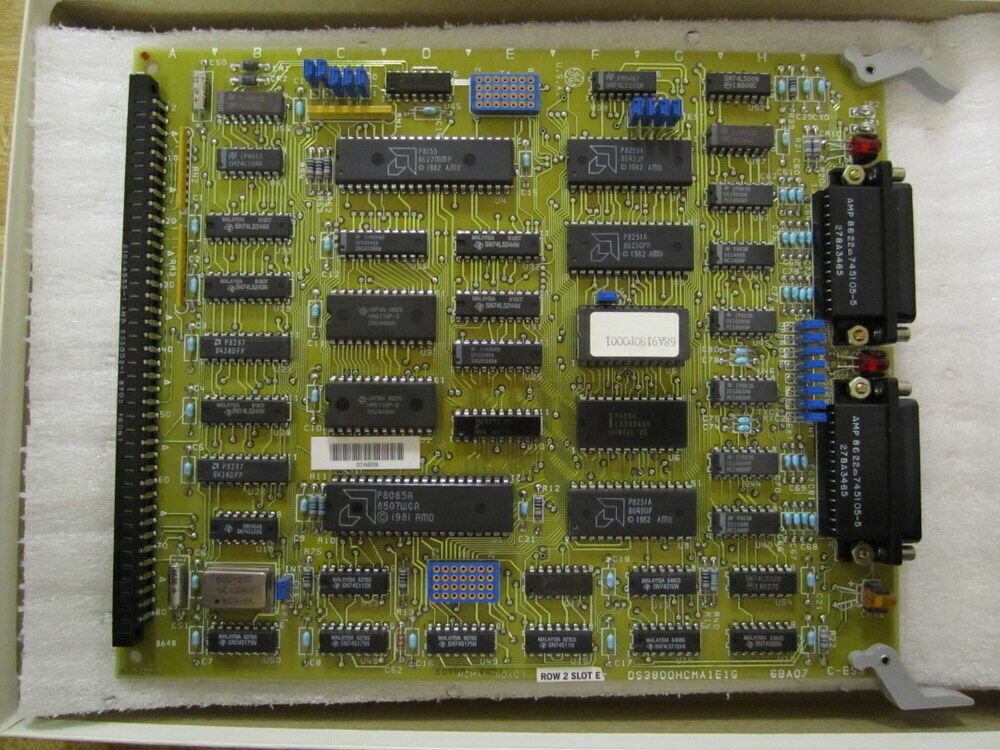

DS3815PTCA | General Electric Circuit Board PROM ASSY
- Regular price
- $1,407.00
- Sale price
- $1,407.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DS3815PTCA
Description
The General Electric DS3815PTCA is a PROM assembly circuit board engineered for industrial control applications, providing reliable programmable memory functions for Mark IV turbine control systems. Its robust design supports stable data retention and dependable operation within high-demand electronic architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Part Number | DS3815PTCA |
| Category | PLCs/Machine Control |
| Subcategory | PC Board PLC/Add-On Board |
| Type | PC Assembly Board |
| Communications Ports | Dual right-angled connectors |
| Indicators | LED status indicators |
| Backplane Connector | Mark IV standard |
| Jumpers | Three jumper arrays + two individual jumpers |
| Integrated Circuits | 55+ ICs |
| Additional Components | Resistor networks, capacitors, diodes |
| Test Points | TP diagnostic points |
| Installation Features | Factory extractor clips |
Information About DS3815PTCA
The DS3815PTCA is a PROM assembly board built on the DS3800 HCMA Mark IV platform and designed for integration into General Electric’s Speedtronic Mark IV turbine control systems, which use triple modular redundancy for enhanced reliability. It features a Mark IV backplane connector, dual right-angled communication ports, and multiple LED indicators for visual status monitoring once installed in the rack. The board incorporates jumper switch arrays, resistor networks, integrated circuits, and test points, enabling configurable operation and precise memory handling. With extractor clips for secure installation and maintenance, the DS3815PTCA serves as a critical memory and control component within gas and steam turbine automation environments.
Key Features
- PROM Memory Assembly: Provides programmable memory functionality for Mark IV turbine control systems.
- Dual Communication Ports: Two right-angled connectors allow stable communication and data exchange within the rack.
- LED Status Indicators: Multiple onboard LEDs offer at-a-glance visual feedback for operational diagnostics.
- Mark IV Backplane Connector: Ensures compatibility with GE Speedtronic rack assemblies for seamless integration.
- Configurable Jumper Arrays: Three jumper lines and additional single jumpers enable customized circuit behavior.
- Dense IC Population: Over fifty-five integrated circuits support complex memory and control operations.
- Resistor and Capacitor Networks: Includes both resistor arrays and discrete components for signal conditioning.
- Built-In Extractor Clips: Factory-installed extractors provide secure installation and simplify board removal for service.
The DS3815PTCA delivers the reliability and precision required for maintaining stable memory performance in GE Mark IV turbine control architectures.
