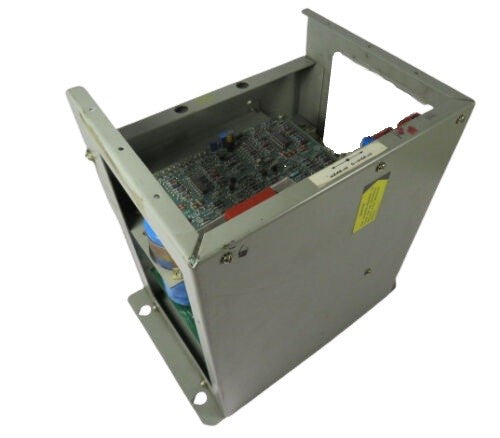

DS3820PSCB1C1B | General Electric Power Supply Board Mark IV

The DS3820PSCB1C1B is a Power Supply Board designed for use in the Mark IV series of industrial control systems. This board is categorized under Power Supplies, with a specific subcategory designation as a Power Supply, and is integral to maintaining the operational stability and reliability of the systems in which it is installed. Weighing 16.00 lbs, the DS3820PSCB1C1B is constructed to provide robust performance and long-term durability in demanding industrial environments, where reliable power regulation is crucial.

The primary function of the DS3820PSCB1C1B is to deliver regulated power to various system components, ensuring that they operate within specified voltage parameters. This power supply board provides dual voltage outputs of +5V and +/-15V, which are critical for powering both digital and analog components within the Mark IV series control systems. The +5V output is typically used for digital logic circuits, microcontrollers, and other low-voltage components, while the +/-15V outputs are essential for analog circuits, operational amplifiers, and other components that require dual polarity power.

The DS3820PSCB1C1B is engineered with advanced voltage regulation technology to maintain stable output levels, even in the presence of input voltage fluctuations or changes in load conditions. This ensures that sensitive components receive consistent power, which is essential for maintaining accurate and reliable system performance. Voltage regulation is achieved through a combination of high-quality components and precise control circuitry, which work together to minimize ripple and noise, providing clean and stable power to the system.

Designed for use in the Mark IV series, the DS3820PSCB1C1B power supply board is compatible with a wide range of control modules and interfaces. Its integration into the Mark IV system allows for seamless communication and power distribution, supporting various operational needs. The board’s design adheres to the standards and specifications set forth for the Mark IV series, ensuring that it meets the stringent requirements for safety, performance, and reliability.

One of the key features of the DS3820PSCB1C1B is its robust construction, which enables it to withstand the harsh conditions commonly found in industrial environments. The board is built using high-quality materials and components that provide resistance to environmental factors such as temperature variations, dust, humidity, and vibration. This durability is crucial for minimizing the risk of failure and ensuring that the power supply board can maintain continuous operation over extended periods.

The DS3820PSCB1C1B power supply board also includes various protection mechanisms to safeguard both the board itself and the connected components. These protection features include overvoltage protection, which prevents damage from unexpected increases in voltage, and short circuit protection, which safeguards against faults that could cause excessive current flow. Additionally, thermal protection is implemented to prevent overheating, ensuring that the board operates within safe temperature limits and reducing the risk of thermal-related failures.

Installation and maintenance of the DS3820PSCB1C1B are straightforward, facilitated by its design, which allows for easy access to connectors and mounting points. The power supply board is designed to fit into standard slots within the Mark IV system, making installation quick and efficient. Maintenance is similarly streamlined, with accessible test points and diagnostic features that enable technicians to perform routine checks and identify issues promptly. This ease of maintenance helps to minimize downtime and ensures that any necessary repairs can be conducted efficiently.

In addition to its technical capabilities, the DS3820PSCB1C1B is supported by comprehensive technical documentation and resources. This includes detailed installation guides, operation manuals, and troubleshooting information, which are essential for ensuring that the power supply board is installed and operated correctly. Technical support from the manufacturer is also available, providing expert assistance when needed to address any issues or questions that may arise.

Overall, the DS3820PSCB1C1B Power Supply Board is a vital component for ensuring the reliable operation of the Mark IV series control systems. Its dual voltage outputs, advanced regulation features, and robust construction make it an ideal choice for a wide range of industrial applications. By providing stable and regulated power, the DS3820PSCB1C1B supports the accurate and efficient operation of critical system components, contributing to the overall reliability and performance of the control system. Its design and construction ensure long-term durability, while its protective features and ease of maintenance make it a practical and reliable solution for power supply needs in industrial environments.
