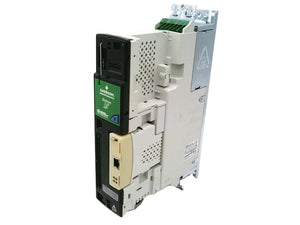

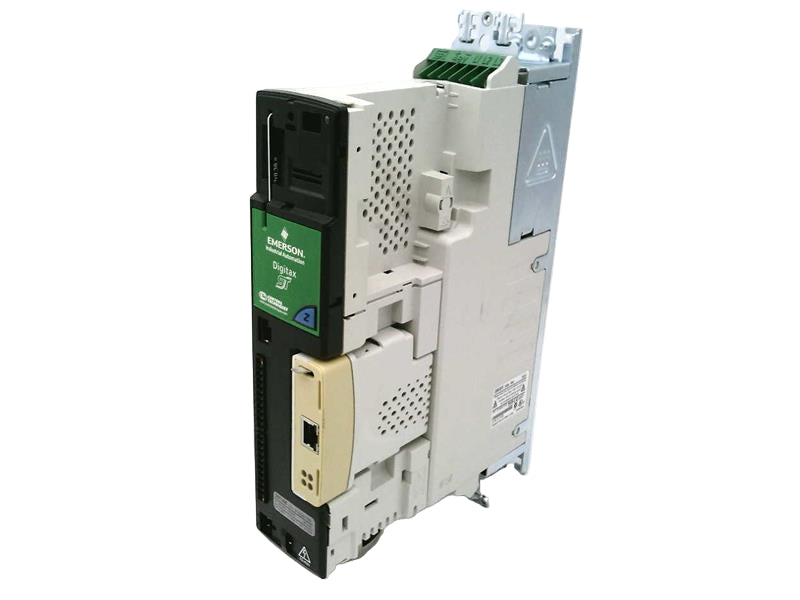

DST1405Z | Nidec Servo Drive
- Regular price
- $3,258.00
- Sale price
- $3,258.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GJ1P-Z4-4
Description
The Nidec DST1405Z is a high-performance servo drive designed to provide precise motion control and efficient power delivery for industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Nidec |
| Category | Servo Products |
| Part Number | DST1405Z |
| Subcategory | Servo Drive/Servo Control |
| Product Type | AC Variable Frequency & Servo Drive |
| Series | Digitax ST |
| Drive Supply Voltage | 380/480 V AC |
| Input Phases | 3 |
| Input Frequency Rating | 50/60 Hz |
| Operation Mode | Servo Control |
| Horsepower Rating (HD) | 4 HP |
| Output Current (HD) | 8 A |
| Peak Current (HD) | 24 A |
| Feedback Type | Incremental Encoder, Absolute Encoder |
| Encoder Connection | Standard |
| Compatible Accessories | Communications, I/O, Feedback, Automation |
| Configurable Digital I/O | 3 |
| Number of Digital Inputs | 3 |
| Number of Digital Outputs | 1 |
| Number of Analog Inputs | 3 |
| Number of Analog Outputs | 2 |
| Number of Relays | 1 |
| Number of Option Slots | 2 |
| Number of Safety Inputs (STO) | 1 |
| Pulse Train Input | Yes |
| Pulse Train Output | Yes |
| PI / PID Controller | Integrated PID |
| PLC Functions | Onboard PLC |
| Serial Communication (Onboard) | Modbus RTU |
| Serial Communication (Options) | CANOpen, DeviceNet, EtherNet/IP, Modbus TCP/IP, EtherCAT, PROFIBUS DP, PROFINET RT, CTNet |
| Keypad / Display | Option DST-Keypad |
| Remote Keypad | SM-KEYPAD-PLUS |
| Mounting Type | Standard, Bookcase |
| Enclosure Rating | IP20 |
| Overall Dimensions (H x W x D) | 12.7 in x 2.5 in x 9.0 in |
| Weight | 4.6 lbs |
| Standard Operating Temp. | 32 °F to +104 °F |
Information About DST1405Z
The DST1405Z is part of Nidec’s Digitax ST EZMotion servo drive range, developed to deliver precise and responsive motion control in automation and manufacturing applications. Designed for dynamic performance, it operates on a 380–480 VAC three-phase supply and provides 8 A continuous output current with peak capability up to 24 A. Compact and efficient with an IP20-rated enclosure, the DST1405Z supports incremental and absolute encoder feedback, onboard PLC functions, and a wide range of option modules for communications, I/O, and feedback. Optimized for indexing, pick-and-place, and packaging systems, it ensures smooth control, fast response, and flexibility for advanced motion applications. Though now discontinued, the DST1405Z remains a reliable solution in legacy setups requiring high-performance servo drives.
Key Features:
- Model / MPN: DST1405Z
- Type: AC Servo Drive / Digitax ST EZMotion Series
- Drive Supply Voltage: 380–480 VAC, 3-Phase
- Output Current: 8 A RMS Continuous, 24 A RMS Peak
- Horsepower Rating: 4 HP (Heavy Duty)
- Operation Mode: Servo Control with onboard PLC
- Feedback Support: Incremental and Absolute Encoder Options
- Enclosure Rating: IP20
- Communication Options: CANOpen, DeviceNet, EtherCAT, Ethernet/IP, Modbus TCP/IP, PROFIBUS DP, PROFINET RT, CTNet
- Option Slots: 2 (Automation, I/O, Feedback, and Communication Modules)
- Mounting Type: Standard, Bookcase
- Dimensions (H x W x D): 12.7 in x 2.5 in x 9.0 in
- Weight: 4.6 lbs
- Standards Compliance: UL508C, EN61000, EN61800-3
- Application: Indexing tables, pick-and-place, packaging machines, dancer arm loop control
The Nidec DST1405Z Servo Drive provides compact, high-performance motion control with flexibility and robust features, making it an excellent choice for demanding automation environments and legacy system support.
