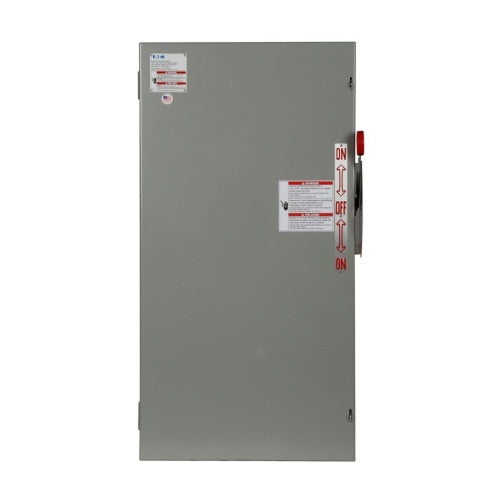

DT325UGK | Eaton 400A Double-Throw Non-Fusible Safety Switch, NEMA 1
- Regular price
- $9,499.05
- Sale price
- $9,499.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DT325UGK
Description
The Eaton DT325UGK safety switch is a heavy-duty, double-throw, non-fusible disconnect designed for reliable power source switching in industrial electrical systems. Rated at 400 A and 240 VAC, it provides secure manual transfer between two power sources in three-pole configurations. This switch is housed in a NEMA 1 painted steel enclosure for indoor installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Electrical Safety Switches |
| Part Number | DT325UGK |
| Subcategory | Double-Throw Safety Switches |
| Product Series | DT |
| Switch Type | Double-Throw Non-Fusible Safety Switch |
| Enclosure Rating | NEMA 1 |
| Enclosure Material | Painted Steel |
| Enclosed | Yes |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Current Rating | 400 A |
| Rated AC Voltage | 240 VAC |
| Rated DC Voltage | 250 VDC |
| Approvals | UL, cUL |
| Enclosure Dimensions (H × W × D) | 53.8 × 23.08 × 12.5 in |
| Weight | 140 lbs |
Information About DT325UGK
The DT325UGK is part of Eaton Cutler-Hammer’s DT Series of heavy-duty double-throw safety switches, engineered for dependable source transfer and isolation. It is designed as a non-fusible disconnect, allowing coordinated protection through upstream devices while maintaining robust mechanical switching performance. The switch supports three-pole, three-wire systems and is commonly used in applications requiring manual transfer between utility and alternate power sources. Built in a metallic, enclosed NEMA 1 housing, it meets UL and cUL standards for industrial electrical installations.
Key Features:
- Double-Throw Transfer Mechanism: Enables manual switching between two power sources for system continuity.
- 400 Amp Current Rating: Supports high-current industrial and commercial power distribution requirements.
- Non-Fusible Disconnect Design: Intended for use with external overcurrent protection devices.
- Three-Pole Configuration: Designed for three-phase or three-wire power systems.
- NEMA 1 Painted Steel Enclosure: Provides durable protection for indoor electrical installations.
- Heavy-Duty DT Series Construction: Engineered for long service life in demanding environments.
- UL and cUL Approved: Complies with recognized safety and performance standards.
The DT325UGK delivers the reliability and precision required for safe power isolation and manual source transfer in industrial electrical systems.
