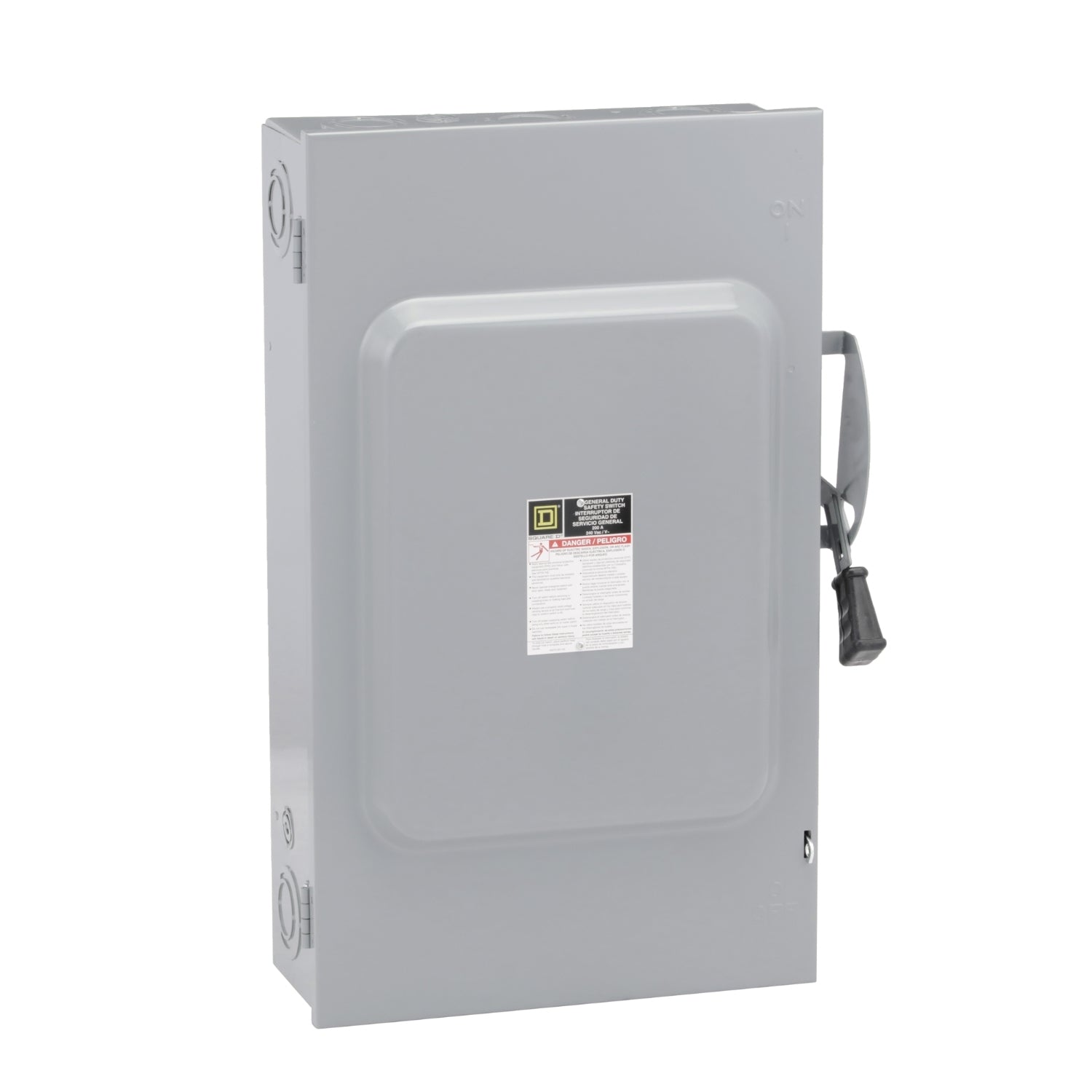

DU324 | Schneider Electric Safety Switch, General Duty
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DU324
Description
The DU324 is a General Duty Safety Switch designed for residential and commercial applications prioritizing durability and cost-effectiveness. It is commonly utilized for lighting, air conditioning, and appliances. When equipped with a factory-installed neutral assembly or field-installed service grounding kit, it can serve as service equipment. This safety switch is UL Listed and meets or exceeds NEMA Standard KS1.
This Single Throw Safety Switch has a rated current of 200A and offers NEMA 1 degree of protection. It is a non-fusible disconnect switch without a neutral. Featuring 3 poles, it operates at 240VAC and has a short circuit rating of 100kA. The switch is surface-mounted and equipped with lugs for electrical connections compatible with AWG 6/250 kcmil aluminum/copper wiring.
Technical Specifications
|
Part # |
DU324 |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Single Throw Safety Switch |
|
|
Duty Rating |
General duty |
|
Device Application |
Residential |
|
Disconnect Type |
Non-fusible disconnect switch |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
200 A |
|
Voltage Rating |
240 V AC |
|
Enclosure Rating NEMA |
NEMA 1 |
|
Motor power hp |
15 hp at 240 V AC 60 Hz for 1 phase motors |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring configuration |
3-wire |
|
Wire Size |
AWG 6...250 kcmil aluminium/copper |
|
Tightening torque |
275 lbf.in (31.07 N.m) (AWG 6...250 kcmil) |
|
Depth |
8.25 in (209.55 mm) |
|
Width |
19 in (482.60 mm) |
|
Height |
29 in (736.60 mm) |
|
Net Weight |
52.01 lb(US) (23.59 kg) |
Information About DU324
General duty safety switches such as the DU324 are engineered for both residential and commercial applications, emphasizing durability and cost-effectiveness. These switches are commonly employed for various loads including lighting, air conditioning, and household appliances. They can serve as service equipment when outfitted with either a factory-installed neutral assembly or a field-installed service grounding kit, where applicable. General duty safety switches bear the UL® Listing and conform to or surpass the NEMA® Standard KS1.
The DU324 is a Single Throw Safety Switch featuring a rated current of 200A and offering NEMA 1 degree of protection. As a non-fusible disconnect switch, it lacks a neutral terminal. With a configuration of 3 poles, it operates at 240VAC and possesses a short circuit rating of 100kA. This switch is designed for surface mounting.
Electrical connections on the DU324 are facilitated by lugs, capable of accepting AWG 6/250 kcmil aluminum/copper wiring. Certified to UL standards, this switch boasts dimensions of 29 inches in height, 19 inches in width, and 8.25 inches in depth.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
