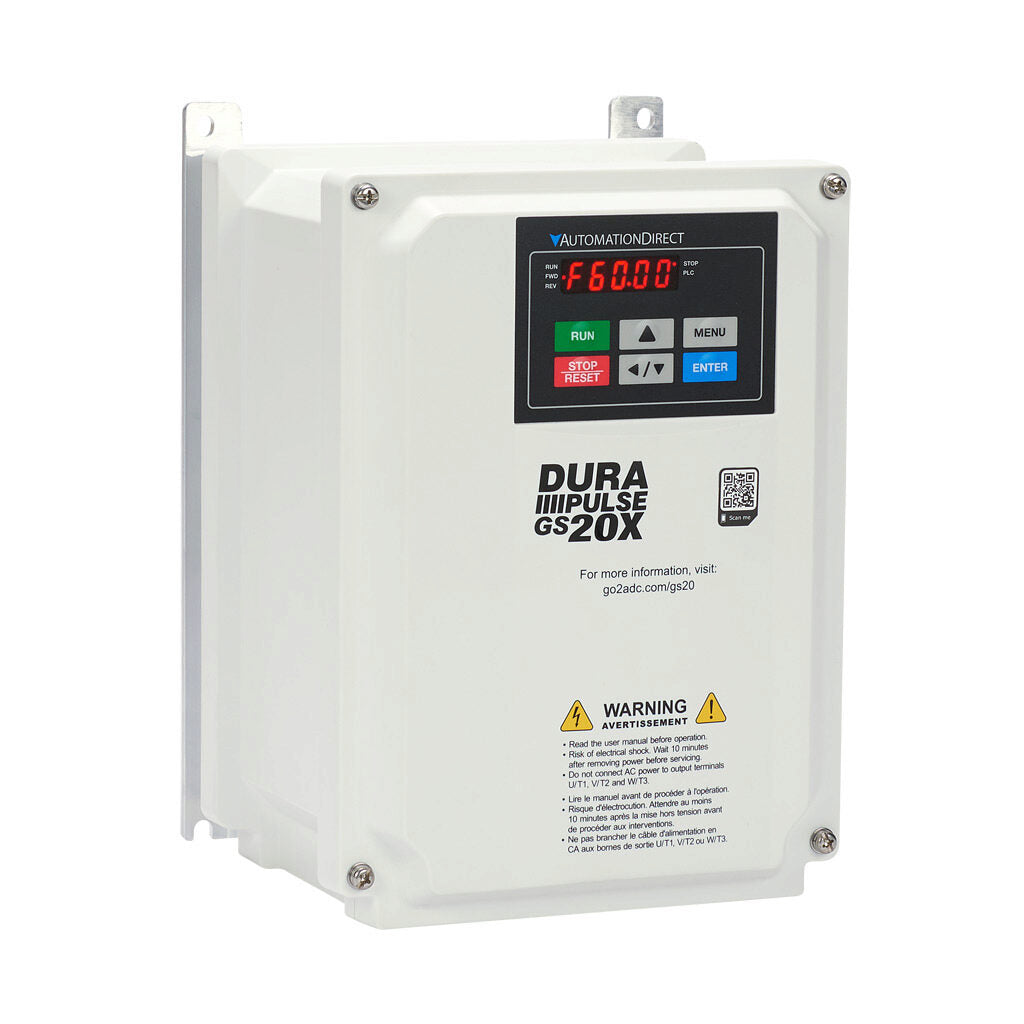

GS21X-21P0 | DURApulse GS20X 230VAC 1HP NEMA 4X AC Drive
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GS21X-21P0
Description
The DURApulse GS21X-21P0 is a GS20X series AC general purpose drive rated for 230 VAC operation with 1 hp output using single-phase input. It supports SVC, V/Hz, FOC, and torque control modes to manage 3-phase induction and permanent magnet AC motors. Housed in a NEMA 4X/IP66 enclosure, it is designed for reliable motor control in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | DURApulse |
| Category | Drives |
| Part Number | GS21X-21P0 |
| Subcategory | Drive |
| Series | GS20X |
| Controller Type | General purpose AC drive |
| Nominal Input Voltage | 230 VAC |
| Nominal Output Voltage | 230 VAC |
| Input Phases | 1 |
| Output Phases | 3 |
| Horsepower Rating | 1 hp (1-phase input) |
| Amperage Rating | 4.8 A |
| Variable Torque Current | 5 A |
| Control Modes | SVC, V/Hz, FOC, Torque |
| Enclosure Type | NEMA 4X |
| IP Rating | IP66 |
| Frame Size | A |
| Mounting | Panel or wall |
| Dynamic Braking | Integrated |
| Safe Torque Off (STO) | Yes |
| Carrier Frequency Range | 2–15 kHz |
| Output Frequency Range | 0.1–599 Hz |
| Communication Ports | RS-485 (RJ45), USB B |
| Supported Protocols | Modbus RTU Slave, Modbus ASCII Slave |
| Analog Inputs | 2 (current/voltage, 10-bit/12-bit resolution) |
| Analog Outputs | 1 (current/voltage, 10-bit resolution) |
| Discrete Inputs | 7 (24 VDC, sinking/sourcing) |
| Discrete Outputs | 3 (relay/sinking/sourcing) |
| Relay Configuration | 1 Form C (SPDT) |
| Operating Temperature | -20 to 40 °C |
| For Use With | 3-phase induction and permanent magnet AC motors |
| Weight | 7.3 lbs |
Information About GS21X-21P0
The GS21X-21P0 is a DURApulse GS20X series variable frequency drive built in an A frame size for panel or wall mounting applications. It converts 230 VAC single-phase input into 230 VAC three-phase output and provides integrated dynamic braking and Safe Torque Off (STO) functionality. The drive includes RS-485 (RJ45) and USB B communication ports supporting Modbus RTU and Modbus ASCII protocols at speeds up to 115.2k baud. Designed for industrial use, it features multiple analog and discrete I/O channels, PWM output control, and optional EtherNet/IP or Modbus TCP expansion capability.
Key Features:
-
1 HP Single-Phase Input Rating: Operates on 230 VAC single-phase input with 3-phase output for motor control.
-
Multiple Control Modes: Supports SVC, V/Hz, FOC, and torque control for flexible application requirements.
-
NEMA 4X / IP66 Enclosure: Suitable for washdown and harsh industrial environments.
-
Integrated Dynamic Braking: Provides controlled deceleration without external braking modules.
-
Safe Torque Off (STO): Enhances safety by removing motor torque without disconnecting power.
-
Built-In Communications: Includes RS-485 and USB ports with Modbus RTU and ASCII support.
-
Extensive I/O Configuration: Offers analog and discrete inputs and outputs for system integration.
-
Wide Frequency Range: Adjustable output frequency from 0.1 to 599 Hz with 2–15 kHz carrier range.
The GS21X-21P0 delivers the reliability and precision required for industrial motor speed control and automation systems.
