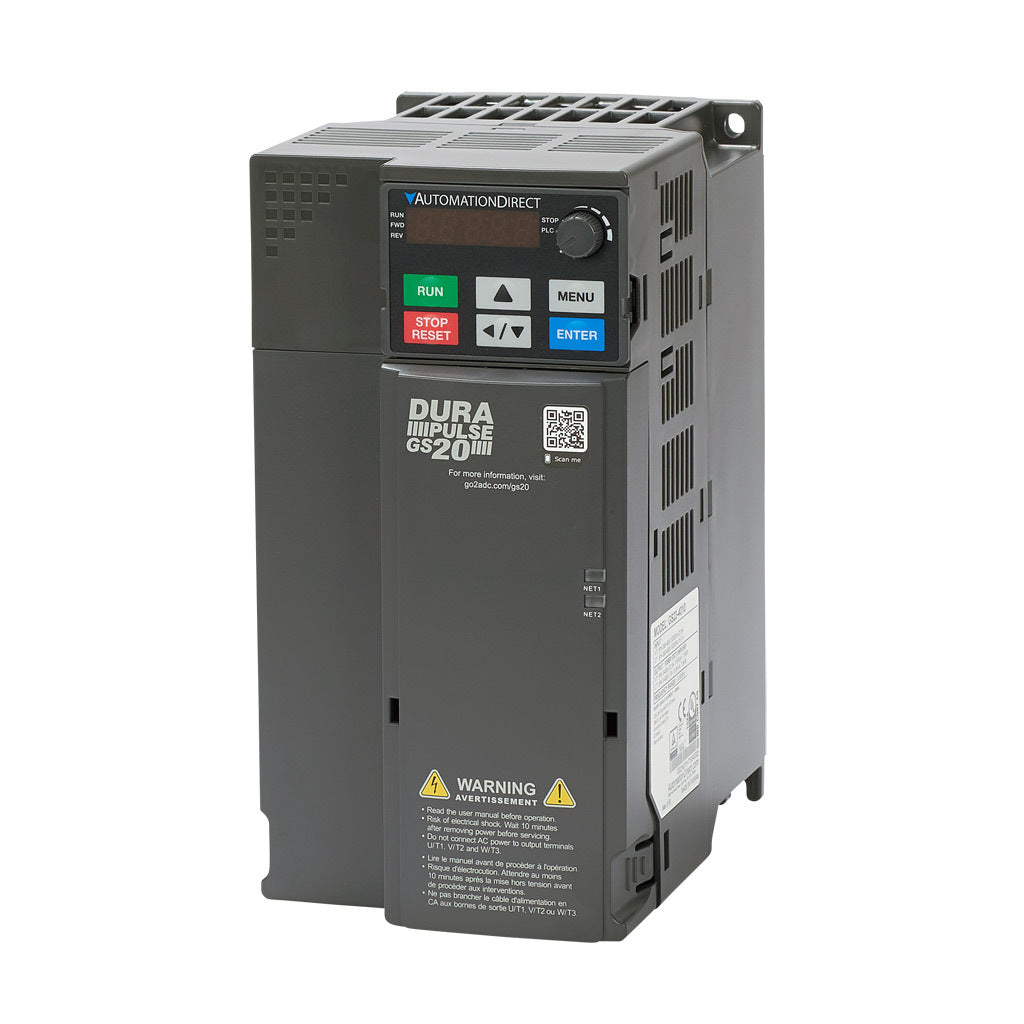

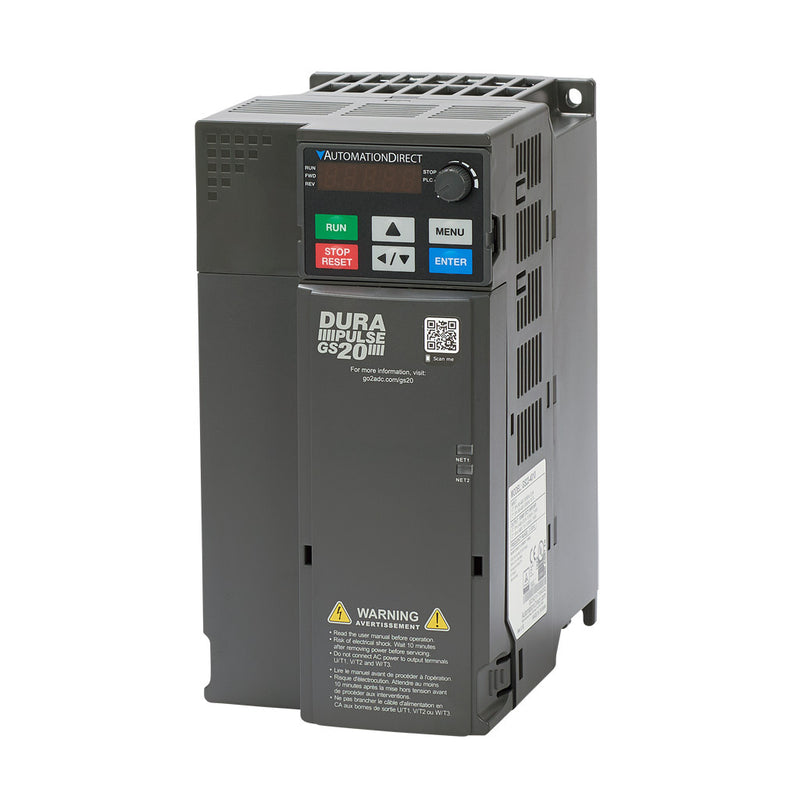

GS23-4010 | DURApulse 10HP 460VAC GS20 Series VFD Drive
- Regular price
- $1,082.00
- Sale price
- $1,082.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GS23-4010
Description
The DURApulse GS23-4010 is a 10 HP AC general purpose drive designed for 460 VAC three-phase motor control applications. It supports SVC, V/Hz, FOC, and torque control modes to provide flexible performance across industrial systems. The enclosed IP20 design with integrated dynamic braking makes it suitable for panel-mounted automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | DURApulse |
| Category | Drives |
| Part Number | GS23-4010 |
| Subcategory | Drive |
| Series | GS20 |
| Nominal Input Voltage | 460 VAC |
| Number of Input Phases | 3 |
| Number of Output Phases | 3 |
| Horsepower Rating | 10 HP (3-phase input) |
| Amperage Rating | 17 A |
| Variable Torque Amperage Rating | 20.5 A |
| Control Modes | SVC, V/Hz, FOC, Torque |
| Output Frequency Range | 0.1 – 599 Hz |
| Carrier Frequency Range | 2 – 15 kHz |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |
| Frame Size | D |
| Dynamic Braking | Integrated |
| Safe Torque Off (STO) | Yes |
| Communication Ports | RS-485 (RJ45), USB B |
| Protocols | Modbus RTU Slave, Modbus ASCII Slave |
| Weight | 3.53 lbs |
Information About GS23-4010
The GS23-4010 belongs to the DURApulse GS20 series of variable frequency drives engineered for precise speed and torque control of three-phase induction and permanent magnet motors. It operates with a 460 VAC three-phase input and delivers a PWM-controlled three-phase output for accurate motor regulation. The drive includes Safe Torque Off (STO) functionality and integrated dynamic braking to enhance safety and controlled deceleration. Communication is handled through an RS-485 port supporting Modbus RTU and ASCII protocols, with optional EtherNet/IP and Modbus TCP expansion modules available.
Key Features:
-
10 HP Rating: Designed for 460 VAC three-phase motor applications.
-
Multiple Control Modes: Supports SVC, V/Hz, FOC, and torque control.
-
Integrated Dynamic Braking: Provides controlled stopping without external modules.
-
Safe Torque Off (STO): Built-in safety function for compliant machine integration.
-
Wide Frequency Range: Output frequency adjustable from 0.1 to 599 Hz.
-
Flexible I/O Configuration: Includes analog, discrete, and relay outputs for system integration.
-
RS-485 Communication: Supports Modbus RTU and ASCII protocols.
-
Optional Network Expansion: EtherNet/IP and Modbus TCP cards available.
The GS23-4010 delivers the reliability and precision required for industrial motor speed control and automation drive systems.
