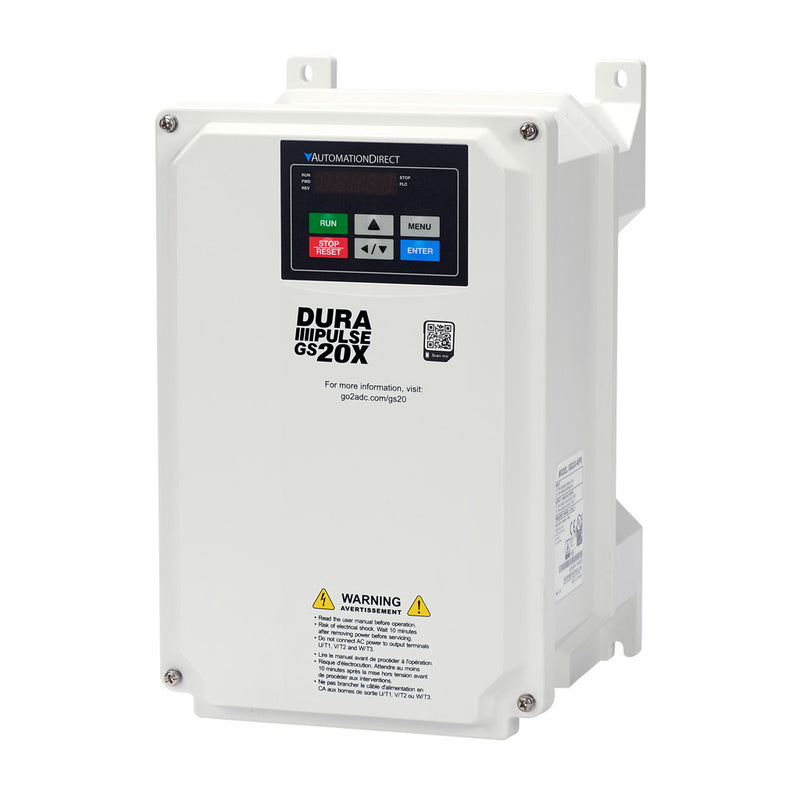

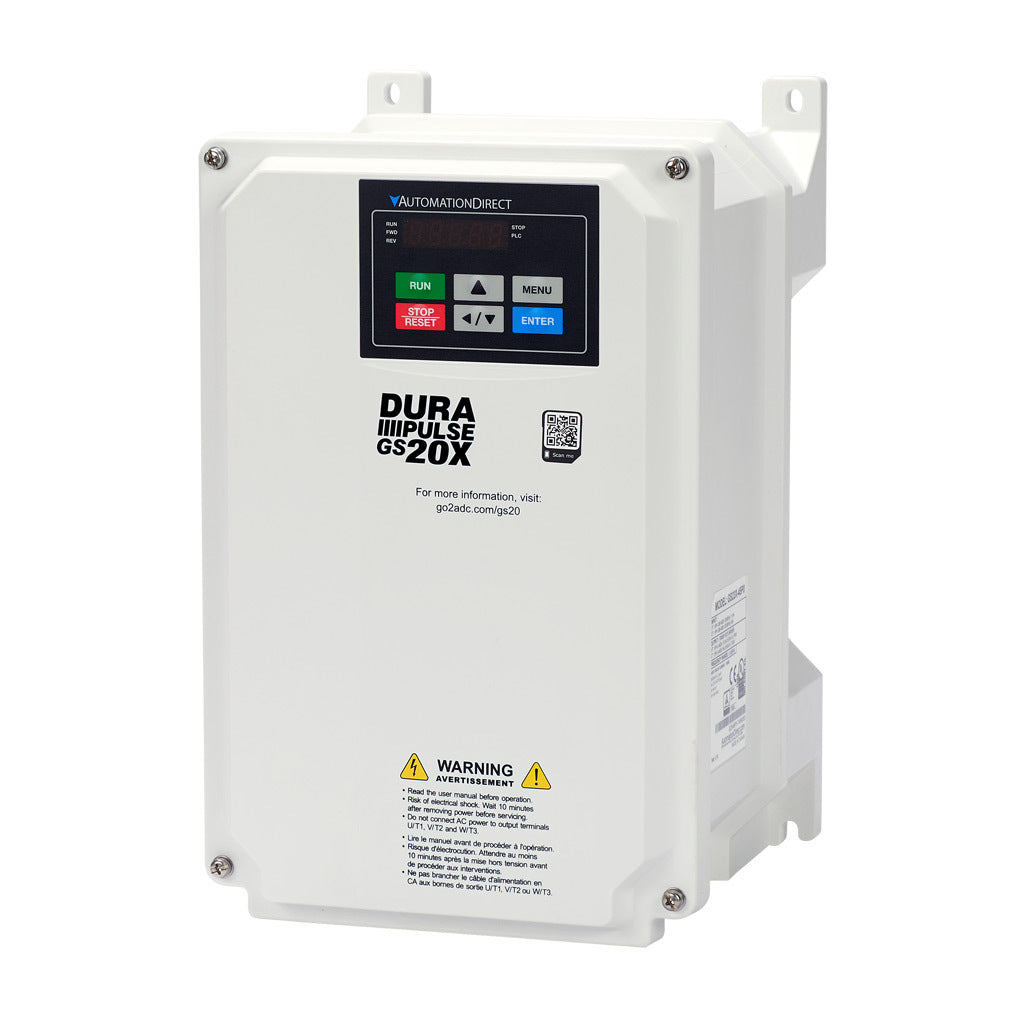

GS23X-45P0 | DURApulse 5HP 460VAC NEMA 4X VFD Drive
- Regular price
- $1,242.00
- Sale price
- $1,242.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GS23X-45P0
Description
The DURApulse GS23X-45P0 is a 5 HP AC general purpose drive designed for 460 VAC three-phase industrial motor control applications. It supports SVC, V/Hz, FOC, and torque control modes, providing flexible performance for induction and permanent magnet motors. Housed in a NEMA 4X/IP66 enclosure, the drive is suitable for harsh industrial environments with integrated dynamic braking.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | DURApulse |
| Category | Drives |
| Part Number | GS23X-45P0 |
| Subcategory | Drive |
| Series | GS20X |
| Nominal Input Voltage | 460 VAC |
| Number of Input Phases | 3 |
| Number of Output Phases | 3 |
| Horsepower Rating | 5 HP (3-phase input) |
| Amperage Rating | 9 A |
| Variable Torque Amperage Rating | 10.5 A |
| Control Modes | SVC, V/Hz, FOC, Torque |
| Output Frequency Range | 0.1 – 599 Hz |
| Carrier Frequency Range | 2 – 15 kHz |
| Enclosure Type | NEMA 4X |
| IP Rating | IP66 |
| Dynamic Braking | Integrated |
| Safe Torque Off (STO) | Yes |
| Communication Ports | RS-485 (RJ45), USB B |
| Protocols | Modbus RTU Slave, Modbus ASCII Slave |
| Weight | 9.85 lbs |
Information About GS23X-45P0
The GS23X-45P0 is part of the DURApulse GS20X series of variable frequency drives engineered for advanced motor control and environmental protection. It operates on a 460 VAC three-phase input and delivers three-phase PWM output for precise speed and torque regulation. The drive includes Safe Torque Off (STO) functionality and integrated dynamic braking for controlled deceleration. Designed for panel or wall mounting, it features RS-485 communication with Modbus RTU and ASCII protocols, with optional EtherNet/IP and Modbus TCP expansion capability.
Key Features:
-
5 HP Rating: Designed for 460 VAC three-phase motor applications.
-
Multiple Control Modes: Supports SVC, V/Hz, FOC, and torque control operation.
-
NEMA 4X / IP66 Enclosure: Suitable for washdown and harsh industrial environments.
-
Integrated Dynamic Braking: Provides controlled motor stopping without external modules.
-
Safe Torque Off (STO): Integrated safety function for compliant machine design.
-
Flexible I/O Configuration: Includes analog, discrete, and relay I/O for system integration.
-
RS-485 Communication: Supports Modbus RTU and ASCII protocols.
-
Optional Network Expansion: Compatible with EtherNet/IP and Modbus TCP communication cards.
The GS23X-45P0 delivers the reliability and precision required for industrial motor speed control and automation drive systems.
