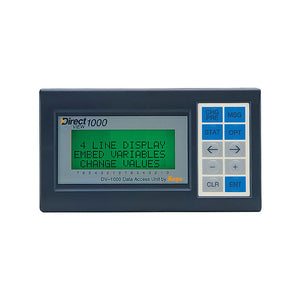

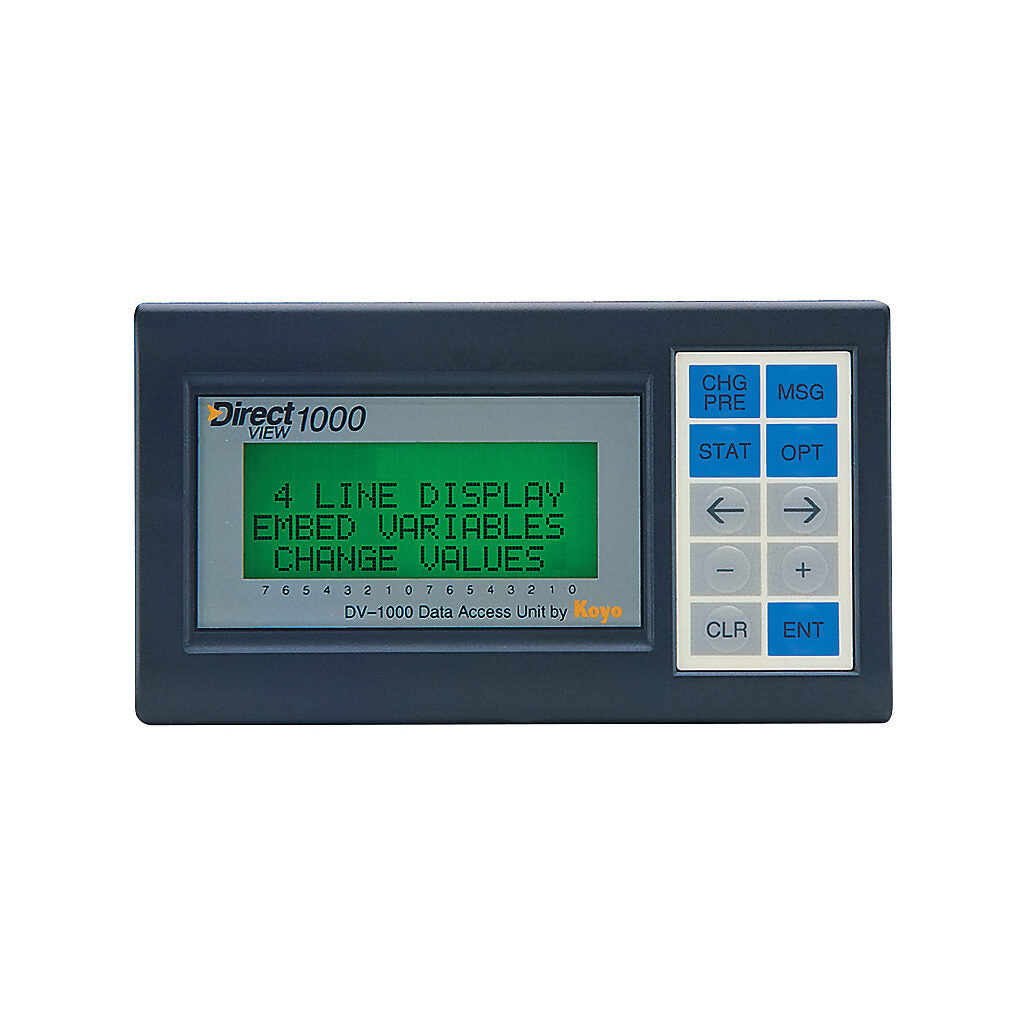

DV-1000 | Automation Direct DirectVIEW 4x16 LCD Timer/Counter Access Panel
- Regular price
- $1,487.00
- Sale price
- $1,487.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DV-1000
Description
The Automation Direct DV-1000 is a DirectVIEW 1000 timer/counter access panel designed for operator interaction with DirectLogic PLC systems. It features a 4-line by 16-character backlit LCD display and 10 predefined function keys for parameter entry and status monitoring. This panel provides a compact interface for viewing and modifying timers, counters, and system data through a serial connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Human Machine Interface (HMI) |
| Part Number | DV-1000 |
| Subcategory | Access Panels |
| Series | DirectVIEW |
| Display Type | LCD |
| Display Format | 4 Lines x 16 Characters |
| Character Type | 5x7 Dot Matrix |
| Backlit | Yes |
| Number of Keys | 10 Predefined Function Keys |
| Communication Ports | (1) Serial Port |
| Compatible Systems | DL105, DL205, DL350, DL405 |
| Supported CPUs | DL130, DL230, DL240, DL250, DL350, DL430, DL440, DL450 |
| Status Display Data Types | X, Y, GX, C, SP, T, CT, S |
| Dimensions | 5.12" x 2.83" x 1.03" |
| Manual Code | D-24VIEW-M |
| Weight | 0.6 lb |
Information About DV-1000
The DV-1000 is part of the Automation Direct DirectVIEW series, developed to provide structured operator access to PLC data without requiring a full HMI system. It uses a 5x7 LCD dot matrix display with four lines of sixteen characters for clear presentation of status and numeric values. The unit supports one serial communication port and is compatible with DL105, DL205, DL350, and DL405 systems, as well as CPUs including DL130, DL230, DL240, DL250, DL350, DL430, DL440, and DL450. Designed for panel mounting, it allows operators to monitor and adjust data types such as X, Y, GX, C, SP, T, CT, and S within supported DirectLogic platforms.
Key Features:
- 4 x 16 Character LCD Display: Provides structured viewing of PLC status and data values.
- 5x7 Dot Matrix Character Format: Ensures clear alphanumeric representation.
- Backlit Screen: Improves readability in industrial control panel environments.
- 10 Predefined Function Keys: Allows direct access to timers, counters, and programmable data.
- Single Serial Port Support: Enables communication with compatible DirectLogic PLC systems.
- Wide CPU Compatibility: Supports DL130, DL230, DL240, DL250, DL350, DL430, DL440, and DL450 CPUs.
- Multiple System Integration: Compatible with DL105, DL205, DL350, and DL405 PLC systems.
- Status Data Monitoring: Displays and edits data types including X, Y, GX, C, SP, T, CT, and S.
The DV-1000 delivers the reliability and precision required for structured timer, counter, and PLC data access in DirectLogic automation systems.
