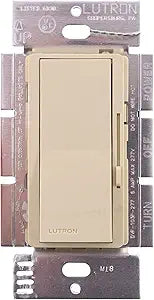

DVF-103P-277-IV | Lutron Diva 277V 6A Fluorescent Preset Dimmer Ivory
- Regular price
- $177.00
- Sale price
- $177.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DVF-103P-277-IV
Description
The Lutron DVF-103P-277-IV is a Diva® preset fluorescent dimmer designed for 277 V lighting systems. It supports single-pole and 3-way configurations with a maximum capacity of 6 A and is compatible with select Lutron 3-wire electronic dimming ballasts and LED drivers. The large paddle switch with integrated linear slide control enables precise light level adjustment in commercial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting |
| Part Number | DVF-103P-277-IV |
| Subcategory | Lighting Controller |
| Series | Diva® |
| Load Type | Fluorescent / Compatible LED |
| Voltage Rating | 277 V AC |
| Frequency | 60 Hz |
| Maximum Capacity | 6 A (1000 W) |
| Operation | Single Pole / 3-Way |
| Control Type | Large Paddle Switch with Linear Slide Dimmer |
| Start Type | Preset |
| Wiring Requirement | Neutral Required |
| Mounting Type | Wall Mount |
| Number of Poles | 1 |
| Material | Plastic |
| Finish | Gloss |
| Dimensions | 4.69 in H x 2.94 in W x 1.31 in D |
| Operating Temperature | 0 to 40 °C |
| Standards & Approvals | UL Listed, CSA, NOM Certified |
| Color | Ivory |
| Weight | 0.08 lb |
Information About DVF-103P-277-IV
The DVF-103P-277-IV is part of the Lutron Diva® series and is engineered for use with 3-wire line-voltage control fluorescent ballasts and compatible LED drivers. It operates at 277 VAC, 60 Hz and requires a neutral wire connection for proper installation. The device features a preset dimming function that allows users to return lights to a previously selected level after switching off. Designed for standard decorator-style wallbox openings, it fits designer wallplates and does not require derating when ganged with other controls.
Key Features:
-
277 V Operation: Designed for commercial-grade 277 VAC lighting systems.
-
6 Amp Capacity: Supports up to 1000 W maximum load.
-
Preset Dimming Control: Returns to previous light level after power interruption.
-
Large Paddle with Slide Dimmer: Combines on/off switching with fine linear dimming adjustment.
-
Fluorescent and LED Compatibility: Works with Hi-Lume®, Eco-10®, EcoSystem®, Compact SE, and compatible LED drivers.
-
Single-Pole / 3-Way Wiring: Supports standard single-pole and multi-location installations.
-
No Derating When Ganged: Maintains full capacity when installed with adjacent devices.
-
Adjustable Low-End Trim: Allows fine-tuning of minimum light level.
-
Soft Locator Light: Illuminated in the off position for visibility in dark spaces.
The DVF-103P-277-IV delivers the reliability and precision required for commercial fluorescent and LED dimming applications.
